Ronda fixed type hand oil pump

FOB Price

US $100.001 - 40,000 set

US $30.0040,001 - 999,999 set

group name: CENTRIFUGAL/VANE OIL PUMP

Min Order: 1 set

brand name: RONDA

model: DYB

Nearest port for product export: Ningbo, Shanghai

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, DAF, DES

Acceptable payment methods: T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Mon, 17 Mar 2014 15:20:12 GMT

contact supplier

Paramtents

Theory Reciprocating Pump
Structure Piston Pump
Usage Oil
Standard or Nonstandard Standard
Pressure Low Pressure
Application Oil
Operating method Hand

Packging & Delivery

Min Order1 set

Briefing

Hand oil pump manufactured by Ronda has reliable performance, which is widely used in small oil tank, oil plants, power station

Detailed

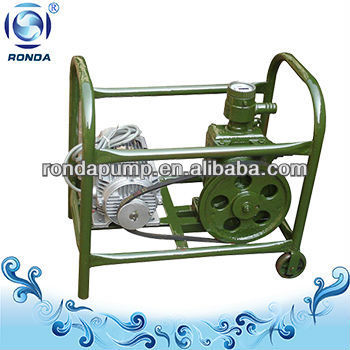

Fixed type hand oil pump

Hand oil pump fixed type manufactured by Ronda has reliable performance, which is widely used in small oil tank, oil plants, power station, chemical plants, etc.
This pump has very compact structure, small weight, easy operation, convenient to move. It needs to be operated by only one many. There's continuous oil discharged from outlet by operating.This pump is equipped with vetical type flowmeter YL-25.(25mm)(May get back to 0),A oil gun may be connected to the hose.

Performance
1. Caliber: 25mm;(Hose inner diameter:25mm)
2. Tolerance of guage: +2%
3. Max. pressure: 2Bar
4. Travel of plunger:90mm;
5. Plunger diameter:100mm;
6. Allowed discharge head: 15-20m;
7. Allowed suction head:4-5m;
8. Travel times: 35-45Times/Min
9. Flow range:35-55L/m;
10. Weight: 20kgs;

Performance

1. Caliber: 25mm;(Hose inner diameter:25mm)

2. Tolerance of guage: +2%

3. Max. pressure: 2Bar

4. Travel of plunger:90mm;

5. Plunger diameter:100mm;

6. Allowed discharge head: 15-20m;

7. Allowed suction head:4-5m;

8. Travel times: 35-45Times/Min

9. Flow range:35-55L/m;

10. Weight: 20kgs;

Ronda fixed type hand oil pump
