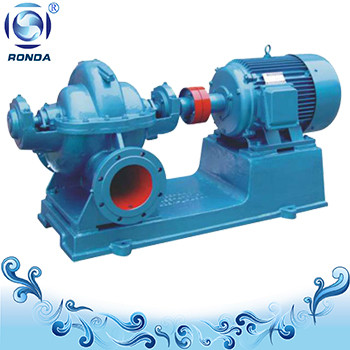

Big flow split casing pump

FOB Price: US $2500.01 - 999999 set

group name: CENTRIFUGAL WATER PUMP

Min Order: 1 set

brand name: RONDA

model: SH OS

Nearest port for product export: Ningbo, Shanghai

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, DAF, DES

Acceptable payment methods: T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Fri, 22 Nov 2024 09:45:20 GMT

contact supplier

Paramtents

working condition continuous
working environment in or out door
Frequency voltage can be changed or not yes
Material by clients yes

Packging & Delivery

Min Order1 set

Briefing

split casing pump has split case strcuture, it's easy to maintenance.

Detailed

Split casing pump S SH OS

Split casing pump S SH pump is double suction pump with high flowrate. Casing is split type, which brings convenience for maintenance. This pump is widely used in big flowrate area like mines, power stations, etc.

Material can be cast iron, stainless steel and bronze.

Pump is with high efficiency and stable performance.

Working Principle:	Impeller, Split case
Main applications:	Water
Driver:	Electric motor, Diesel Motor
Power Specs:	380/415 V 3phase; 50hz/60hz etc.
Max. permissible fluid temperature:	80°C
Type of connection:	Flange
Installation position:	Horizontal
Casing/Inner parts material:	Cast iron, Stainless Steel/Cast iron, Stainless steel, Bronze
Shaft seal type:	Mechanical seal
Free passage:	1mm
Maximum gravity:	1.1
Maximum drive rating:	1600kW (2148hp)
Maximum caliber:	32 inch (800mm)
Maximum dischrage head:	125m
Flow rate range:	80-6500 m³/h (1333.3-108333.3l/m)

Below specifications are based on 380V/50HZ, for other standard, pls contact us directly.

Model	Capacity	Head	Speed	Power	Efficiency
Model	m³/h	m	r/min	kW	%	m
6SH-6	162	78	2950	55	74	5
6SH-6A	144	62	2950	37	72	5
6SH-9	180	46	2950	37	79	5
6SH-9A	162	40	2950	30	75	5
8SH-6	234	97	2950	110	75	4.5
8SH-9	288	62.5	2950	75	79	4.5
8SH-9A	270	47	2950	55	76	5
8SH-13	288	42	2950	55	82	3.6
8SH-13A	270	36	2950	15	80	4.2
10SH-6	486	65.1	1450	132	74	5.5
10SH-6A	368	54	1450	110	75	6
10SH-9	486	38.5	1450	75	81	6
10SH-9A	468	30.5	1450	75	80	6
10SH-13	486	23.5	1450	55	86	6
10SH-13A	414	20.3	1450	37	83	6
10SH-19	486	14	1450	30	82	6
10SH-19A	432	11	1450	22	82	6
12SH-6	792	90	1450	300	77.5	4.5
12SH-6A	756	78	1450	260	74	4.5
12SH-6B	720	67	1450	230	73	4.5
12SH-9	792	58	1450	190	83.5	4.5
12SH-9A	720	49	1450	160	83	4.5
12SH-9B	684	43	1450	132	82	4.5
12SH-13	792	32.2	1450	110	83.5	4.5
12SH-13A	720	26	1450	75	82.5	4.5
12SH-19	792	19.4	1450	55	82	4.5
12SH-19A	720	16	1450	45	82	4.5
12SH-28	792	12	1450	37	81	4.5
14SH-6	1250	125	1450	680	74.5	5
14SH-6A	1180	112	1450	570	74	5
14SH-6B	1100	96	1450	500	74	3.5
14SH-9	1260	75	1450	410	80	3.5
14SH-9A	1080	55	1450	260	78	3.5
14SH-9B	1080	55	1450	260	78	3.5
14SH-13	1260	42	1450	230	84	3.5
14SH-13A	1116	37	1450	190	84	3.5
14SH-19	1260	26	1450	132	88	3.5
14SH-19A	1116	21.5	1450	90	85	3.5
14SH-28	1260	15.1	1450	75	81	3.5
20SH-6	2016	98.4	970	850	79.2	4
20SH-6A	1870	85	970	650	77	4
20SH-9	2016	59	970	520	83	4
20SH-9A	1910	50	970	380	75	4
20SH-9B	1763	42	970	310	74	4
20SH-13	2016	35.1	970	280	88	4
20SH-13A	1870	31	970	220	85	4
20SH-19	2016	22	970	190	82	4
20SH-19A	1870	17	970	132	76	4
20SH-28	2016	12.8	970	110	80	4
24SH-9	3420	71	970	780	91	1.3
24SH-9A	3168	61	970	680	90	2.5
24SH-13	3168	47.4	970	550	88	2.5
24SH-19	3168	32	970	380	89	2.5
24SH-19A	2880	27	970	280	89	2.5
24SH-28	2880	21	970	220	84.5	2.5
32SH-19	6010	29	730	625	84	3.5
32SH-19A	5800	26.5	730	500	84	3.5
48SH-22	11000	26	485	1150	87	3.7
48SH-22A	10000	18.5	485	710	86	4.1
