heavy duty multistage pump up to 10 inch

FOB Price: US $3000.01 - 999999 set

group name: CENTRIFUGAL WATER PUMP

Min Order: 1 set

brand name: RONDA

Nearest port for product export: Ningbo, Shanghai

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, DAF, DES

Acceptable payment methods: T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Fri, 22 Nov 2024 09:00:06 GMT

contact supplier

Paramtents

Material by clients yes
frequency can be changed or not yes
voltage can be changed or not yes
working condition continuous
duty heavy

Packging & Delivery

Min Order1 set

Briefing

heavy duty multistage pump is a horizontal water pump which is widely used in mines, power stations, chemical plants, etc.

Detailed

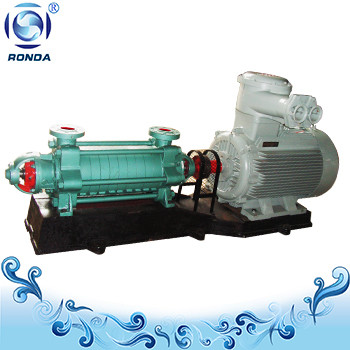

Heavy duty multistage pump

Multistage pump D is centrifugal pump with big flow and head, this pump is widely used in mines, power station, etc. Heavy duty design. Power may be 380V, or 660V, 6000V, etc.

Working Principle:	Centrifugal, Multi-stage
Main applications:	Water
Driver:	Electric motor
Power Specs:	380/415 V 3phase; 50hz/60hz etc.
Max. permissible fluid temperature:	80°C /150°C /100°C
Type of connection:	Flange
Installation position:	Horizontal
Casing/Inner parts material:	Cast iron /Cast iron
Shaft seal type:	Mechanical seal; Packing gland
Free passage:	0.1 mm
Maximum gravity:	1.03
Maximum drive rating:	1600kW (2148hp)
Maximum caliber:	10 inch (250mm)
Maximum dischrage head:	594m
Flow rate range:	3-900 m³/h (50-15000l/m)
