2CY gear type lube pump
- FOB Price
US $1000.001 - 999,999 set
- group name
- GEAR/ROTOR OIL PUMP
- Min Order
- 1 set
- brand name
- RONDA
- model
- 2CY
- Nearest port for product export
- Ningbo, Shanghai
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Fri, 26 Jul 2013 09:02:12 GMT
Paramtents
Frequency can be changed or not yes
Material by clients yes
Voltage can be changed or not yes
Working duty heavy
working condition continuous
working environment in or out door
Packging & Delivery
-
Min Order1 set
Briefing
Detailed
Lube pump

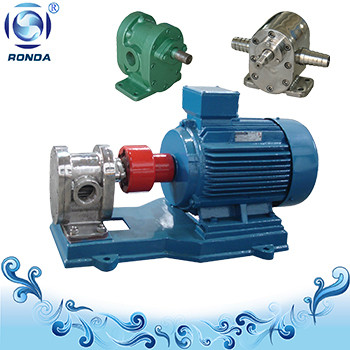

2CY Gear Oil Pump
2CY gear pump is for oil or equivalent liquid without solids and fiber with normal temperature below 300°C. It is mainly used as oil delivering pump or boost pump in oil system. Stainless and bronze models are able to pump special oil like gasoline.
2CY has small type and big type. Caliber above 2 inch may be equipped with relief valve.
Above model is big size with relief valve.
| Working Principle: | Double Gears |
| Main applications: | Oil |
| Driver: | Electric motor, diesel motor. |
| Power Specs: | 380/415 V 3phase; 220/240 V 1phase; 50hz/60hz,etc |
| Max. permissible fluid temperature: | 80 °C/300°C |
| Type of connection: | Flange, Thread, Quick Coupled. |
| Installation position: | Horizontal |
| Casing/Inner parts material: | Cast iron, Stainless Steel/Cast iron, Stainless steel, Bronze |
| Shaft seal type: | Shaft seal ring; Mechanical seal; Packing Seal |
| Free passage: | 00 mm |
| Maximum viscosity: | 5X104CST |
| Maximum drive rating: | 75 kW 100hp |
| Maximum caliber: | 3 inch (80mm) |
| Maximum discharge-side pressure: | 2.0mpa (20bar) |
| Flow rate range: | 1.1-150 m³/h (18.3-2500l/m) |
Below performance table is based on 380v/50hz.. In other voltage and frequency, the parameter will be different, pls contact us for that!
Some table is too long, we only show part of them here.
Model | Capacity | Speed | Discharge pressure | NPSHr | Efficiency | Motor | ||
m3/h | L/min | Power KW | Model | |||||
2CY-1.08/2.5 | 1.08 | 18 | 1420 | 2.5 | 9.5 | 58 | 2.2 | Y100L1-4 |
2CY-2.1/2.5 | 2.1 | 35 | 1420 | 2.5 | 9.5 | 58 | 3 | Y100L2-4 |
2CY-3/2.5 | 3 | 50 | 1440 | 2.5 | 9.5 | 59 | 4 | Y112M-4 |
2CY-4.2/2.5 | 4.2 | 70 | 1440 | 2.5 | 9.5 | 59 | 5.5 | Y132S-4 |
2CY-7.5/2.5 | 7.5 | 125 | 1440 | 2.5 | 9.5 | 63 | 7.5 | Y132M-4 |
2CY-12/2.5 | 12 | 200 | 1460 | 2.5 | 9.5 | 63 | 15 | Y160L-4 |
