Fuel pump Gear type big size

FOB Price: US $2500.001 - 999,999 set

group name: GEAR/ROTOR OIL PUMP

Min Order: 1 set

brand name: RONDA

model: KCB 2CY

Nearest port for product export: Ningbo, Shanghai

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, DAF, DES

Acceptable payment methods: T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Fri, 26 Jul 2013 08:27:25 GMT

contact supplier

Paramtents

working duty heavy
Material by clients yes
Voltage and frequency by clients yes

Packging & Delivery

Min Order1 set

Briefing

fuel pump KCB is a most common oil pump. It's widely used for a variety of oils. Eg: diesel, gasoline,crude oil,lubrication...

Detailed

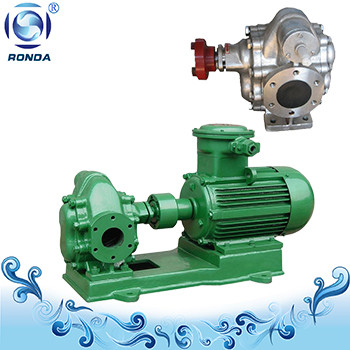

Fuel Pump KCB type big size

Gear oil pump is for fuel oil or equivalent liquid without solids and fiber with normal temperature below 80°C, (high temperature model below 300°C). It is mainly used as oil delivering pump or boost pump in oil system or plants.

Stainless and bronze models are able to pump speical oil like gasoline.

Working Principle:	Double Gears
Main applications:	fuel oil
Driver:	Electric motor, diesel motor.
Power Specs:	380/415 V 3phase; 220/240 V 1phase; 50hz/60hz,etc
Max. permissible fluid temperature:	80 °C/300°C
Type of connection:	Flange, Thread, Quick Coupled.
Installation position:	Horizontal
Casing/Inner parts material:	Cast iron, Stainless Steel/Cast iron, Stainless steel, Bronze
Shaft seal type:	Shaft seal ring; Mechanical seal; Packing Seal
Free passage:	00 mm
Maximum viscosity:	5X10⁴CST
Maximum drive rating:	250 kW 335hp
Maximum caliber:	12 inch (300mm)
Maximum discharge-side pressure:	1.45mpa (14.5bar)
Flow rate range:	1.1-570 m³/h (18.3-9500l/m)
