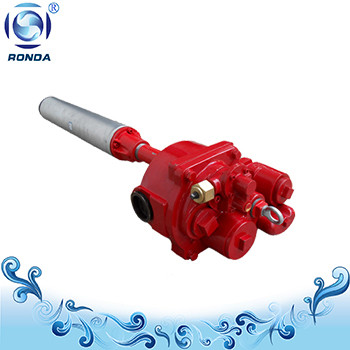

QYB Submersible oil pump

FOB Price: US $500.001 - 999,999 set

group name: GEAR/ROTOR OIL PUMP

Min Order: 1 set

brand name: RONDA

model: QYB

Nearest port for product export: Ningbo, Shanghai

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, DAF, DES

Acceptable payment methods: T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Tue, 23 Jul 2013 15:55:11 GMT

contact supplier

Paramtents

Duty heavy

Packging & Delivery

Min Order1 set

Briefing

Submersible oil pump connected to several nozzles at the same time. It is widely used in refueling machine, fuel oil dispenser.

Detailed

QYB Submersible oil pump connected to several nozzles at the same time, it is widely used in refueling machine, fuel oil dispenser.

QYB submersible oil pump is with same function as selfpriming pump. It has stable performance and long time service with lower noise. Pump is easey to install and service. There are check valve, switch, relief valve (overflow valve), vacuum valve in pump. One pump can connect to several oil meter at the same time. The transfering distance is much longer than normal selfpriming pump.

Fix method	BSP/NPT 4"
Inlet size:	1 1/2"
Outlet size:	2"
Max. Flow:	200L/M, 240L/M
Power:	1.1kW 1.5kW
Voltage:	220V, 50hz
Speed:	2820rpm
Pressure:	0.1Mpa
Ex-proof class	IP56
Adjustable pressure range:	21KPa-207KPa
Working pressure:	≥34KPa
