Stainless steel self priming monoblock pump
- FOB Price
US $400.01 - 999999 set
- group name
- CENTRIFUGAL WATER PUMP
- Min Order
- 1 set
- brand name
- RONDA
- model
- LQFZ
- Nearest port for product export
- Ningbo, Shanghai
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Fri, 22 Nov 2024 15:31:09 GMT
Paramtents
Frequency,voltage can be changed or not yes
Working condition continuous
Working environment in door
Packging & Delivery
-
Min Order1 set
Briefing
Detailed

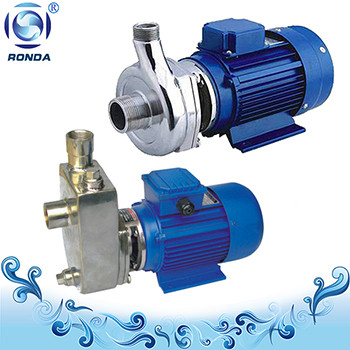

Monoblock pump
LQF LQFZ pump is stainless steel monoblock small size pump. Compact structure and small size brings you convenience. Bracket type reaches 105°C
LQFZ is self priming type which brings you more convenience.
| Working Principle: | Centrifugal, Monoblock, Self priming |
| Main applications: | Water, Chemical |
| Driver: | Electric motor |
| Power Specs: | 380/415 V 3phase; 220/240 V 1phase; 50hz/60hz |
| Max. permissible fluid temperature: | 90°C/105°C |
| Type of connection: | Flange, Thread |
| Installation position: | Horizontal |
| Casing/Inner parts material: | Stainless steel/ Stainless steel |
| Shaft seal type: | Mechanical seal |
| Free passage: | 0.2 mm |
| Maximum gravity: | 1.1 |
| Maximum drive rating: | 3kW (4hp) |
| Maximum caliber: | 2 inch (50mm) |
| Maximum head: | 30m |
| Flow rate range: | 0.8-31 m³/h (13.3-517 l/m) |
Below specifications is based on 380V/50HZ, and 220V/50HZ. For any other standard, pls contact us directly.
3phase | 1phase | Caliber | Caliber(mm) | Eff. | Head H(m) Capacity Q(m3/h) | NPSHr | ||||||||||
Inlet | Outlet | |||||||||||||||
25LQFZ-8 | 25LQFZ-8B | 0.25 | 25 | 25 | 40 | H | 9 | 8 | 7 | 6 | 5 | 4 | 3 |
|
| 4 |
Q | 2.3 | 3 | 3.5 | 4.3 | 4.8 | 5.2 | 5.5 |
|
| |||||||
25LQFZ-13 | 25LQFZ-13B | 0.55 | 25 | 25 | 40 | H | 16 | 15 | 14 | 13 | 12 | 10 | 8 | 6 | 4 | 5 |
Q | 3 | 4 | 4.8 | 6 | 6.5 | 7.5 | 8.5 | 9.5 | 10 | |||||||
40LQFZ-18 | 40LQFZ-18B | 1.5 | 40 | 40 | 49 | H | 21 | 20 | 19 | 18 | 16 | 14 | 12 | 10 | 8 | 5 |
Q | 6 | 7 | 8.5 | 10 | 12 | 14 | 15.5 | 17.3 | 18.5 | |||||||
50LQFZ-22 |
| 3 | 50 | 50 | 50 | H | 28 | 26 | 25 | 24 | 22 | 20 | 18 | 16 | 14 | 5 |
