Multistage deep well pump
- FOB Price
US $1000.01 - 999999 set
- group name
- CENTRIFUGAL WATER PUMP
- Min Order
- 1 set
- brand name
- RONDA
- model
- QJ-P
- Nearest port for product export
- Ningbo, Shanghai
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Sun, 29 Dec 2024 11:16:40 GMT
Paramtents
Material available SS/CI
Duty Heavy
Packging & Delivery
-
Min Order1 set
Briefing

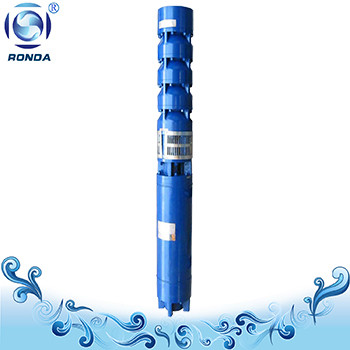

Deep well pump in multistages.Up to 90kW, 125mm caliber, Head up to 588m, made of cast iron.
Detailed
Deep Well Pump for water
QJ pump is vertical multi-stage centrifugal pump submerged in water for water supply from pool or deep well. Heavy duty, continuous working.
Pump size is vertical, so whole pump may be submerged in water of small size well. Big size gets very big capacity and head.
| Working Principle: | Centrifugal, Multi-stage |
| Main applications: | Water |
| Driver: | Electric motor |
| Power Specs: | 380/415 V 3phase; 50hz/60hz |
| Max. permissible fluid temperature: | 80°C |
| Type of connection: | Flange |
| Installation position: | Vertical |
| Casing/Inner parts material: | Cast iron /Cast iron |
| Shaft seal type: | Mechanical seal |
| Free passage: | 0.1 mm |
| Maximum gravity: | 1.03 |
| Maximum drive rating: | 90kW (120hp) |
| Maximum caliber: | 5inch (125mm) |
| Maximum dischrage head: | 588m |
| Flow rate range: | 10-125 m³/h (167-2083l/m) |
