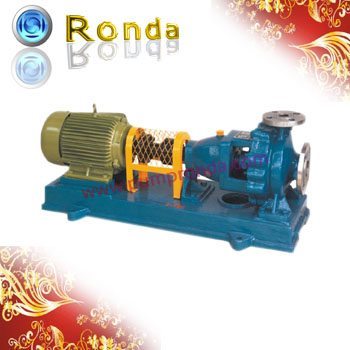

Single stage single suction centrifugal end suction pump

FOB Price: US $1000.01 - 999999 set

group name: CENTRIFUGAL WATER PUMP

Min Order: 1 set

brand name: RONDA

model: IS

Nearest port for product export: Ningbo, Shanghai

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, DAF, DES

Acceptable payment methods: T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Fri, 27 Dec 2024 13:37:10 GMT

contact supplier

Paramtents

working principle centrifugal

Packging & Delivery

Min Order1 set

Briefing

Single stage single suction centrifugal pump is widely used for water. We have IR model for hot water below 150°C.

Detailed

Single stage single suction centrifugal end suction pump

IS end suction pump is a single stage single suction fan cooling centrifugal pump. It widely used in water supply system with better performance. We have IR model for hot water below 150°C.

Working Principle: Centrifugal
Main applications: Water
Driver: Electric motor
Power Specs: 380/415 V 3phase; 50hz/60hz etc.
Max. permissible fluid temperature: 80°C /150°C
Type of connection: Flange
Installation position: Horizontal
Casing/Inner parts material: Cast iron, Stainless Steel/Cast iron, Stainless steel, Bronze
Shaft seal type: Mechanical seal
Free passage: 0.0 mm
Maximum gravity: 1.1
Maximum drive rating: 110kW (148hp)
Maximum caliber: 8 inch (200mm)
Maximum head: 125m
Flow rate range: 6.3-400 m³/h (105-6667l/m)

Model Capacity Head Power Efficiency
Inlet-Outlet-Impeller dia. 　　　　
(mm)(mm)(mm) (m 3 /h) (m) (KW) (%)
50-32-125 12.5 20 2.2 60
50-32-125 6.3 5 0.55 54
50-32-160 12.5 32 3 54
50-32-160 6.3 8 0.55 48
50-32-200 12.5 50 5.5 48
50-32-200 6.3 12.5 0.75 42
50-32-250 12.5 80 11 38
50-32-250 6.3 20 1.5 32
65-50-125 25 20 3 69
65-50-125 12.5 50 0.55 64
65-50-160 25 32 0.5 65
65-50-160 12.5 5 0.75 60
65-40-200 25 50 7.5 60
65-40-200 12.5 12.5 1.1 55
65-40-250 25 80 15 50
65-40-250 12.5 20 2.2 46
80-65-125 50 20 5.5 75
80-65-125 25 5 0.75 71
80-65-160 50 32 7.5 73
80-65-160 25 8 1.5 69
8050-200 50 50 15 69
80-50-200 25 12.5 2.2 65
80-50-250 50 80 22 63
80-50-250 25 20 3 60
80-50-315 50 125 37 54
80-50-315 25 32 5.5 52
100-80-125 100 20 11 78
100-80-125 50 5 1.5 75
100-80-160 100 32 15 78
100-80-160 50 8 2.2 75
100-65-200 100 50 22 76
100-65-200 50 12.5 4 73
100-65-250 100 80 37 72
100-65-250 50 20 5.5 69
100-65-315 100 125 75 66
100-65-315 50 32 11 63
125-100-200 200 50 45 81
125-100-200 100 12.5 7.5 76
125-100-250 200 80 75 78
125-100-250 100 20 11 76
125-100-315 100 32 15 73
125-100-400 100 50 30 65
150-125-250 200 20 18.5 81
150-125-315 200 32 30 79
200-150-250 400 20 37 79
200-150-315 400 32 45 79
200-150-400 400 50 75 77
