Vertical pipeline pump LQ

FOB Price: US $500.001 - 999,999 set

group name: CENTRIFUGAL WATER PUMP

Min Order: 1 set

brand name: RONDA

model: LQ

Nearest port for product export: Ningbo, Shanghai

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, DAF, DES

Acceptable payment methods: T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Tue, 24 Sep 2013 08:38:56 GMT

contact supplier

Paramtents

working principle centrifugal single stage
installation way vertical

Packging & Delivery

Min Order1 set

Briefing

Vertical pipeline pump LQ is with the most advanced international design model with high efficiency.

Detailed

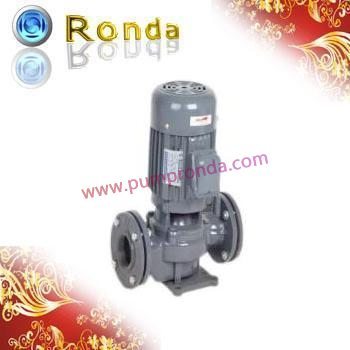

Vertical pipeline pump LQ

LQ Vertical inline pump is with the most advanced international design model with high efficiency. One shaft connecting, small size. It is the main exporting model.

LQ is vertical model.

Working Principle: Centrifugal
Main applications: Water
Driver: Electric motor
Power Specs: 380/415 V 3phase; 220/240 V 1phase; 50hz/60hz
Max. permissible fluid temperature: 80°C
Type of connection: Flange
Installation position: Vertical
Casing/Inner parts material: Cast iron /Cast iron
Shaft seal type: Mechanical seal
Free passage: 00 mm
Maximum gravity: 1.1
Maximum drive rating: 7.5 kW (10hp)
Maximum caliber: 4 inch (100mm)
Maximum head: 28m
Flow rate range: 6.6-66 m³/h (110-1100l/m)

Model Power Flow Rate Head Speed Cooling Max Cooling Min Outlet Dia. Current Y/△(5hp and over with 380V)
KW HP l/min m r/min Ton Ton mm/inch A
LQ-32 0.37 0.5 120 12 2850 5 10 32or1.25 0.89
LQ-40 0.75 1 210 15.5 2850 15 20 40or1.5 2
LQ-50 1.5 2 295 18.5 2850 25 30 50or2 3
LQ-65 2.25 3 475 20.5 2850 40 50 65or2.5 5
LQ-80 3.75 5 800 23 2850 60 80 80or3 8
LQ-100-7.5 5.5 7.5 1100 25 2850 80 100 100or4 11.1
LQ-100-10 7.5 10 1450 27 2850 100 125 100or4 15
