High viscosity internal gear pump
- FOB Price
US $2,000.001 - 40,000 set
US $200.0040,001 - 999,999 set
- group name
- GEAR/ROTOR OIL PUMP
- Min Order
- 1 set
- brand name
- RONDA
- model
- NYP
- Nearest port for product export
- Ningbo, Shanghai
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Mon, 17 Mar 2014 14:51:04 GMT
Paramtents
Theory Rotary Pump
Structure Gear Pump
Usage Oil
Power Electric
Standard or Nonstandard Standard
Fuel Electric
Pressure High Pressure
Voltage can be changed or not Yes
Working duty Heavy
Working condition continuous
Working environment Out or in door
Frequency can be changed or not Yes
Material by clients Yes
Packging & Delivery
-
Min Order1 set
Briefing
Internal gear pump NYP is speical for heavy oil, or high viscosity oil. Also can be work as a normal oil supplying pump.
Detailed
Internal Gear Pump

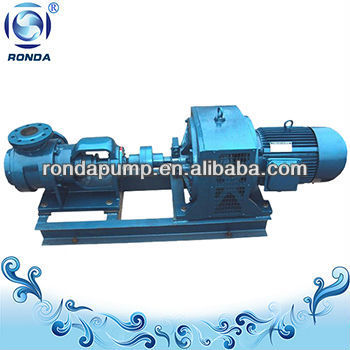

NYP High Viscosity Internal Gear Oil Pump
NYP series internal gear pump is for high viscosity oil. This pump is widely used in petroleum, foodstuff, medicine and othe chemical industries. Viscosity reaches 300,000CST, and the temperature reaches 200°C
| Working Principle: | Internal Gear |
| Main applications: | Oil |
| Driver: | Electric motor, diesel motor. |
| Power Specs: | 380/415 V 3phase; 50hz/60hz, etc |
| Max. permissible fluid temperature: | 200°C |
| Type of connection: | Flange, Thread, Quick Coupled, etc |
| Installation position: | Horizontal |
| Casing/Inner parts material: | Cast iron, Stainless Steel/Cast iron, Stainless steel, Bronze |
| Shaft seal type: | Shaft seal ring; Mechanical seal; Packing Seal |
| Free passage: | 00 mm |
| Maximum viscosity: | 30X104CST |
| Maximum drive rating: | 100 kW (135kw) |
| Maximum caliber: | 8 inch (200mm ) |
| Maximum discharge-side pressure: | 1.0mpa (10bar) |
| Flow rate range: | 0.3-216 m³/h (5-3600l/m) |
Below performance table is based on 380v/50hz.. In other voltage and frequency, the parameter will be different, pls contact us for that!
Some table is too long, we only show part of them here.
| Model | Capacity | Discharge pressure | Inlet&outlet | NPSHr | Efficieny | Reducer model | |||
| m3/h | Mpa | (inch/mm) | m | % | Power | Speed | Reducer | ||
| KW | r/min | ||||||||
| NYP3/1.0 | 2 | 1 | Rp11/2 | 5 | 45 | 3 | 587 | YCJ71 | |
| NYP10/1.0 | 6 | 1.3 | Rp2 | 5 | 45 | 7.5 | 228 | YCJ112 | |
| 8 | 1 | Rp2 | 5 | 45 | 7.5 | 303 | YCJ100 | ||
| 10 | 1 | Rp2 | 5 | 51 | 7.5 | 357 | YCJ100 | ||
| 12 | 1 | Rp2 | 5 | 54 | 7.5 | 475 | YCJ100 | ||
| NYP30/1.0 | 18 | 1 | 80 | 5 | 54 | 15 | 305 | YCJ112 | |
| 22 | 1 | 80 | 5 | 58 | 15 | 359 | YCJ112 | ||
| 28 | 1 | 80 | 5 | 65 | 15 | 479 | YCJ112 | ||
| NYP50/1.0 | 50 | 1 | 150 | 5 | 52 | 37 | 128 | YCJ315 | |
| 80 | 1 | 150 | 5 | 58 | 45 | 208 | YCJ355 | ||
| 100 | 1 | 150 | 5 | 65 | 55 | 253 | YCJ355 | ||
| NYP3/1.0 | 1.5 | 1 | Rp11/2 | 5 | 43 | 3 | 480 | Belt pulley | |
| 2 | 1 | Rp11/2 | 5 | 43 | 3 | 640 | Belt pulley | ||
| NYP10/1.0 | 8 | 1 | Rp2 | 5 | 43 | 7.5 | 303 | Belt pulley | |
| 10 | 1 | Rp2 | 5 | 49 | 7.5 | 357 | Belt pulley | ||
| 12 | 1 | Rp2 | 5 | 51 | 7.5 | 475 | Belt pulley | ||
| NYP3/1.0 | 3 | 1 | Rp11/2 | 5 | 55 | 3 | 960 | Y132S-6 Monoblcok | |
