China lube oil transfer gear pump
- FOB Price
US $5,000.001 - 40,000 set
US $100.0040,001 - 999,999 set
- group name
- GEAR/ROTOR OIL PUMP
- Min Order
- 1 set
- brand name
- RONDA
- model
- KCB
- Nearest port for product export
- Ningbo, Shanghai
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Mon, 17 Mar 2014 15:04:08 GMT
Paramtents
Theory Rotary Pump
Structure Gear Pump
Usage Oil
Power Electric
Standard or Nonstandard Standard
Fuel Electric
Pressure Low Pressure
Application Oil
Packging & Delivery
-
Min Order1 set
Briefing
2.Deliver non-corrosive oil
3.Designed with safety valve
4.Many kinds of materials
Detailed

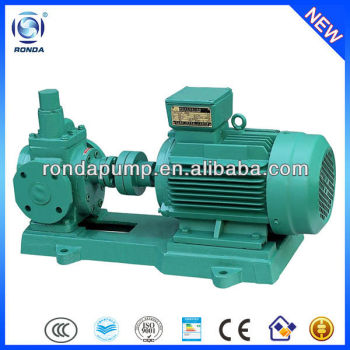

China lube oil transfer gear pump
1. Introduction:
1. China lube oil transfer gear pump manufactured by RONDA is simple and compact structure, easy operation.
2. Pump is capable of delivering non-corrosive oil without solid particles and fiber, such as lube, heavy oil, industry light oil, cooking oil, etc.
3. By adopting bronze gears, it is capable of pumping fluid with low-flash point such as gasoline, benzene, etc.
5. It’s broadly used in oil depots, docks, ships, plants, farms, mines, etc.
2. Products details:
| Working Principle: | Double Gears |
| Main applications: | Oil |
| Driver: | Electric motor, diesel motor. |
| Power Specs: | 380/415V 3phase; 220/240V 1phase;50hz/60hz,etc |
| Max.permissible fluid temperature: | 80°C(176°F)/300°C(572°F) |
| Type of connection: | Flange, Thread, Quick Coupled. |
| Installation position: | Horizontal |
| Casing/Inner parts material: | Cast iron, Stainless Steel/Cast iron, Stainless steel, Bronze |
| Shaft seal type: | Shaft seal ring; Mechanical seal; Packing Seal |
| Free passage: | 00 mm |
| Maximum viscosity: | 1.5X103CST |
| Maximum drive rating: | 75KW(100HP) |
| Maximum caliber: | 150mm(6inch) |
| Maximum discharge-side pressure: | 1.45Mpa(14.5bar) |
| Flow rate range: | 18.3-2500L/min(4.8-660US.GPM) |
3. Performance data:
| Model | Caliber | Capacity | Pressure | Power |
| (Inch) | (L/min) | (MPa) | (KW) | |
| KCB-18.3 | 3/4" | 18.3 | 1.45 | 1.5 |
| KCB-33.3 | 3/4" | 33.3 | 1.45 | 2.2 |
| KCB-55 | 1" | 55 | 0.33 | 1.5 |
| KCB-55 | 1" | 55 | 0.5 | 2.2 |
| KCB-83.3 | 1 1/2" | 83.3 | 0.33 | 2.2 |
| KCB-83.3 | 1 1/2" | 83.3 | 0.5 | 3 |
| KCB-200 | 2" | 83.3 | 0.33 | 3 |
| KCB-200 | 2" | 200 | 0.33 | 4 |
| KCB-200 | 2" | 200 | 0.33 | 5.5 |
| KCB-200 | 2 1/2" | 200 | 0.33 | 7.5 |
| KCB-300 | 3" | 300 | 0.33 | 5.5 |
| KCB-300 | 3" | 300 | 0.33 | 7.5 |
| KCB-483.3 | 3" | 483.3 | 0.33 | 7.5 |
| KCB-483.3 | 3" | 483.3 | 0.33 | 11 |
| KCB-633 | 4" | 633 | 0.28 | 11 |
| KCB-633 | 4" | 633 | 0.28 | 22 |
| KCB-960 | 4" | 960 | 0.3 | 18.5 |
| KCB-960 | 4" | 960 | 0.3 | 30 |
| KCB-1667 | 6" | 1667 | 0.3 | 30 |
| KCB-1667 | 6" | 1667 | 0.6 | 55 |
| KCB-2000 | 6" | 2000 | 0.3 | 30 |
| KCB-2000 | 6" | 2000 | 0.6 | 55 |
| KCB-2500 | 6" | 2500 | 0.3 | 37 |
| KCB-2500 | 6" | 2500 | 0.7 | 75 |
4. FAQ:
5. Pictures:
Excellent product made of carefully selected high-quality materials:
Many kinds of products can be chosen:
Many kinds of pump heads:
A lot of products in stock:
6. More related products:
