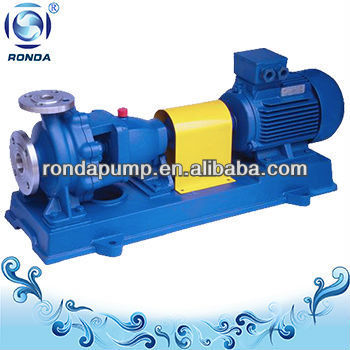

High efficiency single stage API hot oil pump

FOB Price

US $5000.01 - 40000 set

US $100.040001 - 999999 set

group name: CENTRIFUGAL/VANE OIL PUMP

Min Order: 1 set

brand name: RONDA

model: IS

Nearest port for product export: Ningbo, Shanghai

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, DAF, DES

Acceptable payment methods: T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Fri, 22 Nov 2024 04:11:41 GMT

contact supplier

Paramtents

Theory Centrifugal Pump
Structure Single-stage Pump
Usage Oil
Power Electric
Standard or Nonstandard Standard
Fuel Electric
Pressure Middle
Working condition continuous
Working environment in or out door
Duty Heavy
Material by clients Yes

Packging & Delivery

Min Order1 set

Briefing

End suction API hot oil pump IS is an single stage single suction centrifugal oil pump based on API oil pump standard.

Detailed

End suction API hot oil pump

IS is a single stage single suction air-cooling centrifugal pump. It is widely used in oil supply system with better performance. We have IR model for hot oil below 350°C. Pump is based on API standard.

Working Principle:	Centrifugal
Main applications:	Oil
Driver:	Electric motor
Power Specs:	380/415 V 3phase; 50hz/60hz etc.
Max. permissible fluid temperature:	80°C /150°C
Type of connection:	Flange
Installation position:	Horizontal
Casing/Inner parts material:	Cast iron, Stainless Steel/Cast iron, Stainless steel, Bronze
Shaft seal type:	Mechanical seal
Free passage:	0.0 mm
Maximum gravity:	1.1
Maximum drive rating:	110kW (148hp)
Maximum caliber:	8 inch (200mm)
Maximum head:	125m
Flow rate range:	6.3-400 m³/h (105-6667l/m)

Below specifications are based on 380v/50hz, for any other standard, pls contact us directly.

Model	Capacity	Head	Power	Efficiency
Inlet-Outlet-Impeller dia.
(mm)(mm)(mm)	(m 3 /h)	(m)	(KW)	(%)
50-32-125	12.5	20	2.2	60
50-32-125	6.3	5	0.55	54
50-32-160	12.5	32	3	54
50-32-160	6.3	8	0.55	48
50-32-200	12.5	50	5.5	48
50-32-200	6.3	12.5	0.75	42
50-32-250	12.5	80	11	38
50-32-250	6.3	20	1.5	32
65-50-125	25	20	3	69
65-50-125	12.5	50	0.55	64
65-50-160	25	32	0.5	65
65-50-160	12.5	5	0.75	60
65-40-200	25	50	7.5	60
65-40-200	12.5	12.5	1.1	55
65-40-250	25	80	15	50
65-40-250	12.5	20	2.2	46
80-65-125	50	20	5.5	75
80-65-125	25	5	0.75	71
80-65-160	50	32	7.5	73
80-65-160	25	8	1.5	69
8050-200	50	50	15	69
80-50-200	25	12.5	2.2	65
80-50-250	50	80	22	63
80-50-250	25	20	3	60
80-50-315	50	125	37	54
80-50-315	25	32	5.5	52
100-80-125	100	20	11	78
100-80-125	50	5	1.5	75
100-80-160	100	32	15	78
100-80-160	50	8	2.2	75
100-65-200	100	50	22	76
100-65-200	50	12.5	4	73
100-65-250	100	80	37	72
100-65-250	50	20	5.5	69
100-65-315	100	125	75	66
100-65-315	50	32	11	63
125-100-200	200	50	45	81
125-100-200	100	12.5	7.5	76
125-100-250	200	80	75	78
125-100-250	100	20	11	76
125-100-315	100	32	15	73
125-100-400	100	50	30	65
150-125-250	200	20	18.5	81
150-125-315	200	32	30	79
200-150-250	400	20	37	79
200-150-315	400	32	45	79
200-150-400	400	50	75	77
