API asphalt heating hot oil pump

FOB Price

US $5000.01 - 40000 set

US $50.040001 - 999999 set

group name: CENTRIFUGAL/VANE OIL PUMP

Min Order: 1 set

brand name: RONDA

model: DRY

Nearest port for product export: Ningbo, Shanghai

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, DAF, DES

Acceptable payment methods: T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Fri, 22 Nov 2024 04:10:55 GMT

contact supplier

Paramtents

Theory Centrifugal Pump
Structure Single-stage Pump
Usage Oil
Power Electric
Standard or Nonstandard Standard
Fuel Electric, or diesel
Pressure Middle
Application Normal/Hot Oil circulation
Duty Heavy
Voltage can be changed or not Yes
Frequency can be changed or not Yes

Packging & Delivery

Min Order1 set

Briefing

API asphalt heating hot oil pump. This pump is mainly for high temperature oil gets 370 degree.

Detailed

API asphalt heating hot oil pump

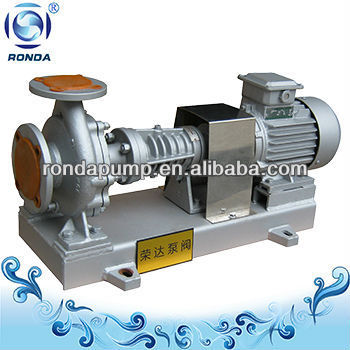

Centrifugal oil pump, DRY is an ideal pump for thermal-conductive oil, or other hot oils. This pump is centrifugal model, temperature reaches 370°C. It is an air-cooling pump with long direct coupled shaft, single stage. It is widely used in heating system of asphalt (bitumen), heavy oil, etc.

API asphalt heating hot oil pump

Working Principle:	Centrifugal impeller
Main applications:	Oil
Driver:	Electric motor, diesel motor.
Power Specs:	380/415 V 3phase; 50hz/60hz etc.
Max. permissible fluid temperature:	370°C
Type of connection:	Flange
Installation position:	Horizontal
Casing/Inner parts material:	Cast iron, Stainless Steel/Cast iron, Stainless steel, Bronze
Shaft seal type:	Shaft seal ring; Mechanical seal; Packing Seal
Free passage:	1 mm
Maximum viscosity:	5X10⁴CST
Maximum drive rating:	132 kW (177hp)
Maximum caliber:	6 inch (150mm)
Maximum head:	85m
Flow rate range:	4.5-400 m³/h (75-6667l/m)

Below specs is based on 380v/50h/3phase/

For specifications on other voltage and frequency, pls contact us directly.

Model	Capacity	Head	Speed	Axial Power	Input power	Efficiency	NPSHr
Model	m3/h	m	r/min	KW	KW	%	m
26-20-100	4.5	15	2900	0.45	0.75	40	0.8
50-32-150	8	22		1	1.5	42	1.6
50-32-160	10	25		1.5	2.2	42	1.8
50-50-150	24	18		3.1	4	46	1.8
50-50-170	12.5	32		3.2	4	45	2.5
65-40-160	12.5	25		2.5	3	45	2.2
65-50-150	50	16		4.2	5.5	52	2.8
65-50-180	32	32		4.5	5.5	52	2.7
65-50-170	40	25		4.5	5.5	52	2.7
65-40-190	18	40		4.5	5.5	52	2.8
65-40-200	25	50		6.7	7.5	63	3.1
80-50-180	40	40		6.7	7.5	63	3.1
80-50-170	60	20		6.7	7.5	63	3.1
100-65-190	60	38		9.2	11	68	3.9
100-65-200	80	40		12.5	15	70	3.5
100-65-210	90	45		15.7	18.5	70	3.6
100-65-220	58	50		12.5	15	68	3.5
100-65-230	58	60		15.5	18.5	62	3.5
100-65-230	100	55		19.5	22	70	3.6
100-65-240	100	70		25.5	30	69.8	4.1
100-65-257	100	80		32.5	37	67	3.6
125-100-190	155	30		20	22	72	3.6
125-100-220	160	45		25.5	37	75.2	3.6
125-80-250	160	60		35.5	45	74.2	5
125-100-245	300	55		61	75	74	7.5
125-100-250	200	60		42.8	55	76.4	6
125-100-260	300	70		75.3	90	78.2	8
125-100-26 5	200	80		59	75	74	6
125-100-257	260	70		64.3	75	77.1	6.8
125-100-270	300	70		75.3	90	78.2	8
125-100-280	260	85		75	90	76	6.8
150-125-250	350	60		75.2	90	76	8.6
150-125-240	400	50		72	90	76	9.8
150-125-270	340	76		89.5	110	78.6	8.5
150-125-250	400	60		88	110	74	9.8
150-125-280	400	78		106	132	80.6	9.8
150-125-280	370	85		106	132	80	9.7
250-200-500	500	80	1450	136	160	76	5
300-250-500	600	80		158	185	70	9
250-200-550	700	80		190	220	81	14
200-200-400	400	50		74	90	81	6.8
200-200 -400A	350	35		61	75	80	6
300-300-300	720	30		75	90	82	6.7
300-300 -300A	600	22		69	90	80	6.5
350-300-300	800	20		63	75	82	6.2
350-300-400	800	50		190	185	83	6.2
400-350-300	1080	20		92	110	78	6
400-350-400	1080	30		112	132	76	6
500-400-300	1400	20		145	160	80	6
