Centrifugal vertical thermal oil pump

FOB Price

US $5000.01 - 40000 set

US $100.040001 - 999999 set

group name: CENTRIFUGAL/VANE OIL PUMP

Min Order: 1 set

brand name: RONDA

model: YGB

Nearest port for product export: Ningbo, Shanghai

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, DAF, DES

Acceptable payment methods: T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Fri, 22 Nov 2024 04:11:14 GMT

contact supplier

Paramtents

Theory Centrifugal Pump
Structure Single-stage Pump
Usage Oil
Power Electric
Standard or Nonstandard Standard
Fuel Electric
Pressure High Pressure
Application Oil
Working environment in or out door
Duty Heavy
Material by clients Yes
Working condition continuous
Voltage, frequency can be changed or not Yes

Packging & Delivery

Min Order1 set

Briefing

Vertical thermal oil pump YGB is a centrifugal oil pump for hot oil with max. temperature of 150 deg.C.

Detailed

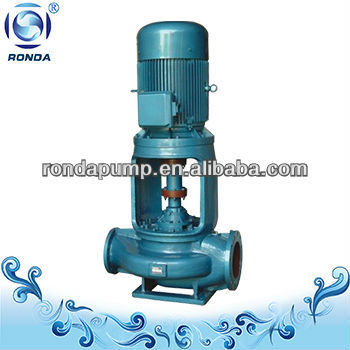

Vertical Thermal Oil pump

YGB vertical oil pump is based on ISG vertical inline pump. This pump has very wide range specifications. It is has centrifugal model. Casing material and impeller material can be according to clients. For normal oil.

Working Principle:	Centrifugal
Main applications:	Water
Driver:	Electric motor
Power Specs:	380/415 V 3phase; 50hz/60hz etc.
Max. permissible fluid temperature:	150°C
Type of connection:	Flange
Installation position:	Vertical
Casing/Inner parts material:	Cast iron, Stainless Steel/Cast iron, Stainless steel, Bronze
Shaft seal type:	Mechanical seal; Packing Seal
Free passage:	0.2 mm
Maximum gravity:	1.1
Maximum drive rating:	160kW (215hp)
Maximum caliber:	20 inch (500mm)
Maximum head:	150m
Flow rate range:	1.5-1500 m³/h (25-25000l/m)

Centrifugal vertical thermal oil pump

Below specifications are based on 380v/50hz, or 220V/50hz. For other standards pls contact us directly.
We only show part of our parameters below, for full specifications, pls contact us.

Model	Capacity		Head	Efficiency	Speed	Power	NPSHr
Model	(m 3 /h)	(l/s)	(m)	(%)	(r/min)	(kw)	(m)
15-80	1.5	0.42	8	34	2800	0.18	2.3
20-110	2.5	0.69	15	34	2800	0.37	2.3
20-160	2.5	0.69	32	25	2900	0.75	2.3
25-110	4	1.11	15	42	2900	0.55	2.3
25-125	4	1.11	20	36	2900	0.75	2.3
25 -125A	3.6	1	16	35	2900	0.55	2.3
......
......
......
40-125(I)A	11	3.05	16	57	2900	1.1	2.3
40-160(I)	12.5	3.47	32	52	2900	3	2.3
40-160(I)A	11.7	3.25	28	51	2900	2.2	2.3
40-160(I)B	10.4	2.89	22	50	2900	1.5	2.3
......
......
......
300-390B	540	150	12.5	77	980	37	5
300-400	600	166	50	78	1480	110	5
300-480	720	200	28	81	980	75	5
300-480A	600	166	24	80	980	75	5
300-480B	540	150	21	79	980	55	5
350-235	800	222	12.5	83	1480	37	4.5
350-300	800	222	20	82	1480	55	4.5
350-315	800	222	32	84	1480	90	4.5
350-400	800	222	50	83	1480	160	4.5
400-300	1080	300	20	78	1480	90	6
400-315	1080	300	32	76	1480	132	6
500-300	1200	333	20	80	1480	110	6
500-315	1200	222	32	78	1480	160	6
