Single stage end suction thermal oil pump

FOB Price

US $5000.01 - 40000 set

US $60.040001 - 999999 set

group name: CENTRIFUGAL/VANE OIL PUMP

Min Order: 1 set

brand name: RONDA

model: RY

Nearest port for product export: Ningbo, Shanghai

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, DAF, DES

Acceptable payment methods: T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Fri, 22 Nov 2024 03:28:46 GMT

contact supplier

Paramtents

Theory Centrifugal Pump
Structure Single-stage Pump
Usage Oil
Power Electric
Standard or Nonstandard Standard
Fuel Diesel
Pressure Low Pressure
Application oil

Packging & Delivery

Min Order1 set

Briefing

1.Single stage end suction thermal oil pump
2.Reasonable structure
3.Long direct coupled shaft
4.Made of cast steel alloy

Detailed

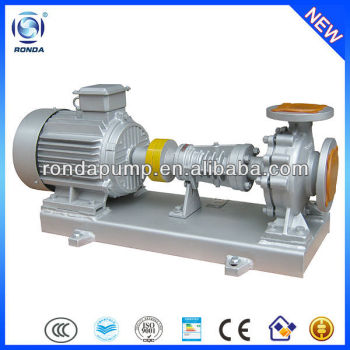

Single stage end suction thermal oil pump

1.Introduction:

1. Single stage end suction thermal oil pump is a new generation product developed by Ronda for high temperature oil ≤370°C(698°F).

2. Simple and reasonable structure gets low operating cost, high efficiency, small volume, low noise and excellent performance in thermal system application.

3. Pump is with long direct coupled shaft, works for high temperature oil with air cooling, while without additional cooling device.

4. Made of high quality cast steel alloy.

2.Product details:

Working Principle:	Centrifugal
Main applications:	Oil
Driver:	Electric motor, diesel motor.
Power Specs:	380/415V 3phase;50hz/60hz
Max.permissible fluid temperature:	370°C(698°F)
Type of connection:	Flange
Installation position:	Horizontal
Casing/Inner parts material:	Cast iron, Stainless steel/Cast iron, Stainless steel, Bronze
Shaft seal type:	Shaft seal ring, Mechanical seal,packing seal
Free passage:	1mm
Maximum viscosity:	5X10⁴C.S.T
Maximum drive rating:	132KW(180HP)
Maximum caliber:	150mm(6inch)
Maximum discharge-side pressure:	0.85Mpa(8.5bar)
Maximum head:	85m(278.8ft)
Flow rate range:	4.5-400m³/h(19.8-1760US.GPM)

3.Performance data:

Model	Capacity	Head	Speed	Power(KW)		Efficiency	NPSH	Motor
Model	(m³/h)	(m)	(r/min)	Shaft	Motor	(%)	(m)	model
DRY26-20-100	4.5	15	2825	0.45	0.75	40	0.8	Y801-2
DRY50-32-150	8	22	2840	1	1.5	42	1.6	Y90S-2
DRY50-32-160	10	25	2840	1.5	2.2	42	1.8	Y90L-2
DRY65-40-160	12.5	25	2880	2.5	3	45	2.2	Y100L-2
DRY50-50-170	12.5	32	2890	3.2	4	45	2.5	Y112M-2
DRY65-50-180	32	32	2900	4.5	5.5	52	2.7	Y132S₁-2
DRY65-50-170	40	25	2900	4.5	5.5	52	2.7	Y13-22S₂-2
DRY80-50-180	40	40	2900	6.7	7.5	63	3.1	Y132S₂-2
DRY80-50-170	60	20	2900	6.7	7.5	63	3.1	Y160M-2
DRY100-65-190	60	38	2930	9.2	11	68	3.9	Y160M₁-2
DRY100-65-200	80	40	2930	12.5	15	70	3.5	Y160M₁-2
DRY100-65-220	58	50	2930	12.5	15	68	3.5	Y160M₁-2
DRY100-65-230	100	55	2940	19.5	22	70	3.6	Y180M-2
DRY125-100-190	155	30	2940	20	22	72	3.6	Y180M-2
DRY100-65-240	100	70	2950	25.5	30	69.8	4.1	Y200L₁-2
DRY100-65-257	100	80	2950	32.5	37	67	3.6	Y200L₂-2
DRY125-100-220	160	45	2950	25.5	37	75.2	3.6	Y200L₂-2
DRY125-80-250	160	60	2970	35.5	45	74.2	5	Y225M-2
DRY125-100-250	200	60	2970	42.8	55	76.8	6	Y250M-2
DRY125-100-257	260	70	2970	64.3	75	77.1	6.8	Y280S-2
DRY125-100-260	300	70	2970	75.3	90	78.2	8	Y280S₁-2
DRY125-100-270	220	85	2970	68	90	76	6	Y280S₁-2
DRY150-l25-270	340	76	2970	89.5	110	78.6	8.5	Y315S-2
DRY150-125-270	400	78	2970	106	132	80.6	9.8	Y315M₁-2

4.FAQ:

5.Pictures:

Excellent product made of carefully selected high-quality materials:

Single stage end suction thermal oil pump

Meticulous details & fine appearance:

Single stage end suction thermal oil pump

Safe packing with standard plywood case:

Single stage end suction thermal oil pump
