Double jacket insulation asphalt transfer pump
- FOB Price
US $5000.01 - 40000 set
US $800.040001 - 999999 set
- group name
- SCREW PUMP
- Min Order
- 1 set
- brand name
- RONDA
- model
- 3G
- Nearest port for product export
- Ningbo, Shanghai
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Thu, 26 Dec 2024 11:58:00 GMT
Paramtents
Theory Rotary Pump
Structure Screw Pump
Usage Bitumen,heavy oil
Power Electric
Standard or Nonstandard Standard
Fuel Electric
Pressure Middle
Application Bitumen,heavy oil
Material by clients Yes
Packging & Delivery
-
Min Order1 set
Briefing
2.design for asphalt
3.double jacket casing can be heated
4.stable pressure
Detailed

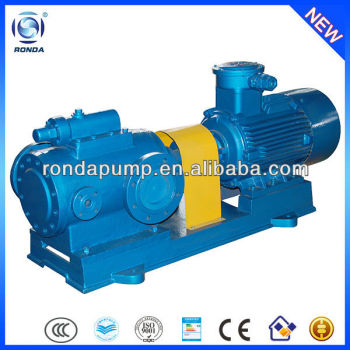

3G Double jacket insulation asphalt transfer pump
1. Introduction:
1.3G double jacket insulation asphalt transfer pump is small pressure fluctuation, stable capacity.
2. It’s special designed for bitumen and heavy oil by RONDA.
3. Pump is with double jacket casing which can be heated by hot steam, thermal oil, etc to reduce the viscosity of fluids with easy solidification.
4. Pump can be made of special material, such as bronze, for liquid with low flashing-point like gasoline.
2. Product details:
| Working Principle: | Three Screw (One main, two driven screws) |
| Main applications: | Heavy Oil, bitumen |
| Driver: | Electric motor, diesel motor. |
| Power Specs: | 380/415V 3phase;50hz/60hz |
| Max.permissible fluid temperature: | 200°C(392°F)/350°C(662°F),Heat insulation |
| Type of connection: | Flange, Thread, Quick Coupled. |
| Installation position: | Horizontal |
| Casing/Inner parts material: | Cast iron, Stainless Steel/Cast iron, Stainless steel, Bronze |
| Shaft seal type: | Mechanical seal |
| Free passage: | 00 mm |
| Maximum viscosity: | 2.5X103C.S.T/3X106C.S.T(Heat insulation) |
| Maximum drive rating: | 90KW(120HP) |
| Maximum caliber: | 200mm(8inch)-in/150mm(6inch)-out |
| Maximum discharge-side pressure: | 6MPa(60bar) |
| Flow rate range: | 0.2-94m3/h(0.88-413.6US.GPM) |
3. Performance data:
| Model | Capacity | Pressure | Speed | Power(KW) | NPSH | Inlet | Outlet | Weight | Motor model | ||
| m3/h | L/min | (bar) | (r/min) | Shaft | Motor | (m) | (mm) | (mm) | (kg) | ||
| power | Power | ||||||||||
| 20×4 | 1 | 16.6 | 10 | 2900 | 0.68 | 0.75 | 6 | 20 | 15 | 8 | 801-2B3 |
| 0.8 | 13.3 | 25 | 1.1 | 1.5 | 90S-2B3 | ||||||
| 0.4 | 6.6 | 10 | 1450 | 0.3 | 0.55 | 6.5 | 801-4B3 | ||||
| 0.3 | 5 | 25 | 0.5 | 0.75 | 802-4B3 | ||||||
| 20×6 | 0.8 | 13.3 | 40 | 2900 | 1.7 | 2.2 | 6 | 20 | 15 | 9 | 90L-2B3 |
| 0.6 | 10 | 60 | 2.7 | 3 | 100L-2B3 | ||||||
| 0.3 | 5 | 40 | 1450 | 0.8 | 1.1 | 6.5 | 90S-4B3 | ||||
| 0.2 | 3.3 | 60 | 1.35 | 1.5 | 90L-4B3 | ||||||
| 25×4 | 2 | 33 | 10 | 2900 | 1.1 | 1.5 | 6 | 25 | 20 | 9 | 90S-2B3 |
| 1.6 | 26 | 25 | 2.2 | 3 | 100L-2B3 | ||||||
| 0.8 | 13 | 10 | 1450 | 0.5 | 0.75 | 6.5 | 802-4B3 | ||||
| 0.6 | 10 | 25 | 1.1 | 1.5 | 90L-4B3 | ||||||
| 25×6 | 1.6 | 26 | 40 | 2900 | 3.4 | 4 | 6 | 25 | 20 | 11 | 112M-2B3 |
| 1.4 | 23 | 60 | 5 | 5.5 | 132S1-2B3 | ||||||
| 0.6 | 10 | 40 | 1450 | 1.6 | 2.2 | 6.5 | 100L1-4B3 | ||||
| 0.4 | 6.6 | 60 | 2.5 | 3 | 100L2-4B3 | ||||||
| 30×4 | 3.6 | 60 | 10 | 2900 | 1.9 | 2.2 | 5.5 | 32 | 25 | 15 | 90L-2B3 |
| 3.2 | 53 | 25 | 3.8 | 4 | 112M-2B3 | ||||||
| 1.6 | 26 | 10 | 1450 | 0.9 | 1.5 | 6 | 90L-4B3 | ||||
| 1.2 | 20 | 25 | 1.9 | 2.2 | 100L1-4B3 | ||||||
| 30×6 | 3.2 | 53 | 40 | 2900 | 5.8 | 7.5 | 5.5 | 32 | 25 | 19 | 132S2-2B3 |
| 2.8 | 46 | 60 | 9.3 | 11 | 160M1-2B3 | ||||||
| 1.2 | 20 | 40 | 1450 | 2.7 | 4 | 6 | 112M-4B3 | ||||
| 0.8 | 13 | 60 | 4.6 | 5.5 | 132S-4B3 | ||||||
| 36×4 | 6.5 | 108 | 10 | 2900 | 3.2 | 4 | 5 | 50 | 40 | 21 | 112M-2B3 |
| 6 | 100 | 25 | 6.2 | 7.5 | 132S2-2B3 | ||||||
| 2.8 | 46 | 10 | 1450 | 1.6 | 2.2 | 5.5 | 100L1-4B3 | ||||
| 2.4 | 40 | 25 | 3.1 | 4 | 112M-4B3 | ||||||
| 36×6A | 6 | 100 | 40 | 2900 | 10 | 15 | 5 | 50 | 40 | 25 | 160M-2B3 |
| 5 | 83 | 60 | 15.5 | 18.5 | 160L-2B3 | ||||||
| 2.4 | 40 | 40 | 1450 | 4.8 | 5.5 | 5.5 | 132S-4B3 | ||||
| 2 | 33 | 60 | 7.7 | 11 | 160M-4B3 | ||||||
| 42×4A | 10.5 | 175 | 10 | 2900 | 4.9 | 5.5 | 4.5 | 65 | 40 | 60 | 132S-2B3 |
| 10 | 166 | 25 | 9.5 | 15 | 160M2-2B3 | ||||||
| 4.8 | 80 | 10 | 1450 | 2.4 | 4 | 5 | 112M-4B3 | ||||
| 4.2 | 70 | 25 | 4.7 | 5.5 | 132S-4B3 | ||||||
| 42×6A | 10 | 166 | 40 | 2900 | 16 | 18.5 | 4.5 | 65 | 40 | 70 | 160L-2B3 |
| 9 | 150 | 60 | 21.5 | 30 | 200L1-2B3 | ||||||
| 4.2 | 70 | 40 | 1450 | 7.5 | 11 | 5 | 160M-4B3 | ||||
| 3.6 | 60 | 60 | 10 | 15 | 160L-4B3 | ||||||
| 50×2 | 17.5 | 291 | 6 | 2900 | 5.2 | 5.5 | 4.5 | 80 | 50 | 80 | 132S1-2B3 |
| 16 | 266 | 10 | 8.1 | 11 | 160M1-2B3 | ||||||
| 8.2 | 136 | 6 | 1450 | 2.6 | 3 | 5 | 100L24B3 | ||||
| 7.5 | 125 | 10 | 4 | 5.5 | 132S-4B3 | ||||||
| 50×4A | 17.5 | 291 | 16 | 2900 | 11.6 | 15 | 4.5 | 80 | 50 | 90 | 160M-2B3 |
| 16 | 266 | 25 | 16.5 | 18.5 | 160L-2B3 | ||||||
| 8.2 | 136 | 16 | 1450 | 5.8 | 7.5 | 5 | 132M-4B3 | ||||
| 7.5 | 125 | 25 | 8.2 | 11 | 160M-4B3 | ||||||
| 70×2 | 24 | 400 | 6 | 1450 | 7 | 11 | 4.5 | 100 | 65 | 105 | 160M4B3 |
| 23 | 383 | 10 | 9.8 | 15 | 160L-4B3 | ||||||
| 15 | 250 | 6 | 970 | 4.8 | 5.5 | 5 | 132M2-6B3 | ||||
| 14 | 233 | 10 | 6.5 | 7.5 | 160M-6B3 | ||||||
| 70×3 | 22 | 365 | 10 | 1450 | 13.8 | 15 | 4 | 80 | 50 | 120 | Y160L-4B3 |
| 22 | 365 | 16 | 16.7 | 18.5 | Y180M-4B3 | ||||||
| 22 | 365 | 25 | 20.5 | 22 | Y180L-4B3 | ||||||
| 70×4 | 24 | 400 | 16 | 1450 | 14 | 18.5 | 4.5 | 100 | 65 | 120 | 180NMB3 |
| 22 | 366 | 25 | 20.5 | 22 | 180L-4B3 | ||||||
| 15 | 250 | 16 | 970 | 7.5 | 11 | 5 | 160L-6B3 | ||||
| 14 | 233 | 25 | 13.5 | 18.5 | 200L1-6B3 | ||||||
| 85×2 | 43 | 716 | 6 | 1450 | 12.5 | 15 | 4.5 | 125 | 80 | 158 | 160L-4B3 |
| 40 | 666 | 10 | 18 | 22 | 180L-4B3 | ||||||
| 28 | 466 | 6 | 970 | 8.5 | 11 | 5 | 160L-6B3 | ||||
| 25 | 416 | 10 | 10 | 15 | 180L-6B3 | ||||||
| 85×4 | 43 | 716 | 16 | 1450 | 25 | 30 | 4.5 | 125 | 80 | 178 | 200L-4B3 |
| 40 | 666 | 25 | 36 | 45 | 225M-4B3 | ||||||
| 28 | 466 | 16 | 970 | 19.5 | 22 | 5 | 200L2-6B3 | ||||
| 25 | 416 | 25 | 25.4 | 30 | 225M-6B3 | ||||||
| 100×2 | 70 | 1166 | 6 | 1450 | 20 | 22 | 4 | 150 | 100 | 200 | 180L-4B3 |
| 68 | 1133 | 10 | 27.7 | 30 | 200L-4B3 | ||||||
| 45 | 750 | 6 | 970 | 13.8 | 15 | 4.5 | 180L-6B3 | ||||
| 43 | 716 | 10 | 18.2 | 22 | 200L2-6B3 | ||||||
| 100×4 | 70 | 1166 | 16 | 1450 | 40 | 55 | 4 | 150 | 100 | 290 | 250M4B3 |
| 68 | 1133 | 25 | 60 | 75 | 280S-4B3 | ||||||
| 45 | 750 | 16 | 970 | 29.5 | 37 | 4.5 | 250M-6B3 | ||||
| 43 | 716 | 25 | 39 | 45 | 280S-6B3 | ||||||
| 110×2 | 94 | 1566 | 6 | 1450 | 23 | 30 | 4 | 200 | 150 | 225 | 200L-4B3 |
| 90 | 1500 | 10 | 34 | 45 | 225M4B3 | ||||||
| 60 | 1000 | 6 | 970 | 17.3 | 18.5 | 4.5 | 200L1-6B3 | ||||
| 56 | 933 | 10 | 27.7 | 30 | 225M-6B3 | ||||||
| 110×4 | 94 | 1566 | 16 | 1450 | 53 | 75 | 4 | 200 | 150 | 325 | 280S-4B3 |
| 90 | 1500 | 25 | 80 | 90 | 280M4B3 | ||||||
| 60 | 1000 | 16 | 970 | 36 | 45 | 4.5 | 280M-6B3 | ||||
| 56 | 933 | 25 | 48 | 55 | 280M-6B3 | ||||||
4. FAQ:
5. Pictures:
Excellent product made of carefully selected high-quality materials:
Meticulous details & fine appearance:
Safe packing with standard plywood case:
Many kinds of models can be chosen:
