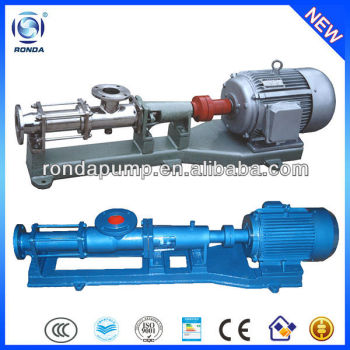

G type rotor single screw pump

FOB Price

US $1000.01 - 40000 set

US $50.040001 - 999999 set

group name: SCREW PUMP

Min Order: 1 set

brand name: RONDA

model: G

Nearest port for product export: Ningbo, Shanghai

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, DAF, DES

Acceptable payment methods: T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Thu, 26 Dec 2024 11:18:01 GMT

contact supplier

Paramtents

Theory Rotary Pump
Structure Screw Pump
Usage Water, slurry, food,ect
Power Electric
Standard or Nonstandard Standard
Fuel Electric
Pressure Low Pressure
Application Water, slurry, food,ect
Material by clients Yes

Packging & Delivery

Min Order1 set

Briefing

1.G type rotor single screw pump
2.Compact,stable flow
3.Could pump high viscosity fluid
4.Made of various material

Detailed

G type rotor single screw pump

1. Introduction:

1. G type rotor single screw pump is compact, small, easy to maintain, well-adapted to medium, stable flow, also with small pressure fluctuation and strong self-priming ability.

2.Pump has metal lined with rubber stator, which is made of various elastic material, such as NBR rubber, Silicon rubber.

3.G type screw pump could pump high viscosity fluid and medium with hard suspended solid/fiber as well.

4.This pump is widely used in construction field, foodstuff and beverage industries by adopting silicon rubber stator.

2. Product details:

Working Principle:	Single Screw, Progressive Cavity
Main applications:	Oil, Slurry, food
Driver:	Electric motor
Power Specs:	380/415V 3phase; 220/240V 1phase;50hz/60hz
Max.permissible fluid temperature:	120°C(248°F)
Type of connection:	Flange
Installation position:	Horizontal
Casing/Inner parts material:	Cast iron, Stainless Steel/Cast iron, Stainless steel, Bronze
Shaft seal type:	Mechanical seal
Free passage:	6mm
Maximum viscosity:	1X10⁶C.S.T
Maximum drive rating:	90KW(120HP)
Maximum caliber:	250mm(10inch)
Maximum discharge-side pressure:	1.2MPa(12bar)
Flow rate range:	0.8-150m³/h(3.5-660US.GPM)

3. Performance data:

Model	Capacity	Pressure	Speed	Motor power	Head	(NPSH)r	Inlet	Outlet	Max grain diameter	Max fiber length
	(m³/h)	(MPa)	(r/min)	(KW)	(m)	(m)	(mm)	(mm)	(mm)	(mm)
G20-1	0.8	0.6	960	0.75	60	4	25	25	1.5	25
G20-2		1.2		1.5	120
G25-1	2	0.6	960	1.5	60		40	32	2	30
G25-2		1.2		2.2	120
G30-1	5	0.6	960	2.2	60		50	40	2.5	35
G30-2		1.2		3	120
G35-1	8	0.6	960	3	60		65	50	3	40
G35-2		1.2		4	120
G40-1	12	0.6	960	4	60		80	65	3.8	45
G40-2		1.2		5.5	120
G50-1	20	0.6	720	5.5	60	4.5	100	80	5	50
G50-2		1.2		7.5	120
G60-1	30	0.6	720	11	60	5	125	100	6	60
G60-2		1.2		15	120
G70-1	40	0.6	720	11	60		150	125	8	70
G70-2		1.2		18.5	120
G85-1	65	0.6	630	15	60		150	150	10	80
G85-2		1.2		30	120
G105-1	100	0.6	500	30	60		200	200	15	110
G105-2		1.2		55	120
G135-1	150	0.6	400	45	60		250	250	20	150
G135-2		1.2		90	120
