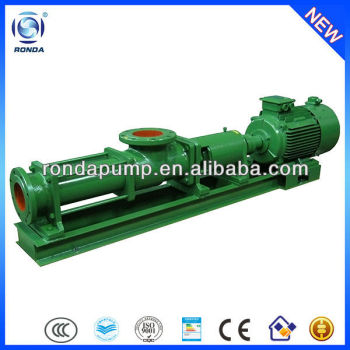

G Ronda cement screw rotary pump

FOB Price

US $1,000.001 - 40,000 set

US $50.0040,001 - 999,999 set

group name: SCREW PUMP

Min Order: 1 set

brand name: RONDA

model: G

Nearest port for product export: Ningbo, Shanghai

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, DAF, DES

Acceptable payment methods: T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Mon, 17 Mar 2014 15:40:10 GMT

contact supplier

Paramtents

Theory Rotary Pump
Structure Screw Pump
Usage Water, slurry, food,ect
Power Electric
Standard or Nonstandard Standard
Fuel Electric
Pressure Low Pressure
Application Water, slurry, food,ect
Material by clients Yes

Packging & Delivery

Min Order1 set

Briefing

1.Ronda cement screw rotary pump
2.Compact and stable flow
3.Could pump high viscosity fluid
4.Can be equipped various motors

Detailed

G Ronda cement screw rotary pump

1. Introduction:

1. G Ronda cement screw rotary pump is compact, small, easy to maintain, well-adapted to medium, stable flow, also with small pressure fluctuation and strong self-priming ability.

2. Pump has metal lined with rubber stator, which is made of various elastic material, such as NBR rubber, Silicon rubber.

3. G type screw pump could pump high viscosity fluid and medium with hard suspended solid/fiber as well.

4. This pump is widely used in construction field, foodstuff and beverage industries by adopting silicon rubber stator.

5.Pump may equipped with gear box motor, electric magnetic speed adjustable motor, CVT motor, frequency inverter motor,etc.

2. Product details:

Working Principle:	Single Screw, Progressive Cavity
Main applications:	Oil, Slurry, food
Driver:	Electric motor
Power Specs:	380/415V 3phase; 220/240V 1phase;50hz/60hz
Max.permissible fluid temperature:	120°C(248°F)
Type of connection:	Flange
Installation position:	Horizontal
Casing/Inner parts material:	Cast iron, Stainless Steel/Cast iron, Stainless steel, Bronze
Shaft seal type:	Mechanical seal
Free passage:	6mm
Maximum viscosity:	1X10⁶C.S.T
Maximum drive rating:	90KW(120HP)
Maximum caliber:	250mm(10inch)
Maximum discharge-side pressure:	1.2MPa(12bar)
Flow rate range:	0.8-150m³/h(3.5-660US.GPM)

3. Performance data:

Model	Capacity	Pressure	Speed	Motor power	Head	(NPSH)r	Inlet	Outlet	Max grain diameter	Max fiber length
	(m³/h)	(MPa)	(r/min)	(KW)	(m)	(m)	(mm)	(mm)	(mm)	(mm)
G20-1	0.8	0.6	960	0.75	60	4	25	25	1.5	25
G20-2		1.2		1.5	120
G25-1	2	0.6	960	1.5	60		40	32	2	30
G25-2		1.2		2.2	120
G30-1	5	0.6	960	2.2	60		50	40	2.5	35
G30-2		1.2		3	120
G35-1	8	0.6	960	3	60		65	50	3	40
G35-2		1.2		4	120
G40-1	12	0.6	960	4	60		80	65	3.8	45
G40-2		1.2		5.5	120
G50-1	20	0.6	720	5.5	60	4.5	100	80	5	50
G50-2		1.2		7.5	120
G60-1	30	0.6	720	11	60	5	125	100	6	60
G60-2		1.2		15	120
G70-1	40	0.6	720	11	60		150	125	8	70
G70-2		1.2		18.5	120
G85-1	65	0.6	630	15	60		150	150	10	80
G85-2		1.2		30	120
G105-1	100	0.6	500	30	60		200	200	15	110
G105-2		1.2		55	120
G135-1	150	0.6	400	45	60		250	250	20	150
G135-2		1.2		90	120
