G type Rotary Mono Screw Progressive Cavity Pump
- FOB Price
US $3,000.001 - 40,000 set
US $200.0040,001 - 999,999 set
- group name
- SCREW PUMP
- Min Order
- 1 set
- brand name
- RONDA
- model
- G
- Nearest port for product export
- Ningbo, Shanghai
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Mon, 17 Mar 2014 15:40:27 GMT
Paramtents
Theory Rotary Pump
Structure Screw Pump
Usage high viscosiy fluid
Power Electric
Standard or Nonstandard Standard
Fuel Diesel
Pressure Low Pressure
Application high viscosiy fluid
working condition continuous
working environment indoor & outdoor
duty heavy
Packging & Delivery
-
Min Order1 set
Briefing
2.Small pressure fluctation
3.Strong self-priming ability
4.Simple & compact
Detailed

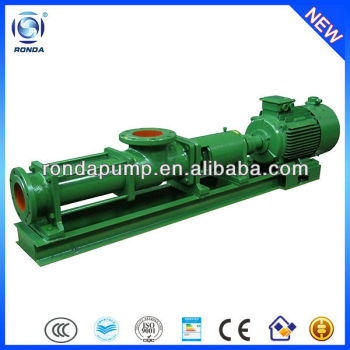

Rotary Mono Screw Progressive Cavity Pump
1.Introduction:
1. Rotary mono screw progressive cavity pump of Ronda is simple and compact.
2.It always used to deliver high viscosiy fluid and is well-adatped to mediums.
3.The medium could be with hard suspended solid or fiber .
4. Stator is metal lined with rubber, which is made of various elastic material, such as NBR rubber, Silicon rubber.
2.Product details:
| Working Principle: | Single Screw, Progressive Cavity |
| Main applications: | Oil, Slurry, food |
| Driver: | Electric motor |
| Power Specs: | 380/415 V 3phase; 220/240 V 1phase;50hz/60hz |
| Max. permissible fluid temperature: | 120°C(248°F) |
| Type of connection: | Flange |
| Installation position: | Horizontal |
| Casing/Inner parts material: | Cast iron, Stainless Steel/Cast iron, Stainless steel, Bronze |
| Shaft seal type: | Mechanical seal |
| Free passage: | 6mm |
| Maximum viscosity: | 1X106C.S.T |
| Maximum drive rating: | 90KW(120HP) |
| Maximum caliber: | 250mm(10inch) |
| Maximum discharge-side pressure: | 1.2MPa(12bar) |
| Flow rate range: | 0.8-150m3/h(3.5-660US.GPM) |
3.Performance data:
| Model | Capacity | Pressure | Speed | Motor power | Head | (NPSH)r | Inlet | Outlet | Max grain diameter | Max fiber length |
| (m3/h) | (MPa) | (r/min) | (KW) | (m) | (m) | (mm) | (mm) | (mm) | (mm) | |
| G20-1 | 0.8 | 0.6 | 960 | 0.75 | 60 | 4 | 25 | 25 | 1.5 | 25 |
| G20-2 | 1.2 | 1.5 | 120 | |||||||
| G25-1 | 2 | 0.6 | 960 | 1.5 | 60 | 40 | 32 | 2 | 30 | |
| G25-2 | 1.2 | 2.2 | 120 | |||||||
| G30-1 | 5 | 0.6 | 960 | 2.2 | 60 | 50 | 40 | 2.5 | 35 | |
| G30-2 | 1.2 | 3 | 120 | |||||||
| G35-1 | 8 | 0.6 | 960 | 3 | 60 | 65 | 50 | 3 | 40 | |
| G35-2 | 1.2 | 4 | 120 | |||||||
| G40-1 | 12 | 0.6 | 960 | 4 | 60 | 80 | 65 | 3.8 | 45 | |
| G40-2 | 1.2 | 5.5 | 120 | |||||||
| G50-1 | 20 | 0.6 | 720 | 5.5 | 60 | 4.5 | 100 | 80 | 5 | 50 |
| G50-2 | 1.2 | 7.5 | 120 | |||||||
| G60-1 | 30 | 0.6 | 720 | 11 | 60 | 5 | 125 | 100 | 6 | 60 |
| G60-2 | 1.2 | 15 | 120 | |||||||
| G70-1 | 40 | 0.6 | 720 | 11 | 60 | 150 | 125 | 8 | 70 | |
| G70-2 | 1.2 | 18.5 | 120 | |||||||
| G85-1 | 65 | 0.6 | 630 | 15 | 60 | 150 | 150 | 10 | 80 | |
| G85-2 | 1.2 | 30 | 120 | |||||||
| G105-1 | 100 | 0.6 | 500 | 30 | 60 | 200 | 200 | 15 | 110 | |
| G105-2 | 1.2 | 55 | 120 | |||||||
| G135-1 | 150 | 0.6 | 400 | 45 | 60 | 250 | 250 | 20 | 150 | |
| G135-2 | 1.2 | 90 | 120 |
4.FAQ:
5.Pictures:
Excellent product made of carefully selected high-quality materials:
Meticulous details & fine apperance:
Safe packing with standard plywood case:
