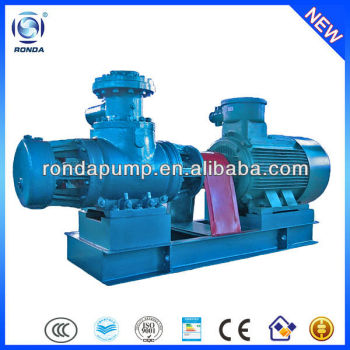

W.V rotary screw hot oil transfer pump

FOB Price

US $5000.01 - 40000 set

US $500.040001 - 999999 set

group name: SCREW PUMP

Min Order: 1 set

brand name: RONDA

model: W.V

Nearest port for product export: Ningbo, Shanghai

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, DAF, DES

Acceptable payment methods: T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Thu, 26 Dec 2024 23:39:34 GMT

contact supplier

Paramtents

Theory Rotary Pump
Structure Screw Pump
Usage Oil&gas, bitumen
Power Electric
Standard or Nonstandard Standard
Fuel Electric
Pressure Middle pressure
Application Oil&gas, bitumen

Packging & Delivery

Min Order1 set

Briefing

1.Rotary screw hot oil transfer pump
2.Strong self-priming ability
3.Special for oil and gas field
4.With the heating jacket

Detailed

W.V rotary screw hot oil transfer pump

1.Introduction:

1. W.V rotary screw hot oil transfer pump is with active screw and driven screw. The screw and the port would form a closed cavity in pump casing, when screw driving, the cavity would be pushed to outlet, and the liquid in cavity would be discharged soon.

2.Pump works stable without pulsation, stir, shake, with strong self-priming ability.

3.It’s can work as mixed transfer pump or crude oil transfer pump to pump oil, gas, water or tiny solid.

4.Pump with the heating jacket, it can deliver various viscosity of medium without solid particle.

2.Product details:

Working Principle:	Double Screw
Main applications:	Oil&gas, bitumen
Driver:	Electric motor
Max.permissible fluid temperature:	280°C(536°F)
Installation position:	Horizontal
Casing parts material:	Cast iron
Shaft seal type:	Mechanical seal
Maximum viscosity:	3X10⁶C.S.T
Maximum drive rating:	55KW(75HP)
Maximum caliber:	150mm(6inch)
Maximum discharge-side pressure:	3.2MPa(32bar)
Flow rate range:	0.8-59.6m³/h(3.5-262.2US.GPM)

3.Performance data:

Model	Pressure	1450r/min								950r/min				720r/min
	(MPa)	30cst		75cst		150cst		300cst		450cst		750cst		1500cst		2500cst
		m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW
2.5-15	0.6	2.4	1.5	3	2.2	3.2	2.2	3.3	2.2	1.8	1.5	1.8	2.2	1.3	2.2	1.3	2.2
2.5-15	1	1.7	2.2	2.6	2.2	2.9	3	3.1	3	1.7	2.2	1.7	2.2	1.2	2.2	1.2	2.2
2.5-20	0.4	3.9	1.5	4.3	1.5	4.4	2.2	4.5	2.2	2.6	1.5	2.6	2.2	1.9	2.2	1.9	2.2
2.5-20	0.6	3.4	1.5	4	2.2	4.2	2.2	4.3	2.2	2.5	2.2	2.5	2.2	1.8	1.5	1.8	2.2
2.8-18	0.6	4.3	2.2	4.8	2.2	4.9	3	5	3	2.9	2.2	2.9	3	2.1	3	2.1	3
2.8-18	1	3.7	3	4.4	4	4.7	4	4.8	4	2.7	3	2.7	3	2	3	2	4
2.8-24	0.4	6.3	2.2	6.6	2.2	6.7	3	6.8	3	4	2.2	4	3	2.9	2.2	2.9	3
2.8-24	0.6	5.9	2.2	6.4	4	6.5	4	6.6	4	3.8	3	3.8	3	2.7	3	2.7	3
3.1-22	0.6	7.7	3	8.2	4	8.3	4	8.4	4	5	3	5	4	3.7	3	3.7	4
3.1-22	1	7	4	7.8	5.5	8	5.5	8.1	5.5	4.8	4	4.8	5.5	3.5	4	3.5	5.5
3.1-30	0.4	11.1	3	11.4	3	11.5	4	11.6	5.5	6.9	3	6.9	4	5.1	3	5.1	4
3.1-30	0.6	10.6	4	11.1	5.5	11.3	5.5	11.4	5.5	6.7	4	6.7	5.5	4.9	4	4.9	5.5
3.2-18	1.6	-	-	4.8	7.5	5.8	7.5	6.3	7.5	2.4	5.5	2.4	5.5	0.9	4	0.9	5.5
	2	-	-	4.2	7.5	5.5	7.5	6.1	11	2.3	7.5	2.3	7.5	0.9	4	0.9	5.5
	2.5	-	-	3.4	11	5	11	5.8	11	2.1	7.5	2.1	7.5	0.8	5.5	0.8	5.5
3.2-24	1	5.5	5.5	7.6	7.5	8.4	11	8.7	11	4.6	5.5	4.6	5.5	2.7	5.5	2.7	5.5
	1.25	4.6	7.5	7.2	11	8.2	11	8.5	11	4.5	5.5	4.5	7.5	2.6	5.5	2.6	7.5
	1.6	3.4	7.5	6.7	11	7.8	11	8.3	11	4.3	7.5	4.3	7.5	2.5	5.5	2.5	7.5
3.2-30	0.6	9.7	5.5	11	5.5	11.5	5.5	11.7	7.5	6.8	5.5	6.8	5.5	4.3	5.5	4.3	5.5
3.2-30	1	8	7.5	10.2	7.5	10.9	7.5	11.2	7.5	6.5	5.5	6.5	5.5	4.3	5.5	4.3	5.5
3.2-44	0.4	16.4	5.5	17.5	7.5	17.9	7.5	18.1	7.5	11.2	4	11.3	5.5	8	4	8	4
3.2-44	0.6	15.2	7.5	17	7.5	17.4	7.5	17.6	7.5	10.9	5.5	11	5.5	7.8	5.5	7.8	5.5
3.4-24	1.6	-	-	7.4	11	9	11	9.8	11	5.7	7.5	5.7	7.5	4.3	7.5	4.3	11
	2	-	-	6.5	11	8.5	11	9.5	15	5.5	11	5.5	11	4.1	7.5	4.1	11
	2.5	-	-	5.3	15	7.8	15	9.1	15	5.1	11	5.1	11	3.9	11	3.9	11
3.4-30	1	8.3	7.5	11.4	7.5	12.4	11	12.9	11	7.6	7.5	7.6	7.5	5.6	7.5	5.6	7.5
	1.25	6.9	11	10.7	11	12.1	11	12.6	11	7.4	7.5	7.4	11	5.5	7.5	5.5	11
	1.6	5	11	9.9	11	11.5	11	12.3	15	7.1	11	7.1	11	5.3	7.5	5.3	11
3.4-40	0.6	14.8	5.5	16.8	7.5	17.5	7.5	17.8	11	10.6	7.5	10.6	7.5	7.8	7.5	7.8	7.5
3.4-40	1	12.2	11	15.5	11	16.6	11	17.2	11	10	7.5	10	7.5	7.4	7.5	7.4	7.5
3.4-56	0.4	21.8	5.5	23.2	7.5	23.7	7.5	24	11	14.3	5.5	14.4	7.5	10.5	5.5	10.5	7.5
3.4-56	0.6	20.2	7.5	22.5	11	23.1	11	23.4	11	13.8	7.5	13.9	7.5	10.1	7.5	10.1	7.5
4.0-26	1.6	-	-	12.4	15	14.6	15	15.7	18.5	9.3	11	9.3	15	7	11	7	15
	2	-	-	11.2	15	13.9	18.5	15.3	22	9	15	9	15	6.8	15	6.8	15
	2.5	-	-	9.6	18.5	13.1	22	14.8	22	8.6	15	8.6	15	6.6	15	6.6	15
4.0-32	1	13.9	11	18.2	15	19.6	15	20.3	15	12.2	11	12.2	15	9.1	11	9.1	11
	1.25	12	15	17.3	15	19.1	15	20	18.5	11.9	11	11.9	15	8.9	11	8.9	15
	1.6	-	-	16.1	18.5	18.4	18.5	19.5	22	11.5	15	11.5	15	8.6	11	8.6	15
4.0-44	0.6	24.6	11	27.4	11	28.3	11	28.8	15	17.3	11	17.3	11	12.8	11	12.8	11
4.0-44	1	21.1	15	25.7	15	27.2	15	27.9	18.5	16.6	11	16.6	15	12.3	11	12.3	15
4.0-64	0.4	37.2	11	39.1	11	39.8	11	40.1	15	24.1	11	24.2	11	17.8	11	17.8	11
4.0-64	0.6	35	11	38	15	38.9	15	39.4	18.5	23.5	11	23.7	11	17.3	11	17.3	11
4.5-30	1.6	17.4	18.5	22.3	22	24	22	24.8	30	14.9	18.5	15	18.5	11.1	18.5	11.2	18.5
	2	15.1	22	21.3	30	23.4	30	24.4	30	14.5	22	14.6	22	10.9	18.5	11	22
	2.5	12.3	30	20	30	22.6	30	23.9	30	14.2	22	14.3	22	10.6	18.5	10.6	22
4.5-40	1	29.1	18.5	32.4	18.5	33.5	22	34	22	20.5	18.5	20.6	18.5	15.3	15	15.3	18.5
	1.25	27.5	18.5	31.6	22	33	30	33.7	30	20.2	18.5	20.3	22	15	18.5	15.1	22
	1.6	25.3	30	30.6	30	32.3	30	33.2	30	19.9	22	20	22	14.7	18.5	14.8	22
4.5-52	0.6	41.8	15	43.9	15	44.6	18.5	45	22	27.3	15	27.4	18.5	20.3	15	20.3	15
4.5-52	1	38.9	22	42.4	22	43.6	30	44.2	30	26.6	18.5	26.7	18.5	19.7	15	19.7	18.5
4.5-72	0.4	57.3	15	58.8	15	59.3	18.5	59.6	22	36.1	15	36.2	15	26.9	15	26.9	18.5
4.5-72	0.6	55.5	18.5	57.7	22	58.5	22	58.9	22	35.5	22	35.6	18.5	26.3	18.5	26.3	22
5.0-28	2.5	17.3	37	24.7	37	27.2	37	28.4	45	17.1	30	17.3	37	12.9	30	12.9	37
5.0-28	3.2	-	-	23.1	45	26.3	45	27.9	55	16.7	37	17	45	12.7	37	-	-

4. FAQ:

W.V rotary screw hot oil transfer pump

5. Pictures:

Excellent product made of carefully selected high-quality materials:

W.V rotary screw hot oil transfer pump

Goods are packed and ready to delivered:

W.V rotary screw hot oil transfer pump
