CQB-F electric fluorine plastic lining magnetic water pump
- FOB Price
US $1000.01 - 40000 set
US $60.040001 - 999999 set
- group name
- MAGNETIC PUMP
- Min Order
- 1 set
- brand name
- RONDA
- model
- CQB-F
- Nearest port for product export
- Ningbo, Shanghai
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Thu, 26 Dec 2024 11:20:46 GMT
Paramtents
Theory Magnetic
Structure Magnetic
Usage Chemical
Power Electric
Standard or Nonstandard Standard
Fuel Electric
Pressure Low Pressure
Application Chemical
Packging & Delivery
-
Min Order1 set
Briefing
2.Wet parts are made of FEP
3.Full-sealed,non-leak
4.Simple structure
Detailed

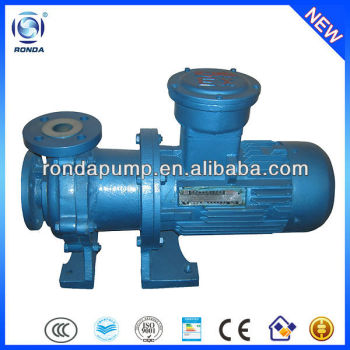

CQB-F electric fluorine plastic lining magnetic water pump
1. Introduction:
1. CQB-F electric fluorine plastic lining magnetic water pump's wet parts are made of FEP, it is with strong corrosion resistance, strong mechanical strength and is without ageing and toxin decomposition.
2. It is a full-sealed pump, for motor connecting shaft and impeller are separately quipped with magnetic materials.
3. It has simple structure, fine exterior, small volume, low noise.
4. Widely used in petrochemical industry, acid/alkali plant, non-ferrous metal metallurgy, pickling in automobile manufacture, rare earth separation, pesticide/dye/medicine/papermaking industry, electroplate/radio industry, etc. .
2. Product details:
| Working Principle: | Centrifugal, Magnetic |
| Main applications: | Chemical, water, oil |
| Driver: | Electric motor |
| Power Specs: | 380/415 V 3phase; 220/240 V 1phase; 50hz/60hz |
| Max.permissible fluid temperature: | 80°C(176°F) |
| Type of connection: | Flange,Thread |
| Installation position: | Horizontal |
| Casing/Inner parts material: | Fiber reinforced, Alumina ceramic/Fiber reinforced |
| Shaft seal type: | Static sealing |
| Free passage: | 0 mm |
| Maximum drive rating: | 15KW(20HP) |
| Maximum caliber: | 80mm(3inch) |
| Maximum discharge-side pressure: | 0.5MPa(5bar) |
| Maximum head: | 50m(164ft) |
| Flow rate range: | 15-850L/min(4.0-22 4.4 US.GPM) |
3. Performance data:
| Model | Inlet | Outlet | Capacity | Head | NPSH | Motor power | Voltage |
| (mm) | (mm) | (m3/h) | (m) | (m) | (KW) | (V) | |
| CQB15-10-85F | 15 | 10 | 1.8 | 8 | 6 | 0.12 | 220/380 |
| CQB20-15-105F | 20 | 15 | 3 | 12 | 6 | 0.37 | 220/380 |
| CQB32-25-125F | 32 | 25 | 3.2 | 20 | 5 | 0.75 | 380 |
| CQB32-25-145F | 32 | 25 | 3.2 | 25 | 6 | 0.75 | 380 |
| CQB40-32-115F | 40 | 32 | 6.3 | 15 | 5 | 0.75 | 380 |
| CQB40-32-145F | 40 | 32 | 6.3 | 25 | 3.5 | 1.5 | 380 |
| CQB40-32-160F | 40 | 32 | 6.3 | 32 | 3.5 | 2.2 | 380 |
| CQB50-40-125F | 50 | 40 | 12.5 | 20 | 4 | 2.2 | 380 |
| CQB50-40-160F | 50 | 40 | 12.5 | 32 | 4 | 3 | 380 |
| CQB65-50-125F | 65 | 50 | 25 | 20 | 4 | 3 | 380 |
| CQB65-50-160F | 65 | 50 | 25 | 32 | 4 | 5.5 | 380 |
| CQB80-65-125F | 80 | 65 | 50 | 20 | 4 | 7.5 | 380 |
| CQB80-65-160F | 80 | 65 | 50 | 32 | 4 | 11 | 380 |
| CQB100-80-125F | 100 | 80 | 100 | 20 | 4 | 11 | 380 |
| CQB100-80-160F | 100 | 80 | 100 | 32 | 4 | 18.5 | 380 |
| NOTE: From CQB32-25-125F to CQB100-80-160F in the table can be equipped with EP | |||||||
4. FAQ:
5. Pictures:
Excellent product made of carefully selected high-quality materials:
Maticulous details & fine apperance:
Safe packing with standard plywood case:
