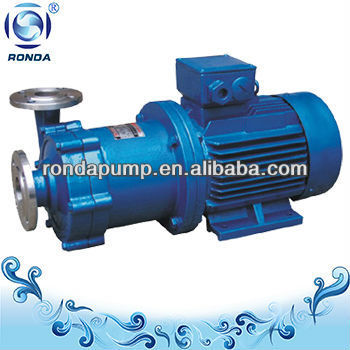

Magnetic pump made of stainless steel
- FOB Price
US $3000.01 - 40000 set
US $10.040001 - 999999 set
- group name
- MAGNETIC PUMP
- Min Order
- 1 set
- brand name
- RONDA
- model
- CQ
- Nearest port for product export
- Ningbo, Shanghai
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Thu, 26 Dec 2024 11:17:46 GMT
Paramtents
Theory Centrifugal Pump
Structure Single-stage Pump
Usage Water, oil, chemical
Power Electric
Standard or Nonstandard Standard
Fuel Magnetic
Pressure Middle
Application Multi-function
Working condition continuous
Working environment in or out door
Voltage can be changed or not Yes
Duty Heavy
Frequency can be changed or not Yes
Material by clients Yes
Packging & Delivery
-
Min Order1 set
Briefing
Detailed
Magnetic pump
Magnetic pump CQ series, the casing is made of cast iron lined with rubber PVDF, PTFE, or stainless steel. So it has good corrosion resistant ability.
The biggest merit of magnetic pump is its no leaking, because impeller is driving by magnetic power, theres no sealing part. It is an advanced pump for chemical, also it works for precious liquid.
| Working Principle: | Magnetic, Centrifugal |
| Main applications: | Chemical |
| Driver: | Electric motor |
| Power Specs: | 380/415 V 3phase; 50hz/60hz |
| Max. permissible fluid temperature: | 100°C |
| Type of connection: | Flange |
| Installation position: | Horizontal |
| Casing/Inner parts material: | Stainless steel/Stainless steel |
| Shaft seal type: | Static sealing |
| Free passage: | 0.1mm(max) |
| Maximum density: | 1.6kg/m3 |
| Maximum drive rating: | 18.5kW (24.8hp) |
| Maximum caliber: | 4 inch (100mm) |
| Maximum dischrage head: | 50m |
| Flow rate range: | 1.5-60 m³/h (25-1000l/m) |
Below specifications is based on 380V/220V, for any other power standard, pls contact us directly.
Model | Hose | Capacity (m3/h) | Head | Power (KW) | Voltage V | |
| Inlet | Outlet | (m) | ||||
| 14CQ-5 | 14 | 10 | 1.2 | 5 | 0.12 | 220/380 |
| 16CQ-8 | 16 | 12 | 1.5 | 8 | 0.18 | 220/380 |
| 20CQ-12 | 20 | 12 | 3 | 12 | 0.37 | 220/380 |
| 25CQ-15 | 25 | 20 | 6.6 | 15 | 1.1 | 380 |
| 32CQ-15 | 32 | 25 | 6.6 | 15 | 1.1 | 380 |
| 32CQ-25 | 32 | 25 | 6.6 | 25 | 1.1 | 380 |
| 40CQ-20 | 40 | 32 | 10.8 | 20 | 2.2 | 380 |
| 40CQ-32 | 40 | 32 | 12 | 32 | 4 | 380 |
| 50CQ-25 | 50 | 40 | 14.4 | 25 | 4 | 380 |
| 50CQ-32 | 50 | 40 | 13.2 | 32 | 4 | 380 |
| 50CQ-50 | 50 | 32 | 7.8 | 50 | 5.5 | 380 |
| 65CQ-25 | 65 | 50 | 16.8 | 25 | 5.5 | 380 |
| 65CQ-32 | 65 | 50 | 27 | 32 | 7.5 | 380 |
| 80CQ-32 | 80 | 65 | 51 | 32 | 11 | 380 |
| 50CQ-50 | 80 | 65 | 51 | 50 | 15 | 380 |
| 100CQ-32 | 100 | 80 | 60 | 32 | 15 | 380 |
| 100CQ-50 | 100 | 80 | 60 | 50 | 18.5 | 380 |
| 16CQ-8---100CQ-50 can be equipped with explosion proof motor | ||||||
