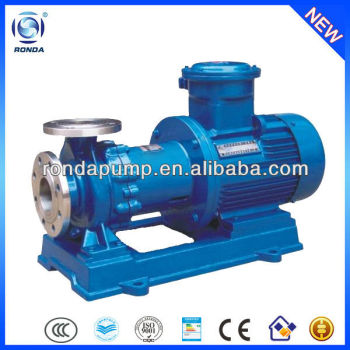

CQB and CQB-G explosion proof magnetic drive centrifugal water pump
- FOB Price
US $1000.01 - 40000 set
US $100.040001 - 999999 set
- group name
- MAGNETIC PUMP
- Min Order
- 1 set
- brand name
- RONDA
- model
- CQB CQB-G
- Nearest port for product export
- Ningbo, Shanghai
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Thu, 21 Nov 2024 18:51:23 GMT
Paramtents
Theory Magnetic
Structure Magnetic
Usage Chemical
Power Electric
Standard or Nonstandard Standard
Fuel Chemical
Pressure Low Pressure
Application Chemical
Packging & Delivery
-
Min Order1 set
Briefing
2.Magnetic coupling
3.Full-sealed, Non-leak
4.Anti-corrosion
Detailed
CQB and CQB-G explosion proof magnetic drive centrifugal water pump
1. Introduction:
1. CQB and CQB-G explosion proof magnetic drive centrifugal water pump adopt the magnetism transmission principle and cooling installation to transport corrosive medium of high temperature without leakage.
2. Flow components can be used in accordance with the needs of 304,304 L, 302,321,316,316 L, UB6, CD4MCu, titanium alloys, nickel-based alloy materials, such as decay.
3. Use magnetic coupler for power drive.
4. It is also a wonderful pump to deliver the liquid that is high temperature, inflammable, explosive, volatilized, poisonous, rare & valuable or corrosive.
2. Product details:
| Working Principle: | Centrifugal, Magnetic |
| Main applications: | Chemical |
| Driver: | Electric motor |
| Power Specs: | 380/415 V 3phase 50hz/60hz |
| Max.permissible fluid temperature: | 100°C(212°F)/280°C(536°F) |
| Type of connection: | Flange |
| Installation position: | Horizontal |
| Casing/Inner parts material: | Stainless steel/Stainless steel |
| Shaft seal type: | Static sealing |
| Free passage: | 0 mm |
| Maximum drive rating: | 55KW(75HP) |
| Maximum caliber: | 100mm(4inch) |
| Maximum discharge-side pressure: | 0.8MPa(8bar) |
| Maximum head: | 80m(262.4ft) |
| Flow rate range: | 3.2-100m3/h(14.1-440 US.GPM) |
3. Performance data:
| Model | Caliber(mm) | Capacity | Head | Motor power | Voltage | |
| Inlet | Outlet | (m3/h) | (m) | (KW) | (Phase) | |
| CQB32-20-125 | 32 | 20 | 3.2 | 20 | 1.1 | 3phase |
| CQB32-20-160 | 32 | 20 | 3.2 | 32 | 1.5 | 3phase |
| CQB40-25-105 | 40 | 25 | 6.3 | 12.5 | 1.1 | 3phase |
| CQB40-25-125 | 40 | 25 | 6.3 | 20 | 2.2 | 3phase |
| CQB40-25-160 | 40 | 25 | 6.3 | 32 | 3 | 3phase |
| CQB40-25-200 | 40 | 25 | 6.3 | 50 | 5.5 | 3phase |
| CQB50-40-85 | 50 | 40 | 12.5 | 8 | 1.1 | 3phase |
| CQB50-32-105 | 50 | 32 | 12.5 | 12.5 | 1.5 | 3phase |
| CQB50-32-125 | 50 | 32 | 12.5 | 20 | 3 | 3phase |
| CQB50-32-160 | 50 | 32 | 12.5 | 32 | 4 | 3phase |
| CQB50-32-200 | 50 | 32 | 12.5 | 50 | 7.5 | 3phase |
| CQB50-32-250 | 50 | 32 | 12.5 | 80 | 18.5 | 3phase |
| CQB65-50-125 | 65 | 50 | 25 | 20 | 4 | 3phase |
| CQB65-50-160 | 65 | 50 | 25 | 32 | 7.5 | 3phase |
| CQB65-40-200 | 65 | 40 | 25 | 50 | 15 | 3phase |
| CQB65-40-250 | 65 | 40 | 25 | 80 | 22 | 3phase |
| CQB80-65-125 | 80 | 65 | 50 | 20 | 7.5 | 3phase |
| CQB80-65-160 | 80 | 65 | 50 | 32 | 11 | 3phase |
| CQB80-50-200 | 80 | 50 | 50 | 50 | 22 | 3phase |
| CQB80-50-250 | 80 | 50 | 50 | 80 | 37 | 3phase |
| CQB100-80-125 | 100 | 80 | 100 | 20 | 15 | 3phase |
| CQB100-80-160 | 100 | 80 | 100 | 32 | 22 | 3phase |
| CQB100-65-200 | 100 | 65 | 100 | 50 | 37 | 3phase |
| CQB100-65-250 | 100 | 65 | 100 | 80 | 55 | 3phase |
NOTE: The performance of the CQB-G is the same as in the table.
4. FAQ:
5. Pictures:
Excellent product made of carefully selected high-quality materials:
Maticulous details & fine apperance:
Safe packing with standard plywood case:
