MP small capacity magnetic fuel circulation pump
- FOB Price
US $600.01 - 40000 set
US $50.040001 - 999999 set
- group name
- MAGNETIC PUMP
- Min Order
- 1 set
- brand name
- RONDA
- model
- MP
- Nearest port for product export
- Ningbo, Shanghai
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Thu, 26 Dec 2024 11:15:58 GMT
Paramtents
Theory Electromagnetic Pump
Structure Magnetic
Usage Chemical
Power Electric
Standard or Nonstandard Standard
Fuel Electric
Pressure Low Pressure
Application Chemical, water
Packging & Delivery
-
Min Order1 set
Briefing
2.Magnetic coupling
3.Work as booster pump,chemical pump
4.Light weight
Detailed

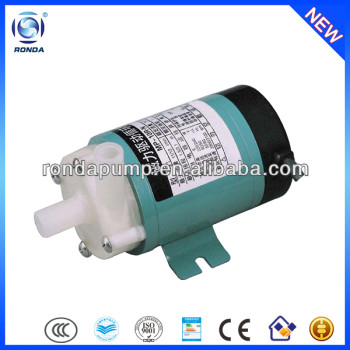

MP small capacity magnetic fuel circulation pump
1.Introduction:
1. MP small capacity magnetic fuel circulation pump is manufactured by RONDA is compact structure, small volume, light weight.
2. It is a full-sealed pump, this solves the problem of leakage of normal pump.
3. Pump has the advantages of good corrosion resistance and wearable performance.
4. It is widely used for the leaky and flammable and explosive liquid and volatile and toxin liquid in chemical industry, pharmacy, petroleum, electroplate, food etc.
2. Products details:
| Working Principle: | Centrifugal, Magnetic coupled |
| Main applications: | Chemical, water |
| Driver: | Electric motor |
| Power Specs: | 380/415 V 3phase; 220/240 V 1phase; 50hz/60hz |
| Max.permissible fluid temperature: | 80°C(176°F) |
| Type of connection: | Thread |
| Installation position: | Horizontal |
| Casing/Inner parts material: | Fiber reinforced, Alumina ceramic/Fiber reinforced |
| Shaft seal type: | Static sealing |
| Free passage: | 0 mm |
| Maximum drive rating: | 2.2KW(3HP) |
| Maximum caliber: | 56mm(2 1/4inch) |
| Maximum discharge-side pressure: | 0.22MPa(2.2bar) |
| Maximum head: | 22m(72.2ft) |
| Flow rate range: | 2.8-380L/min(0.7-100.3US.GPM) |
3.Performance data:
| Model | Tube interface | Thread interface | Max. | Standard | Spes | Motor | |||||
| gravity | |||||||||||
| Inlet | Outlet | Inlet and outlet | Tube | Capacity | Head | Capacity | Head | Power | Phase | ||
| (mm) | (mm) | (mm) | (mm) | (L/min) | (m) | (L/min) | (m) | ||||
50Hz/ 60Hz | 50Hz/ 60Hz | 50Hz/ 60Hz | 50Hz/6 0Hz | ||||||||
| MP-6R | 14 | 14 | - | - | 8/9 | 1/1.4 | 2.8/5 | 0.8 | <1.2 | 3 | 1 |
| MP-6RZ | 14 | 14 | - | - | 5.5/6 | 2.1/2.7 | 5/8 | 1 | <1.1 | 3 | 1 |
| MP-10R | 14 | 14 | - | - | 11/12 | 1.5/2.1 | 5/8 | 1 | <1.1 | 6 | 1 |
| MP-10RN | 14 | 14 | - | - | 11/12 | 1.5/2.1 | 5/8 | 1 | <1.1 | 6 | 1 |
| MP-15R | 16 | 16 | - | - | 16/19 | 2.7/3.4 | 8/12 | 1.5 | <1.3 | 10 | 1 |
| MP-15RN | 16 | 16 | - | - | 16/19 | 2.7/3.4 | 8/12 | 1.5 | <1.3 | 10 | 1 |
| MP-15RM | - | - | 18 | 13 | 16/19 | 2.4/3.4 | 8/12 | 1.5 | <1.3 | 10 | 1 |
| MP-20R | 18 | 18 | - | - | 27/32 | 3.1/4.3 | 17/22 | 2 | <1.2 | 20 | 1 |
| MP-20RM | - | - | 18 | 16 | 27/32 | 3.1/4.3 | 30/40 | 1 | <1.2 | 20 | 1 |
| MP-20RX | 26 | 26 | - | - | 46/52 | 1.8/2.5 | 30/40 | 1 | <1.3 | 20 | 1 |
| MP-20RXM | - | - | 25 | 20 | 46/52 | 1.8/2.5 | 30/40 | 1 | <1.3 | 20 | 1 |
| MP-20RZ | 18 | 18 | . | . | 10/11 | 4 3/5 | 6.97/10 | 4 | <1.1 | 20 | 1 |
| MP-20RMZ | - | - | 18 | 13 | 10/11 | 4.6/6.9 | 41465 | 4 | <1.1 | 20 | 1 |
| MP-30R | 20 | 20 | - | - | 33/38 | 3.8/5.4 | 16/25 | 2.5 | <1.3 | 45 | 1 |
| MP-30RM | - | - | 18 | 16 | 33/38 | 3.8/5.4 | 16/25 | 2.5 | <1.3 | 45 | 1 |
| MP-30RX | 26 | 26 | - | - | 62/72 | 2.9/4.1 | 32/46 | 2 | <1.1 | 45 | 1 |
| MP-30RXM | - | - | 25 | 20 | 62/72 | 2.9/4.1 | 32/46 | 2 | <1.1 | 45 | 1 |
| MP-30RZ | 18 | 18 | - | - | 15/17 | 8/11 | 10/14 | 6 | <1.1 | 45 | 1 |
| MP-30RZM | - | - | 18 | 13 | 15/17 | 8/11 | 10/14 | 6 | <1.1 | 45 | 1 |
| MP-40R | 20 | 20 | - | - | 45/52 | 4.6/6.5 | 22/34 | 4 | <1.1 | 65 | 1 |
| MP-40RM | - | - | 18 | 16 | 45/52 | 4.6/6.5 | 22/34 | 4 | <1.1 | 65 | 1 |
| MP-40RX | 26 | 26 | - | - | 75/85 | 3.3/4.7 | 47/65 | 2 | <1.1 | 65 | 1 |
| MP-40RXM | - | - | 25 | 20 | 75/85 | 3.3/4.7 | 47/65 | 2 | <1.1 | 65 | 1 |
| MP-55R | 26 | 26 | - | - | 60/70 | 5.6/8.2 | 30/45 | 4 | <1.2 | 90 | 1 or 3 |
| MP-55RM | - | - | 25 | 20 | 60/70 | 5.6/8.2 | 30/45 | 4 | <1.2 | 90 | 1 or 3 |
| MP-55RZ | 26 | 26 | . | 25/28 | 10/14 | 15/22 | 8 | <1.1 | 90 | 1 or 3 | |
| MP-55RZM | . | . | 0.25 | 20 | 25/28 | 10/14 | 15/22 | 8 | <1.1 | 90 | 1 or 3 |
| MP-70R | 26 | 26 | - | - | 86/97 | 6.7/9.7 | 50/72 | 4 | <1.1 | 150/180 | 1 or 3 |
| MP-70RM | - | - | 25 | 20 | 86/97 | 6.7/9.7 | 50/72 | 4 | <1.1 | 150/180 | 1 or 3 |
| MP-100R | 26 | 26 | - | - | 120/130 | 8.6/11.6 | 60/70 | 7/9 | <1.3 | 250/265 | 1 or 3 |
| MP-100RM | - | - | 25 | 20 | 120/130 | 8.6/11.6 | 60/70 | 7/9 | <1.3 | 250/265 | 1 or 3 |
| MP-100RX | - | - | 32 | 32 | 170 | 9 | 100 | 5 | <1.3 | 250 | 1 or 3 |
| MP-120R | - | - | 40 | 36 | 220 | 10.5 | 140 | 6 | <1.3 | 250 | 1 or 3 |
| MP-120RT | - | - | 56 | 48 | 220 | 10.5 | 140 | 6 | <1.3 | 250 | 1 or 3 |
| MPH-400CV5-D | - | - | 36 | 36 | 220 | 12.5 | 150 | 8 | <1.3 | 370 | 3 |
| MPH-401CV5-D | - | - | 36 | 36 | 260 | 18 | 120 | 12 | <1.3 | 750 | 3 |
| MPH-422CV5-D | - | - | 40 | 38 | 320 | 21 | 160 | 18 | <1.3 | 1500 | 1 or 3 |
| MPH-423CV5-D | - | - | 40 | 38 | 380 | 22 | 230 | 18 | <1.3 | 2200 | 1 or 3 |
4. FAQ:
5. Pictures:
Excellent product made of carefully selected high-quality materials:
Safe packing with standard plywood case:
