Stainless steel self priming centrifugal magnetic pump
- FOB Price
US $5000.01 - 40000 set
US $60.040001 - 999999 set
- group name
- MAGNETIC PUMP
- Min Order
- 1 set
- brand name
- RONDA
- model
- ZCQ
- Nearest port for product export
- Ningbo, Shanghai
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Thu, 26 Dec 2024 11:56:54 GMT
Paramtents
Theory Centrifugal Pump
Structure Single-stage Pump
Usage Chemical
Power Electric
Standard or Nonstandard Standard
Fuel Magnetic power
Pressure Middle
Application Multi-function
Frequency voltage can be changed or not Yes
Duty Heavy
Material by clients Yes
Working condition continuous
Working environment in or out door
Packging & Delivery
-
Min Order1 set
Briefing
Detailed

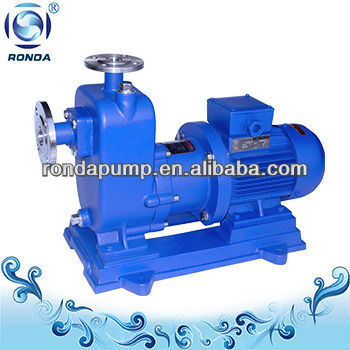

ZCQ Self-Priming Magnetic Pump
ZCQ self-priming magnetic pump is both with merits of self-priming function and magnetic driving. It is an advanced pump. Magnetic driving makes sure that the pump wont leak. This pump is widely used in chemical departments and oil, water areas.
| Working Principle: | Magnetic, Centrifugal, Self-priming |
| Main applications: | Chemical, Oil, Water |
| Driver: | Electric motor |
| Power Specs: | 380/415 V 3phase; 50hz/60hz etc. |
| Max. permissible fluid temperature: | 75°C |
| Type of connection: | Flange |
| Installation position: | Horizontal |
| Casing/Inner parts material: | Cast iron, Stainless steel/Cast iron, Stainless steel |
| Shaft seal type: | Static sealing |
| Free passage: | 0.1mm(max) |
| Maximum gravity: | 1.3 |
| Maximum drive rating: | 22W (30hp) |
| Maximum caliber: | 4 inch (100mm) |
| Maximum dischrage head: | 32m |
| Maximum suction head: | 4m |
| Flow rate range: | 6.6-90 m³/h (110-1500l/m) |
Below specifications is based on 380v/50hz, for any other power standard, pls contact us.
Model | Caliber | Head | Capacity | power | Speed | Voltage | Self priming performance | |
| Inlet mm | Outlet mm | m | L/min | KW | r/min | V | m/3minitues | |
| ZCQ25-20-115 | 25 | 20 | 15 | 110 | 1.1 | 2900 | 380 | 4 |
| ZCQ32-25-115 | 32 | 25 | 15 | 110 | 1.1 | 2900 | 380 | 4 |
| ZCQ32-25-145 | 32 | 25 | 25 | 110 | 1.1 | 2900 | 380 | 4 |
| ZCQ40-32-132 | 40 | 32 | 20 | 180 | 2.2 | 2900 | 380 | 4 |
| ZCQ40-32-160 | 40 | 32 | 32 | 180 | 4 | 2900 | 380 | 4 |
| ZCQ50-40-145 | 50 | 40 | 25 | 240 | 4 | 2900 | 380 | 4 |
| ZCQ50-40-160 | 50 | 40 | 32 | 220 | 4 | 2900 | 380 | 4 |
| ZCQ65-50-145 | 65 | 50 | 25 | 280 | 5.5 | 2900 | 380 | 4 |
| ZCQ65-50-160 | 65 | 50 | 32 | 450 | 7.5 | 2900 | 380 | 4 |
| ZCQ80-65-125 | 80 | 65 | 20 | 800 | 7.5 | 2900 | 380 | 4 |
| ZCQ80-65-160 | 80 | 65 | 32 | 800 | 15 | 2900 | 380 | 4 |
| ZCQ100-80-160 | 100 | 80 | 32 | 1500 | 22 | 2900 | 380 | 4 |
