Ronda MP Miniature magnetic pump
- FOB Price
US $500.01 - 40000 set
US $10.040001 - 999999 set
- group name
- MAGNETIC PUMP
- Min Order
- 1 set
- brand name
- RONDA
- model
- MP
- Nearest port for product export
- Ningbo, Shanghai
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Thu, 26 Dec 2024 00:24:36 GMT
Paramtents
Theory Electromagnetic Pump
Structure Single-stage Pump
Usage Water
Power Electric
Standard or Nonstandard Standard
Pressure Low Pressure
Packging & Delivery
-
Min Order1 set
Briefing
MP Miniature magnetic pump Ronda brand is made of PP, FRPP for chemical.
Detailed

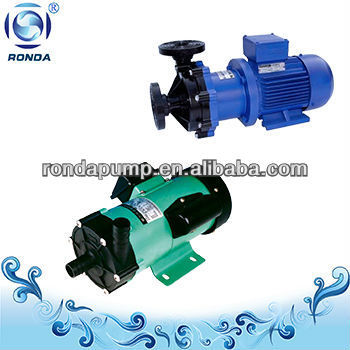

Ronda MP Miniature magnetic pump
MP micro plastic magnetic pump is for small capacity and head. This pump is light and convenience to take. Both may use in household, chemical industries, shops, etc.
| Working Principle: | Magnetic, Centrifugal |
| Main applications: | Chemical, water, oil |
| Driver: | Electric motor |
| Power Specs: | 380/415 V 3phase; 220/240V 1phase; 50hz/60hz |
| Max. permissible fluid temperature: | 100°C |
| Type of connection: | Thread |
| Installation position: | Horizontal |
| Casing/Inner parts material: | Fiber Reinforced, Alumina Ceramic/Fiber Reinforced |
| Shaft seal type: | Static sealing |
| Free passage: | 0mm |
| Maximum density: | 1.2kg/m3 |
| Maximum drive rating: | 2.2kW (3hp) |
| Maximum caliber: | 2 inch (50mm) |
| Maximum dischrage head: | 22m |
| Flow rate range: | 0.33-21.6 m³/h (5.5-360l/m) |
| Model | Hose | Thread | Max. Flow (L/min) | Max. Head (m) | Standard output | Gravity | Motor | ||||
| Inlet (mm) | Outlet (mm) | (inch) | Flexible hose. (mm) | 50Hz/60Hz | 50Hz/60Hz | Flow(L/min) 50Hz/60Hz | Head (m) | Output (w) | Phase | ||
| MP-6R | 14 | 14 | - | - | 8/9 | 1/1.4 | 2.8/5 | 0.8 | <1.2 | 3 | 1 |
| MP-6RZ | 14 | 14 | - | - | 5.5/6 | 2.1/2.7 | 3.2/4.5 | 0.8 | <1.1 | 3 | 1 |
| MP-10R | 14 | 14 | - | - | 11/12 | 1.5/2.1 | 5/8 | 1 | <1.1 | 6 | 1 |
| MP-10RN | 14 | 14 | - | - | 11/12 | 1.5/2.1 | 5/8 | 1 | <1.1 | 6 | 1 |
| MP-15R | 16 | 16 | - | - | 16/19 | 2.7/3.4 | 8/12 | 1.5 | <1.3 | 10 | 1 |
| MP-15RN | 16 | 16 | - | - | 16/19 | 2.7/3.4 | 8/12 | 1.5 | <1.3 | 10 | 1 |
| MP-15RM | - | - | 3/4 | 13 | 16/19 | 2.4/3.4 | 8/12 | 1.5 | <1.3 | 10 | 1 |
| MP-20R | 18 | 18 | - | - | 27/32 | 3.1/4.3 | 17/22 | 2 | <1.2 | 20 | 1 |
| MP-20RM | - | - | 3/4 | 16 | 27/32 | 3.1/4.3 | 17/22 | 2 | <1.2 | 20 | 1 |
| MP-20RX | 26 | 26 | - | - | 46/52 | 1.8/2.5 | 30/40 | 1 | <1.3 | 20 | 1 |
| MP-20RXM | - | - | 1 | 20 | 46/52 | 1.8/2.5 | 30/40 | 1 | <1.3 | 20 | 1 |
| MP-2RZ | 18 | 18 | - | - | 10/11 | 4.6/6.9 | 7/10\ | 4 | <1.1 | 20 | 1 |
| MP-20RZM | - | - | 3/4 | 13 | 10/11 | 4.6/6.9 | 7/10 | 4 | <1.1 | 20 | 1 |
| MP-30R | 20 | 20 | - | - | 33/38 | 3.8/5.4 | 16/25 | 2.5 | <1.3 | 45 | 1 |
| MP-30RM | - | - | 3/4 | 16 | 33/38 | 3.8/5.4 | 16/25 | 2.5 | <1.3 | 45 | 1 |
| MP-30RX | 26 | 26 | - | - | 62/72 | 2.9/4.1 | 32/46 | 2 | <1.1 | 45 | 1 |
| MP-30RXM | - | - | 1 | 20 | 62/72 | 2.9/4.1 | 32/46 | 2 | <1.1 | 45 | 1 |
| MP-30RZ | 18 | 18 | - | - | 15/17 | 8/11 | 10/14 | 6 | <1.1 | 45 | 1 |
| MP-30RZM | - | - | 3/4 | 13 | 15/17 | 8/11 | 10/14 | 6 | <1.1 | 45 | 1 |
| MP-40R | 20 | 20 | - | - | 45/52 | 4.6/6.5 | 22/34 | 4 | <1.1 | 65 | 1 |
| MP-40RM | - | - | 3/4 | 16 | 45/52 | 4.6/6.5 | 22/34 | 4 | <1.1 | 65 | 1 |
| MP-40RX | 26 | 26 | - | - | 75/85 | 3.3/4.7 | 47/65 | 2 | <1.1 | 65 | 1 |
| MP-40RXM | - | - | 1 | 20 | 75/85 | 3.3/4.7 | 47/65 | 2 | <1.1 | 65 | 1 |
| MP-55R | 26 | 26 | - | - | 60/70 | 5.6/8.2 | 30/45 | 4 | <1.2 | 90 | 1or3 |
| MP-55RM | - | - | 1 | 20 | 60/70 | 5.6/8.2 | 30/45 | 4 | <1.2 | 90 | 1or3 |
| MP-55RZ | 26 | 26 | - | - | 25/28 | 10/14 | 15/22 | 8 | <1.1 | 90 | 1or3 |
| MP-55RZM | - | - | 1 | 20 | 25/28 | 10/14 | 15/22 | 8 | <1.1 | 90 | 1or3 |
| MP-70R | 26 | 26 | - | - | 86/97 | 6.7/9.7 | 50/72 | 4 | <1.1 | 150/180 | 1or3 |
| MP-70RM | - | - | 1 | 20 | 86/97 | 6.7/9.7 | 50/72 | 4 | <1.1 | 150/180 | 1or3 |
| MP-100R | 26 | 26 | - | - | 120/130 | 8.6/11.6 | 60/70 | 7/9 | <1.3 | 250/265 | 1or3 |
| MP-100RM | - | - | 1 | 20 | 120/130 | 8.6/11.6 | 60/70 | 7/9 | <1.3 | 250/265 | 1or3 |
| MP-100RX | - | - | 1.1/4 | 32 | 170 | 9 | 100 | 5 | <1.3 | 250 | 1or3 |
| MP-120R | - | - | 1.1/2 | 36 | 220 | 10.5 | 140 | 6 | <1.3 | 370 | 1or3 |
| MP-120RT | - | - | 2.1/4 | 48 | 220 | 10.5 | 140 | 6 | <1.3 | 370 | 1or3 |
| MPH-400CV5-D | - | - | 1.1/2 | 36 | 260 | 12.5 | 150 | 8.5 | <1.3 | 370 | 3 |
| MPH-401CV5-D | - | - | 1.1/2 | 36 | 330 | 18 | 200 | 12 | <1.3 | 750 | 3 |
| MPH-422CV5-D | - | - | 2 | 1.1/2 | 300 | 21 | 200 | 18.5 | <1.3 | 1500 | 1or3 |
| MPH-423CV5-D | - | - | 2 | 1.1/2 | 360 | 22 | 300 | 20.5 | <1.3 | 2200 | 1or3 |
