MP small electric water circulation magnetic pump cheap
- FOB Price
US $600.01 - 40000 set
US $50.040001 - 999999 set
- group name
- MAGNETIC PUMP
- Min Order
- 1 set
- brand name
- RONDA
- model
- MP
- Nearest port for product export
- Ningbo, Shanghai
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Thu, 26 Dec 2024 23:50:38 GMT
Paramtents
Theory Electromagnetic Pump
Structure Magnetic
Usage Chemical
Power Electric
Standard or Nonstandard Standard
Fuel Electric
Pressure Low Pressure
Application Chemical, water
Packging & Delivery
-
Min Order1 set
Briefing
2.Work as booster pump,chemical pump
3.Anti-corrosion,Non leak
Detailed

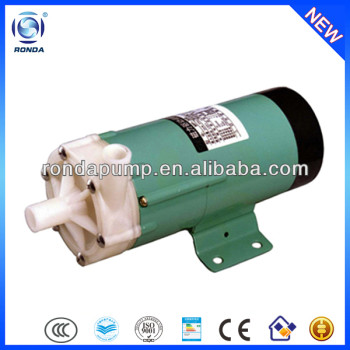

MP small electric water circulation magnetic pump cheap
1.Introduction:
1. MP small electric water circulation magnetic pump is manufactured by RONDA is compact structure, small volume, light weight.
2. Pump is widely used in all industries works as booster pump, chemical, lab pump, circulation pump.
3. Pump is designed with 50 or 60Hz to meet requirements of clients from different countries.
4. Pump is generally designed for no shaft seal, completely avoids defects of pollution after corrosion caused by liquid leakage, which exists in traditional mechanical shaft seal pump, it is the optimum liquid transport pump.
2. Products details:
| Working Principle: | Centrifugal, Magnetic coupled |
| Main applications: | Chemical, water |
| Driver: | Electric motor |
| Power Specs: | 380/415 V 3phase; 220/240 V 1phase; 50hz/60hz |
| Max.permissible fluid temperature: | 80°C(176°F) |
| Type of connection: | Thread |
| Installation position: | Horizontal |
| Casing/Inner parts material: | Fiber reinforced, Alumina ceramic/Fiber reinforced |
| Shaft seal type: | Static sealing |
| Free passage: | 0 mm |
| Maximum drive rating: | 2.2KW(3HP) |
| Maximum caliber: | 56mm(2 1/4inch) |
| Maximum discharge-side pressure: | 0.22MPa(2.2bar) |
| Maximum head: | 22m(72.2ft) |
| Flow rate range: | 2.8-380L/min(0.7-100.3US.GPM) |
3.Performance data:
| Model | Tube interface | Thread interface | Max. | Standard | Spes | Motor | |||||
| gravity | |||||||||||
| Inlet | Outlet | Inlet and outlet | Tube | Capacity | Head | Capacity | Head | Power | Phase | ||
| (mm) | (mm) | (mm) | (mm) | (L/min) | (m) | (L/min) | (m) | ||||
50Hz/ 60Hz | 50Hz/ 60Hz | 50Hz/ 60Hz | 50Hz/6 0Hz | ||||||||
| MP-6R | 14 | 14 | - | - | 8/9 | 1/1.4 | 2.8/5 | 0.8 | <1.2 | 3 | 1 |
| MP-6RZ | 14 | 14 | - | - | 5.5/6 | 2.1/2.7 | 5/8 | 1 | <1.1 | 3 | 1 |
| MP-10R | 14 | 14 | - | - | 11/12 | 1.5/2.1 | 5/8 | 1 | <1.1 | 6 | 1 |
| MP-10RN | 14 | 14 | - | - | 11/12 | 1.5/2.1 | 5/8 | 1 | <1.1 | 6 | 1 |
| MP-15R | 16 | 16 | - | - | 16/19 | 2.7/3.4 | 8/12 | 1.5 | <1.3 | 10 | 1 |
| MP-15RN | 16 | 16 | - | - | 16/19 | 2.7/3.4 | 8/12 | 1.5 | <1.3 | 10 | 1 |
| MP-15RM | - | - | 18 | 13 | 16/19 | 2.4/3.4 | 8/12 | 1.5 | <1.3 | 10 | 1 |
| MP-20R | 18 | 18 | - | - | 27/32 | 3.1/4.3 | 17/22 | 2 | <1.2 | 20 | 1 |
| MP-20RM | - | - | 18 | 16 | 27/32 | 3.1/4.3 | 30/40 | 1 | <1.2 | 20 | 1 |
| MP-20RX | 26 | 26 | - | - | 46/52 | 1.8/2.5 | 30/40 | 1 | <1.3 | 20 | 1 |
| MP-20RXM | - | - | 25 | 20 | 46/52 | 1.8/2.5 | 30/40 | 1 | <1.3 | 20 | 1 |
| MP-20RZ | 18 | 18 | . | . | 10/11 | 4 3/5 | 6.97/10 | 4 | <1.1 | 20 | 1 |
| MP-20RMZ | - | - | 18 | 13 | 10/11 | 4.6/6.9 | 41465 | 4 | <1.1 | 20 | 1 |
| MP-30R | 20 | 20 | - | - | 33/38 | 3.8/5.4 | 16/25 | 2.5 | <1.3 | 45 | 1 |
| MP-30RM | - | - | 18 | 16 | 33/38 | 3.8/5.4 | 16/25 | 2.5 | <1.3 | 45 | 1 |
| MP-30RX | 26 | 26 | - | - | 62/72 | 2.9/4.1 | 32/46 | 2 | <1.1 | 45 | 1 |
| MP-30RXM | - | - | 25 | 20 | 62/72 | 2.9/4.1 | 32/46 | 2 | <1.1 | 45 | 1 |
| MP-30RZ | 18 | 18 | - | - | 15/17 | 8/11 | 10/14 | 6 | <1.1 | 45 | 1 |
| MP-30RZM | - | - | 18 | 13 | 15/17 | 8/11 | 10/14 | 6 | <1.1 | 45 | 1 |
| MP-40R | 20 | 20 | - | - | 45/52 | 4.6/6.5 | 22/34 | 4 | <1.1 | 65 | 1 |
| MP-40RM | - | - | 18 | 16 | 45/52 | 4.6/6.5 | 22/34 | 4 | <1.1 | 65 | 1 |
| MP-40RX | 26 | 26 | - | - | 75/85 | 3.3/4.7 | 47/65 | 2 | <1.1 | 65 | 1 |
| MP-40RXM | - | - | 25 | 20 | 75/85 | 3.3/4.7 | 47/65 | 2 | <1.1 | 65 | 1 |
| MP-55R | 26 | 26 | - | - | 60/70 | 5.6/8.2 | 30/45 | 4 | <1.2 | 90 | 1 or 3 |
| MP-55RM | - | - | 25 | 20 | 60/70 | 5.6/8.2 | 30/45 | 4 | <1.2 | 90 | 1 or 3 |
| MP-55RZ | 26 | 26 | . | 25/28 | 10/14 | 15/22 | 8 | <1.1 | 90 | 1 or 3 | |
| MP-55RZM | . | . | 0.25 | 20 | 25/28 | 10/14 | 15/22 | 8 | <1.1 | 90 | 1 or 3 |
| MP-70R | 26 | 26 | - | - | 86/97 | 6.7/9.7 | 50/72 | 4 | <1.1 | 150/180 | 1 or 3 |
| MP-70RM | - | - | 25 | 20 | 86/97 | 6.7/9.7 | 50/72 | 4 | <1.1 | 150/180 | 1 or 3 |
| MP-100R | 26 | 26 | - | - | 120/130 | 8.6/11.6 | 60/70 | 7/9 | <1.3 | 250/265 | 1 or 3 |
| MP-100RM | - | - | 25 | 20 | 120/130 | 8.6/11.6 | 60/70 | 7/9 | <1.3 | 250/265 | 1 or 3 |
| MP-100RX | - | - | 32 | 32 | 170 | 9 | 100 | 5 | <1.3 | 250 | 1 or 3 |
| MP-120R | - | - | 40 | 36 | 220 | 10.5 | 140 | 6 | <1.3 | 250 | 1 or 3 |
| MP-120RT | - | - | 56 | 48 | 220 | 10.5 | 140 | 6 | <1.3 | 250 | 1 or 3 |
| MPH-400CV5-D | - | - | 36 | 36 | 220 | 12.5 | 150 | 8 | <1.3 | 370 | 3 |
| MPH-401CV5-D | - | - | 36 | 36 | 260 | 18 | 120 | 12 | <1.3 | 750 | 3 |
| MPH-422CV5-D | - | - | 40 | 38 | 320 | 21 | 160 | 18 | <1.3 | 1500 | 1 or 3 |
| MPH-423CV5-D | - | - | 40 | 38 | 380 | 22 | 230 | 18 | <1.3 | 2200 | 1 or 3 |
4. FAQ:
5. Pictures:
Excellent product made of carefully selected high-quality materials:
Meticulous details & fine apperance:
Safe packing with standard plywood case:
