CQ stainless steel monoblock magnetic water pump

FOB Price

US $500.01 - 40000 set

US $50.040001 - 999999 set

group name: MAGNETIC PUMP

Min Order: 1 set

brand name: RONDA

model: CQ

Nearest port for product export: Ningbo, Shanghai

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, DAF, DES

Acceptable payment methods: T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Thu, 26 Dec 2024 23:16:59 GMT

contact supplier

Paramtents

Theory Electromagnetic Pump
Structure Magnetic
Usage Chemical
Power Electric
Standard or Nonstandard Standard
Fuel Electric
Pressure Low Pressure
Application Chemical

Packging & Delivery

Min Order1 set

Briefing

Stainless steel monoblock magnetic water pump
1.Anti-corrosion,Non leak
2.Non-pollution
3.Small volume

Detailed

CQ stainless steel monoblock magnetic water pump

1. Introduction:

1. CQ stainless steel monoblock magnetic water pump is a full-sealed pump.

2. As being made of anticorrosive and highly strong engineering plastic, rigid ceramic and stainless steel.

3. It holds a good anti-corrosion performance and can have the medium being transported free of pollution.

4. Apply to pump acid liquor, lye, oil, rare & precious liquid, venom, volatile liquid or work as the unit marching circulating water equipment and filter separator.

2. Product details:

Working Principle:	Centrifugal, Magnetic
Main applications:	Chemical, water, oil
Driver:	Electric motor
Power Specs:	380/415 V 3phase; 220/240 V 1phase; 50hz/60hz
Max.permissible fluid temperature:	80°C(203°F)
Type of connection:	Flange
Installation position:	Horizontal
Casing/Inner parts material:	Stainless steel/Stainless steel
Shaft seal type:	Static sealing
Free passage:	0 mm
Maximum drive rating:	30KW(40HP)
Maximum caliber:	150mm(6inch)
Maximum discharge-side pressure:	0.5MPa(5bar)
Maximum head:	50m(164ft)
Flow rate range:	20-3350L/min(45.3-884.4 US.GPM)

3. Performance data:

Model	Inlet	Outlet	Head	Capacity	Power	Speed	Voltage	stainless steel
Model	(mm)	(mm)	(m)	(L/min)	(KW)	(r/min)	(Phase)
14CQ-5	14	10	5	20	0.18	2800	1ph/3ph
16CQ-8	16	12	8	30	0.18	2800	1ph/3ph
20CQ-12	20	12	12	50	0.37	2800	1ph/3ph
25CQ-15	25	20	15	110	1.1	2800	3phase
32CQ-15	32	25	15	110	1.1	2800	3phase
32CQ-25	32	25	25	90	1.1	2800	3phase
40CQ-20	40	32	20	180	2.2	2800	3phase
40CQ-32	40	32	32	200	4	2800	3phase
50CQ-25	50	40	25	240	4	2800	3phase
50CQ-32	50	40	32	220	4	2800	3phase
50CQ-50	50	32	50	130	5.5	2800	3phase
65CQ-25	65	50	25	280	5.5	2800	3phase
65CQ-32	65	50	32	450	5.5/7.5	2800	3phase
80CQ-32	80	65	32	850	11	2800	3phase
80CQ-50	80	65	50	850	15	2800	3phase
100CQ-35	100	80	35	1000	15	2800	3phase
100CQ-50	100	80	50	1000	18.5	2800	3phase
125CQ-32	125	100	32	1700	22	2800	3phase
125CQ-32	125	100	32	2500	30	1450	3phase
150CQ-25	150	125	25	3350	30	1450	3phase

4. FAQ:

CQ stainless steel monoblock magnetic water pump

5. Pictures:

Excellent product made of carefully selected high-quality materials:

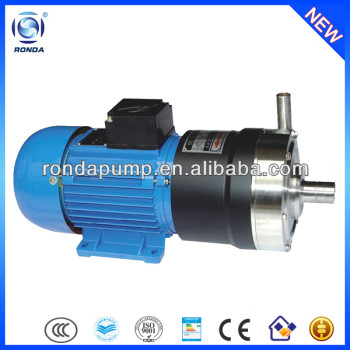

CQ stainless steel monoblock magnetic water pump

Maticulous details & fine apperance:

CQ stainless steel monoblock magnetic water pump

Safe packing with standard plywood case:

CQ stainless steel monoblock magnetic water pump
