2XZ industrial mini air vacuum pump
- FOB Price
US $1500.01 - 40000 set
US $100.040001 - 999999 set
- group name
- VACUUM PUMP
- Min Order
- 1 set
- brand name
- RONDA
- model
- 2XZ
- Nearest port for product export
- Ningbo, Shanghai
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Wed, 27 Nov 2024 10:16:22 GMT
Paramtents
Theory Vacuum Pump
Structure Rotary vane
Usage Air Pump
Power Electric
Standard or Nonstandard Standard
Fuel Electric
Pressure Middle pressure
Application Air and gas
Packging & Delivery
-
Min Order1 set
Briefing
2.Work as the backing pump
3.Popular in melting, welding, drying, ect
4.Light, little noise
Detailed

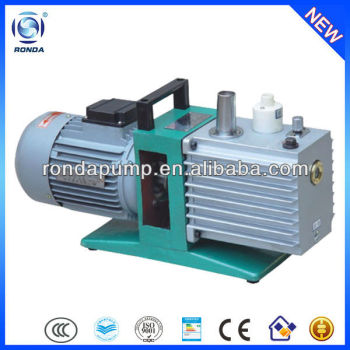

2XZ industrial mini air vacuum pump
1. Introduction:
1. 2XZ industrial mini air vacuum pump is a basic device to evacuate gas from closed container.
2. Which can be used alone or work as the backing pump of booster pump, diffusion pump, molecular pump and others.
3. It could pump not only ordinary gas, but also the mixed gas with little condensable gas.
4. It's popular in vacuum melting, vacuum welding, vacuum drying, vacuum seal, vacuum distillation, vacuum degassing, vacuum operating of electro vacuum and experimental apparatus, etc.
5. This pump is small, light and with little noise, which is suitable for the experimental application.
2. Product details:
| Working Principle: | Slices vacuum pump |
| Main applications: | Air & Gas |
| Driver: | Electric motor |
| Power Specs: | 380/415V 3phase; 220/240V 1phase; 50hz/60hz |
| Max.permissible fluid temperature: | 50°C(122°F) |
| Type of connection: | Flange |
| Installation position: | Horizontal |
| Casing/Inner parts material: | Cast iron, aluminium/Cast iron, aluminium |
| Shaft seal type: | Mechanical seal, Packing seal |
| Free passage: | 0mm |
| Limited vacuum: | 0.06pa(6X10-7bar) |
| Maximum drive rating: | 2.2KW(3HP) |
| Maximum caliber: | 40mm(1 1/2inch) |
| Flow rate range: | 0.5-15L/s(7.9-237.8US.GPM) |
3. Performance data:
| Model | 2XZ-0.5 | 2XZ-1 | 2XZ-2 | 2XZ-4 | 2XZ-8 | 2XZ-15 | ||
| Pumping capacity (L/s) | 0.5 | 1 | 2 | 4 | 8 | 15 | ||
| Ultimate vacuum pressure | Gas ballast closed | Pa | 6.0×10-2 | |||||
| Gas ballast open | 1.33 | |||||||
| Speed(r/min) | 1440 | 1440 | 1440 | 1440 | 1410 | 1420 | ||
| Motor power(KW) | 0.18 | 0.25 | 0.37 | 0.55 | 1.1 | 2.2 | ||
| Inlet(mm) | 16 | 16 | 25 | 25 | 40 | 40 | ||
| Weight(kg) | 19 | 20 | 22 | 25 | 55 | 75 | ||
| Voltage(V) | 220 | 220 | 220/380 | 220/380 | 380 | 380 | ||
| Oil consumption amount(L) | 0.42 | 0.4 | 0.48 | 0.55 | 0.7 | 1.5 | ||
| Temperature(°C) | ≤40 | ≤50 | ||||||
4. FAQ:
5. Pictures:
Excellent product made of carefully selected high-quality materials:
Meticulous details & fine appearance:
Many kinds of models can be chosen:
Goods are packed and ready to delivered:
