heavy duty high pressure water pump

FOB Price

US $30000.01 - 40000 set

US $300.040001 - 999999 set

group name: CENTRIFUGAL WATER PUMP

Min Order: 1 set

brand name: RONDA

model: D

Nearest port for product export: Ningbo, Shanghai

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, DAF, DES

Acceptable payment methods: T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Fri, 22 Nov 2024 07:26:34 GMT

contact supplier

Paramtents

Theory Centrifugal Pump
Structure Multistage Pump
Usage Water
Power Electric
Standard or Nonstandard Standard
Fuel Electric
Pressure High Pressure
Application Water
Working environment in or out door
Duty Heavy
Material by clients Yes
Working condition continuous
Voltage can be changed or not Yes
Frequency can be changed or not Yes

Packging & Delivery

Min Order1 set

Briefing

High pressure water pump D type is a horizontal water pump which is widely used in mines, power stations, chemical plants, etc.

Detailed

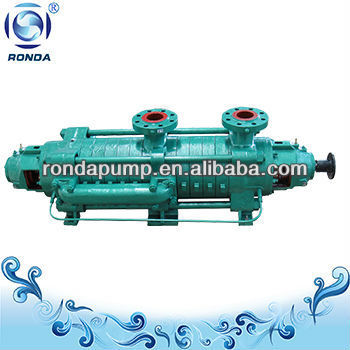

Heavy duty multistage high pressure water pump

Multistage pump D is centrifugal pump with big flow and head, this pump is widely used in mines, power station, etc. Heavy duty design. Power may be 380V, or 660V, 6000V, etc.

Working Principle:	Centrifugal, Multi-stage
Main applications:	Water
Driver:	Electric motor
Power Specs:	380/415 V 3phase; 50hz/60hz etc.
Max. permissible fluid temperature:	80°C /150°C /100°C
Type of connection:	Flange
Installation position:	Horizontal
Casing/Inner parts material:	Cast iron /Cast iron
Shaft seal type:	Mechanical seal; Packing gland
Free passage:	0.1 mm
Maximum gravity:	1.03
Maximum drive rating:	1600kW (2148hp)
Maximum caliber:	10 inch (250mm)
Maximum dischrage head:	594m
Flow rate range:	3-900 m³/h (50-15000l/m)
