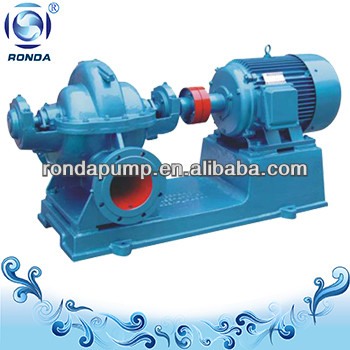

Big flow centrifugal double suction water pump

FOB Price

US $5000.01 - 40000 set

US $200.040001 - 999999 set

group name: CENTRIFUGAL WATER PUMP

Min Order: 1 set

brand name: RONDA

model: SH

Nearest port for product export: Ningbo, Shanghai

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, DAF, DES

Acceptable payment methods: T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Sat, 28 Dec 2024 21:08:21 GMT

contact supplier

Paramtents

Theory Centrifugal Pump
Structure Single-stage Pump
Usage Water
Power Electric
Standard or Nonstandard Standard
Fuel Electric
Pressure Low Pressure
Application Water
Frequency can be changed or not Yes
Material by clients Yes
Working condition continuous
Working environment in or out door
Voltage can be changed or not Yes
Duty Heavy

Packging & Delivery

Min Order1 set

Briefing

Double suction water pump S SH is for big flow water. This pump has split casing strcuture, it's easy to maintain.

Detailed

Double suction water pump

S SH pump is double suction pump with big flowrate. Casing is split type, which brings convenience for maintenance. This pump is widely used in big flowrate area like mines, power stations, etc.

Big flow centrifugal double suction water pump

Working Principle:	Impeller, Split case
Main applications:	Water
Driver:	Electric motor, Diesel Motor
Power Specs:	380/415 V 3phase; 50hz/60hz etc.
Max. permissible fluid temperature:	80°C
Type of connection:	Flange
Installation position:	Horizontal
Casing/Inner parts material:	Cast iron, Stainless Steel/Cast iron, Stainless steel, Bronze
Shaft seal type:	Mechanical seal
Free passage:	1mm
Maximum gravity:	1.1
Maximum drive rating:	1600kW (2148hp)
Maximum caliber:	32 inch (800mm)
Maximum dischrage head:	125m
Flow rate range:	80-6500 m³/h (1333.3-108333.3l/m)
