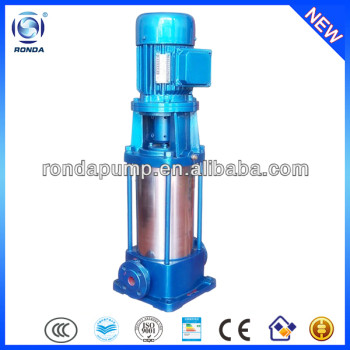

GDL electric vertical multistage centrifugal water transfer pump
- FOB Price
US $5000.01 - 40000 set
US $300.040001 - 999999 set
- group name
- CENTRIFUGAL WATER PUMP
- Min Order
- 1 set
- brand name
- RONDA
- model
- GDL
- Nearest port for product export
- Ningbo, Shanghai
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Sat, 28 Dec 2024 21:20:01 GMT
Paramtents
Theory Centrifugal Pump
Structure Multistage Pump
Usage Water
Power Electric
Standard or Nonstandard Standard
Fuel Electric
Pressure High Pressure
Application Water
Packging & Delivery
-
Min Order1 set
Briefing
2.Energy conversation
3.High quality material
4.Widely used
Detailed
GDL electric vertical multistage centrifugal water transfer pump
1. Introduction:
1. GDL electric vertical multistage centrifugal water transfer pump has the advantages of energy conversation, small floor space, easy installation, stable performance, etc.
2. With 304 stainless steel shell and wear-resistant axle seal, it is no leakage and long service life.
3. It's an ideal pump for the delivery of cold or hot water, or fluid similar to water.
4. Multi-stage pump is with higher head (discharge pressure) than regular single stage one.
5. Widely used in energy industry, metallurgy, water processing, chemical industry, spinning industry, papermaking, restaurant, hotels, bathroom, etc. Also works for low degree corrosive fluid.
2. Product details:
| Working Principle: | Centrifugal, Multi-stage |
| Main applications: | Water |
| Driver: | Electric motor |
| Power Specs: | 380/415V 3phase; 50hz/60hz |
| Max.permissible fluid temperature: | 80°C(176°F) |
| Type of connection: | Flange |
| Installation position: | Horizontal |
| Casing/Inner parts material: | Cast iron /Cast iron |
| Shaft seal type: | Mechanical seal |
| Free passage: | 0.1 mm |
| Maximum drive rating: | 90KW(120HP) |
| Maximum caliber: | 150mm(6inch) |
| Maximum discharge-side pressure: | 2.0MPa(20bar) |
| Maximum head: | 200m(656ft) |
| Flow rate range: | 1.4-194m3/h(6.2-853.6US.GPM) |
3. Performance data:
| Model | Stage | Capacity | Head | Speed | Power | Efficiency | (NPSH)r |
| (m3/h) | (m) | (r/min) | (KW) | (%) | (m) | ||
| 25GDL2-12 | 3 | 1.4 | 36 | 2900 | 1.1 | 23 | 2.9 |
| 4 | 2 | 48 | 1.1 | 30 | 2.9 | ||
| 5 | 2.4 | 60 | 2 | 32 | 2.9 | ||
| 6 | 72 | 2 | 2.9 | ||||
| 7 | 84 | 2 | 2.9 | ||||
| 8 | 96 | 2.2 | 2.9 | ||||
| 9 | 108 | 2 | 2.9 | ||||
| 10 | 120 | 3 | 2.9 | ||||
| 11 | 132 | 3 | 2.9 | ||||
| 12 | 144 | 3 | 2.9 | ||||
| 13 | 156 | 4 | 2.9 | ||||
| 14 | 168 | 4 | 2.9 | ||||
| 15 | 180 | 4 | 2.9 | ||||
| …… | |||||||
| 125GDL100-20 | 2 | 75 | 40 | 2900 | 18.5 | 65 | 4.5 |
| 3 | 100 | 60 | 30 | 74 | 4.5 | ||
| 4 | 130 | 80 | 37 | 72 | 4.5 | ||
| 5 | 100 | 45 | 4.5 | ||||
| 6 | 120 | 55 | 4.5 | ||||
| 7 | 140 | 75 | 4.5 | ||||
| 8 | 160 | 75 | 4.5 | ||||
| 9 | 180 | 90 | 4.5 | ||||
| 10 | 200 | 90 | 4.5 | ||||
| 150GDL160-20 | 2 | 108 | 40 | 2900 | 30 | 69 | 4.5 |
| 3 | 160 | 60 | 37 | 78 | 4.5 | ||
| 4 | 194 | 80 | 55 | 77 | 4.5 | ||
| 5 | 100 | 75 | 4.5 | ||||
| 6 | 120 | 75 | 4.5 | ||||
| 7 | 140 | 90 | 4.5 | ||||
Parameter table above is only a part of whole. For more, please contact us directly.
4. FAQ:
5. Pictures:
Excellent product made of carefully selected high-quality materials:
Meticulous details & fine appearance:
Safe packing with standard plywood case:
