ZX horizontal self suck centrifugal sea water pump

FOB Price

US $5000.01 - 40000 set

US $60.040001 - 999999 set

group name: CENTRIFUGAL WATER PUMP

Min Order: 1 set

brand name: RONDA

model: ZX

Nearest port for product export: Ningbo, Shanghai

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, DAF, DES

Acceptable payment methods: T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Sun, 29 Dec 2024 11:52:51 GMT

contact supplier

Paramtents

Theory Centrifugal Pump
Structure Single-stage Pump
Usage Water
Power Electric
Standard or Nonstandard Standard
Fuel Electric
Pressure Middle pressure
Application Water

Packging & Delivery

Min Order1 set

Briefing

1.Horizontal self suck centrifugal sea water pump
2.Work for water
3.Simple,easy operation
4.Equipped with diesel engine

Detailed

ZX horizontal self suck centrifugal sea water pump

1. Introduction:

1. ZX horizontal self suck centrifugal sea water pump works for water or medium similar to water that viscosity below 5°E and temperature below 80°C(176°F).

2. It is compact, easy to operate, running stable, easy to maintain, efficient, with long service life and large suction capacity.

3. Pump could work without bottom valve in channel but with the quantitative lead liquid that kept in pump before operation.

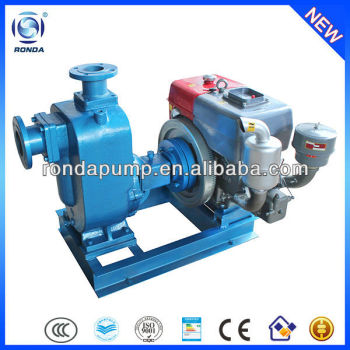

4. Pump may equipped with diesel engine for outdoor and wild water supply and drainage.

5. Widely used in city environmental protection , construction, fire fighting, chemical industry, pharmacy, dyes, dyeing, brewing, electric power, electric plating, paper-making, industrial and mineral rinse, equipment cooling and so on.

2. Product details:

Working Principle:	Centrifugal, Self-priming
Main applications:	Water
Driver:	Electric motor, Diesel Motor
Power Specs:	380/415V 3phase; 50hz/60hz
Max.permissible fluid temperature:	80°C(176°F)
Type of connection:	Flange
Installation position:	Horizontal
Casing/Inner parts material:	Cast iron, Stainless Steel/Cast iron, Stainless steel, Bronze
Shaft seal type:	Mechanical seal
Free passage:	0mm
Maximum drive rating:	132KW(180HP)
Maximum caliber:	300mm(12inch)
Maximum head:	80m(262.4ft)
Maximum suction:	6.5m(21.3ft)
Flow rate range:	3.2-600m³/h(14.1-2640US.GPM)

3. Performance data:

Model	Caliber	Capacity	Head	Power	Speed	Suction
Model	(mm)	(m³/h)	(m)	(kw)	(r/min)	(m)
25ZX3.2-20	25	3.2	20	1.1	2900	6.5
25ZX3.2-32	25	3.2	32	1.5	2900	6.5
32ZX3.2-20	32	3.2	20	1.1	2900	6.5
32ZX3.2-32	32	3.2	32	1.5	2900	6.5
32ZX3.2-50	32	3.2	50	3	2900	6.5
40ZX6.3-20	40	6.3	20	1.5	2900	6.5
40ZX6.3-32	40	6.3	32	2.2	2900	6.5
40ZX10-40	40	10	40	4	2900	6.5
40ZX6.3-50	40	6.3	50	4	2900	6.5
50ZX15-12	50	15	12	1.5	2900	6.5
50ZX18-20	50	18	20	2.2	2900	6.5
50ZX12.5-32	50	12.5	32	3	2900	6.5
50ZX12.5-40	50	12.5	40	4	2900	6.5
50ZX12.5-50	50	12.5	50	5.5	2900	6.5
50ZX20-30	50	20	30	4	2900	6.5
50ZX14-35	50	14	35	4	2900	6.5
50ZX10-40	50	10	40	4	2900	6.5
50ZX15-60	50	15	60	7.5	2900	6.5
50ZX20-75	50	20	75	11	2900	6.5
65ZX30-15	65	30	15	3	2900	6.5
65ZX25-32	65	25	32	5.5	2900	6
65ZX25-50	65	25	50	7.5	2900	6
65ZX25-70	65	25	70	15	2900	6
80ZX35-13	80	35	13	3	2900	6
80ZX43-17	80	43	17	4	2900	6
80ZX40-22	80	40	22	5.5	2900	6
80ZX50-20	80	50	20	5.5	2900	6
80ZX50-25	80	50	25	7.5	2900	6
80ZX50-32	80	50	32	7.5	2900	6
80ZX50-40	80	50	40	11	2900	6
80ZX60-55	80	60	55	18.5	2900	6
80ZX60-70	80	60	70	22	2900	6
100ZX80-20	100	80	20	11	2900	6
100ZX100-20	100	100	20	11	2900	6
100ZX100-32	100	100	32	15	2900	6
100ZX100-40	100	100	40	18.5	2900	6
100ZX100-50	100	100	50	22	2900	6
100ZX100-65	100	100	65	30	2900	6
100ZX70-75	100	70	75	30	2900	6
150ZX180-28	150	180	28	30	2900	6
150ZX170-55	150	170	55	45	2900	5
150ZX170-65	150	170	65	55	2900	5
150ZX160-80	150	160	80	55	2900	5
200ZX400-32	200	400	32	55	1450	5
200ZX280-63	200	280	63	90	1450	5
200ZX350-65	200	350	65	110	1450	5
250ZX550-32	250	550	32	75	1450	5
250ZX400-50	250	400	50	90	1450	5
250ZX450-55	250	450	55	110	1450	5
300ZX600-32	300	600	32	90	1450	5
300ZX500-50	300	500	50	110	1450	5
300ZX550-55	300	550	55	132	1450	5
