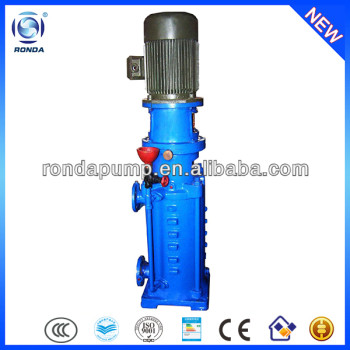

DL/DLR vertical multi-stage boiler water circulation pump

FOB Price

US $30000.01 - 40000 set

US $300.040001 - 999999 set

group name: CENTRIFUGAL WATER PUMP

Min Order: 1 set

brand name: RONDA

model: DL/DLR

Nearest port for product export: Ningbo, Shanghai

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, DAF, DES

Acceptable payment methods: T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Fri, 22 Nov 2024 21:01:35 GMT

contact supplier

Paramtents

Theory Centrifugal Pump
Structure Multistage Pump
Usage Water
Power Electric
Standard or Nonstandard Standard
Fuel Electric
Pressure High Pressure
Application Water

Packging & Delivery

Min Order1 set

Briefing

1.vertical multi-stage boiler water circulation pump
2.compact structure,energy-saving
3.working for rinsing
4.widely used

Detailed

DL/DLR vertical multi-stage boiler water circulation pump

1. Introduction:

1. DL/DLR vertical multi-stage boiler water circulation pump are widely used in high building water supply with high efficiency.

2. Pump with merits of the advanced designing, stable performance, compact structure, little noise and energy-saving.

3. DL works for the rinsing or non-corrosive liquid with temperature below 80°C(176°F) and DLR always deliver the medium that temperature is below 150°C(302°F).

4. Mainly used in water supply or drainage of high-rise buildings, fire control system, heating system, air-conditioning system, hotels, superstore, office building, factories, industrial and mining enterprises, municipal engineering, spray system, boilers, chemical industry, etc.

2. Product details:

Working Principle:	Centrifugal, Multi-stage
Main applications:	Water
Driver:	Electric motor
Power Specs:	380/415V 3phase; 50hz/60hz etc.
Max.permissible fluid temperature:	80°C(176°F)/150°C(302°F)
Type of connection:	Flange
Installation position:	Vertical
Casing/Inner parts material:	Cast iron /Cast iron
Shaft seal type:	Mechanical seal
Free passage:	0.1 mm
Maximum drive rating:	200KW(270HP)
Maximum caliber:	200mm(8inch)
Maximum discharge-side pressure:	2.5MPa(25bar)
Maximum head:	250m(820ft)
Flow rate range:	6-300m³/h(26.4-1320US.GPM)

3. Performance data:

Model	Stage	Caliber	Capacity	Head	Power	Speed	(NPSH)r
Model	Stage	(mm)	(m³/h)	(m)	(KW)	(r/min)	(m)
40DL 6-12 DLR	2	40	6	24	1.5	1480	3.2
	3			36	2.2
	4			48	3
	5			60	4
	6			72	4
	7			84	5.5
	8			96	5.5
	9			108	7.5
	10			120	7.5
	11			132	7.5
	12			144	11
50DL 12.5-12.5 DLR	2	50	12.5	25	3	1480	2.2
	3			37.5	3
	4			50	4
	5			62.5	5.5
	6			75	7.5
	7			87.5	7.5
	8			100	7.5
	9			112.5	11
	10			125	11
…
200DL 300-20 DLR	2	200	300	40	55	1480	5
	3			60	75
	4			80	110
	5			100	132
	6			120	160
	7			140	160
	8			160	200

Parameter table above is only a part of whole. For more, please contact us directly.

4. FAQ:

DL/DLR vertical multi-stage boiler water circulation pump

5. Pictures:

Excellent product made of carefully selected high-quality materials:

DL/DLR vertical multi-stage boiler water circulation pump

Goods are packed and ready to delivered:

DL/DLR vertical multi-stage boiler water circulation pump
