Single stage double suction split casing water pump
- FOB Price
US $5000.01 - 40000 set
US $200.040001 - 999999 set
- group name
- CENTRIFUGAL WATER PUMP
- Min Order
- 1 set
- brand name
- RONDA
- model
- OS
- Nearest port for product export
- Ningbo, Shanghai
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Sun, 29 Dec 2024 11:25:50 GMT
Paramtents
Theory Centrifugal Pump
Structure Single-stage Pump
Usage Water
Power Electric
Standard or Nonstandard Standard
Fuel Electric
Pressure Low Pressure
Application Water
Packging & Delivery
-
Min Order1 set
Briefing
2.Energy-saving
3.Bigger capacity
4.Easy maintenance, easy installation
Detailed

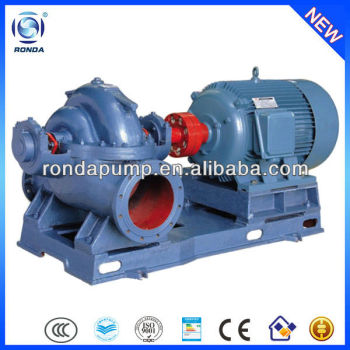

Single stage double suction split casing water pump
1. Introduction:
1. Single stage double suction split casing water pump is energy-saving, small vibration, low noise.
2. Pump is used to deliver clear water without solid particles or liquid similar to clear water physically and chemically.
3. Double suction pump means water flooded into pump through two sides of impeller, thus the capacity of pump will be much bigger than regular one.
4. The special split casing structure brings the merits of easy maintenance, easy installation.
5. pump is widely used in all industries as a high capacity drainage pump, water supply pump, water treatment pump, etc.
2. Product details:
| Working Principle: | Double suction, Split case |
| Main applications: | Water |
| Driver: | Electric motor, Diesel Motor |
| Power Specs: | 380/415V 3phase;50hz/60hz |
| Max.permissible fluid temperature: | 80°C(176°F) |
| Type of connection: | Flange |
| Installation position: | Horizontal |
| Casing/Inner parts material: | Cast iron, Stainless Steel/Cast iron, Stainless steel, Bronze |
| Shaft seal type: | Mechanical seal |
| Free passage: | 1mm |
| Maximum drive rating: | 1600KW(2150HP) |
| Maximum caliber: | 800mm(32inch) |
| Maximum head: | 125m(410ft) |
| Maximum discharge-side pressure: | 1.25MPa(12.5bar) |
| Flow rate range: | 133-5500m3/h(585.2-24200US.GPM) |
3. Performance data:
| Model | Capacity | Head | Speed | Motor power | (NPSH)r |
| (m3/h) | (m) | (r/min) | (KW) | (m) | |
| 150OS-78 | 160 | 78 | 2950 | 55 | 4.5 |
| 150OS-78A | 140 | 60 | 2950 | 45 | 4.5 |
| 150OS-50 | 160 | 50 | 2950 | 37 | 4.5 |
| 150OS-50A | 140 | 39 | 2950 | 30 | 4.5 |
| 150OS-50B | 133 | 36 | 2950 | 22 | 4.5 |
| 200OS-95 | 280 | 95 | 2950 | 132 | 5 |
| 200OS-95A | 268 | 87 | 2950 | 110 | 5 |
| 200OS-95B | 245 | 72 | 2950 | 75 | 5 |
| 200OS-63 | 280 | 63 | 2950 | 75 | 5 |
| 200OS-63A | 245 | 48 | 2950 | 55 | 5 |
| 200OS-42 | 280 | 42 | 2950 | 45 | 5 |
| 200OS-42A | 245 | 36 | 2950 | 37 | 5 |
| 250OS-65 | 485 | 65 | 1450 | 132 | 3.8 |
| 250OS-65A | 420 | 48 | 1450 | 90 | 3.8 |
| 250OS-39 | 485 | 39 | 1450 | 75 | 3.8 |
| 250OS-39A | 420 | 29 | 1450 | 55 | 3.8 |
| 250OS-24 | 485 | 24 | 1450 | 45 | 3.8 |
| 250OS-24A | 420 | 20 | 1450 | 37 | 3.8 |
| 250OS-14 | 485 | 14 | 1450 | 30 | 3.8 |
| 250OS-14A | 420 | 10 | 1450 | 18.5 | 3.8 |
| … | |||||
| 800OS-22 | 5500 | 22 | 730 | 450 | 7 |
| 4400 | 14 | 585 | 250 | 5 | |
| 800OS-22A | 4830 | 17 | 730 | 315 | 7 |
| 3870 | 11 | 585 | 185 | 5 | |
| 800OS-32 | 5500 | 32 | 730 | 630 | 7 |
| 4400 | 20 | 585 | 315 | 4.5 | |
| 800OS-32A | 4950 | 26 | 730 | 450 | 7 |
| 3960 | 17 | 585 | 250 | 4.5 | |
| 800OS-47 | 5500 | 47 | 730 | 1000 | 6.5 |
| 4400 | 30 | 585 | 450 | 4.2 | |
| 800OS-47A | 5070 | 40 | 730 | 710 | 6.5 |
| 4060 | 25 | 585 | 355 | 4.2 | |
| 800OS-76 | 5500 | 76 | 730 | 1600 | 6 |
| 4400 | 49 | 585 | 800 | 4.2 | |
| 800OS-76A | 5080 | 65 | 730 | 1250 | 6 |
| 4070 | 42 | 585 | 630 | 4.2 | |
| 800OS-76B | 4680 | 55 | 730 | 1000 | 6 |
| 3750 | 35 | 585 | 500 | 4 | |
Parameter table above is only a part of whole. For more, please contact us directly.
4. FAQ:
5. Pictures:
Excellent product made of carefully selected high-quality materials:
Meticulous details & fine appearance:
Goods are packed and ready to delivered:
