SLB single stage double suction centrifugal water pump
- FOB Price
US $5000.01 - 40000 set
US $200.040001 - 999999 set
- group name
- CENTRIFUGAL WATER PUMP
- Min Order
- 1 set
- brand name
- RONDA
- model
- SLB
- Nearest port for product export
- Ningbo, Shanghai
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Sun, 24 Nov 2024 20:16:36 GMT
Paramtents
Theory Centrifugal Pump
Structure Single-stage Pump
Usage Water
Power Electric
Standard or Nonstandard Standard
Fuel Electric
Pressure Low Pressure
Application Water
Packging & Delivery
-
Min Order1 set
Briefing
2.Work for clear water
3.Stable performance,big capacity
4.Widely used
Detailed

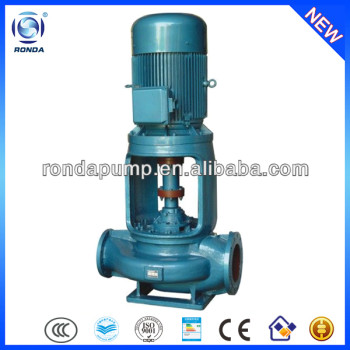

SLB single stage double suction centrifugal water pump
1. Introduction:
1. SLB single stage double suction centrifugal water pump is small floor space, stable performance, high efficiency, low vibration, ect.
2. It is used to deliver clear water without solid particles or liquid similar to clear water physically and chemically.
3. Pump is special made for the city water supply system , heating system, air conditioning refrigeration system, ect.
4. Widely used in water supply, water treatment plant, pump station, power station, water circulation of air-con, hot water circulation of heating system, industry water system, fire extinguishing system, etc.
2. Product details:
| Working Principle: | Centrifugal |
| Main applications: | Water |
| Driver: | Electric motor, Diesel Motor |
| Power Specs: | 380/415V 3phase; 50hz/60hz etc. |
| Max.permissible fluid temperature: | 120°C(248°F) |
| Type of connection: | Flange |
| Installation position: | Vertical |
| Casing/Inner parts material: | Cast iron, Stainless Steel/Cast iron, Stainless steel, Bronze |
| Shaft seal type: | Mechanical seal |
| Free passage: | 1mm |
| Maximum drive rating: | 1600KW(2150HP) |
| Maximum caliber: | 500mm(20inch) |
| Maximum discharge-side pressure: | 0.9MPa(9bar) |
| Maximum head: | 90mm(295.2ft) |
| Flow rate range: | 167-2600m3/h(734.8-11440US.GPM) |
3. Performance data:
| Model | Capacity | Head | Efficiency | Motor P | Speed | (NPSH)r |
| (m3/h) | (m) | (%) | (KW) | (r/min) | (m) | |
| SLB150-400(I) | 320 | 50 | 79.2 | 75 | 1450 | 4.8 |
| SLB150-400(I)A | 300 | 45 | 78.8 | 55 | 1450 | 4.8 |
| SLB150-400(I)B | 280 | 40 | 78.7 | 45 | 1450 | 4.8 |
| SLB150-400(I)C | 260 | 35 | 78.5 | 37 | 1450 | 4.8 |
| SLB150-400 | 200 | 50 | 79.1 | 45 | 1450 | 4.8 |
| SLB150-400A | 187 | 45 | 78.9 | 37 | 1450 | 4.8 |
| SLB150-400B | 175 | 40 | 78.2 | 37 | 1450 | 4.8 |
| SLB150-400C | 167 | 35 | 77.9 | 30 | 1450 | 4.8 |
| SLB150-320(I) | 320 | 32 | 78.3 | 45 | 1450 | 4.7 |
| SLB150-320(I)A | 300 | 28 | 77.1 | 37 | 1450 | 4.7 |
| SLB150-320(I)B | 280 | 24 | 76.8 | 30 | 1450 | 4.7 |
| SLB150-320 | 200 | 32 | 77.9 | 30 | 1450 | 4.7 |
| SLB150-320A | 187 | 28 | 77.3 | 22 | 1450 | 4.7 |
| SLB150-320B | 175 | 24 | 76.9 | 18.5 | 1450 | 4.7 |
| SLB150-260(I) | 320 | 22 | 80.2 | 30 | 1450 | 4.6 |
| SLB150-260(I)A | 300 | 18 | 79.5 | 22 | 1450 | 4.6 |
| SLB150-260(I)B | 280 | 14 | 78.8 | 15 | 1450 | 4.6 |
| … | ||||||
| SLB400-500(I) | 1350 | 60 | 84.1 | 315 | 1450 | 5.2 |
| SLB400-500(I)A | 1300 | 50 | 83.8 | 280 | 1450 | 5.2 |
| SLB400-500(I)B | 1250 | 45 | 83.3 | 250 | 1450 | 5.2 |
| SLB400-500(I)C | 1200 | 42 | 82.8 | 220 | 1450 | 5.2 |
| SLB400-500 | 1200 | 70 | 87.5 | 315 | 1450 | 5.2 |
| SLB400-500A | 1170 | 65 | 84.8 | 280 | 1450 | 5.2 |
| SLB400-500B | 1100 | 55 | 83.7 | 250 | 1450 | 5.2 |
| SLB400-500C | 1000 | 45 | 82.5 | 200 | 1450 | 5.2 |
| SLB400-480(I) | 1600 | 40 | 83.6 | 250 | 970 | 5.2 |
| SLB400-480(I)A | 1500 | 32 | 82.2 | 200 | 970 | 5.2 |
| SLB400-480(I)B | 1400 | 26 | 81.5 | 160 | 970 | 5.2 |
| SLB400-480(I)C | 1300 | 20 | 80.7 | 110 | 970 | 5.2 |
| SLB400-480 | 1080 | 40 | 85 | 185 | 970 | 5.2 |
| SLB400-480A | 1020 | 32 | 84.5 | 160 | 970 | 5.2 |
| SLB400-480B | 950 | 26 | 84 | 110 | 970 | 5.2 |
| SLB400-480C | 900 | 22 | 83.5 | 90 | 970 | 5.2 |
| SLB500-480(I) | 1600 | 60 | 83.1 | 355 | 1450 | 5.3 |
| SLB500-480(I)A | 1500 | 55 | 82.7 | 315 | 1450 | 5.3 |
| SLB500-480(I)B | 1450 | 50 | 81.8 | 280 | 1450 | 5.3 |
| SLB500-480(I)C | 1400 | 45 | 81.5 | 250 | 1450 | 5.3 |
| SLB500-480 | 1350 | 60 | 83.3 | 280 | 1450 | 5.3 |
| SLB500-480A | 1300 | 55 | 82.5 | 250 | 1450 | 5.3 |
| SLB500-480B | 1250 | 50 | 82.1 | 220 | 1450 | 5.3 |
| SLB500-480C | 1200 | 45 | 81.8 | 200 | 1450 | 5.3 |
| SLB500-500(I) | 2600 | 32 | 81.2 | 315 | 970 | 5.3 |
| SLB500-500(I)A | 2500 | 28 | 80.8 | 280 | 970 | 5.3 |
| SLB500-500(I)B | 2400 | 24 | 80.2 | 250 | 970 | 5.3 |
| SLB500-500(I)C | 2300 | 20 | 80.1 | 220 | 970 | 5.3 |
| SLB500-500 | 2020 | 32 | 81.5 | 220 | 970 | 5.3 |
| SLB500-500A | 1950 | 28 | 80.7 | 200 | 970 | 5.3 |
| SLB500-500B | 1880 | 24 | 80.2 | 160 | 970 | 5.3 |
| SLB500-500C | 1800 | 20 | 80.3 | 132 | 132 | 5.3 |
Parameter table above is only a part of whole. For more, please contact us directly.
4. FAQ:
5. Pictures:
Excellent product made of carefully selected high-quality materials:
