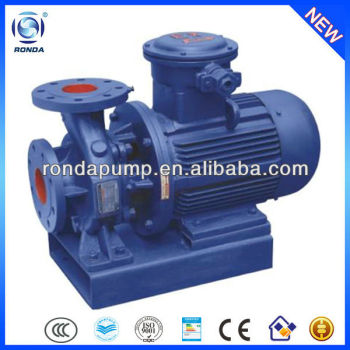

ISWB horizontal pipeline end suction circulator oil pump
- FOB Price
US $5000.01 - 40000 set
US $50.040001 - 999999 set
- group name
- CENTRIFUGAL WATER PUMP
- Min Order
- 1 set
- brand name
- RONDA
- model
- ISWB
- Nearest port for product export
- Ningbo, Shanghai
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Fri, 22 Nov 2024 00:59:48 GMT
Paramtents
Theory Centrifugal Pump
Structure Single-stage Pump
Usage Oil
Power Electric
Standard or Nonstandard Standard
Fuel Electric
Pressure Low Pressure
Application Oil
Packging & Delivery
-
Min Order1 set
Briefing
2.Transport oil
3.High-effective,energy-saving
4.Widely used
Detailed
ISWB horizontal pipeline end suction circulator oil pump
1. Introduction:
1. ISWB horizontal pipeline end suction circulator oil pump is a high-effective energy-saving, easily dismantled product designed by Ronda.
2. It is used to transport the liquids containing no solid grain, corrosive and the viscosity of which is similar to oil.
3. Easy to maintain. Not necessary to remove the pipeline for check-out and maintenance, only to take out the nuts on the pump lid, the motor and the driving components.
4. Widely used in light&textile industry, petroleum, chemical industry, metallurgical industry, mining, medicine and synthetic fiber etc.
2. Product details:
| Working Principle: | Centrifugal |
| Main applications: | Oil |
| Driver: | Electric motor |
| Power Specs: | 380/415V 3phase; 50hz/60hz |
| Max.permissible fluid temperature: | 120°C(248°F) |
| Type of connection: | Flange |
| Installation position: | horizontal |
| Casing/Inner parts material: | Cast iron, Stainless steel/Cast iron, Stainless steel |
| Shaft seal type: | Mechanical seal |
| Free passage: | 0.2mm |
| Maximum drive rating: | 250KW(340HP) |
| Maximum caliber: | 500mm(20inch) |
| Maximum discharge-side pressure: | 1.6MPa(16bar) |
| Maximum head: | 160mm(524.8ft) |
| Flow rate range: | 1.1-2400m3/h(4.8-10560US.GPM) |
3. Performance data:
| Model | Capacity | Head | Power | Speed | Eff. | (NPSH)r | Weight | |
| (m3/h) | (L/s) | (m) | (KW) | (r/min) | (%) | (m) | (kg) | |
| 15-80 | 1.1 | 0.3 | 8.5 | 0.18 | 2800 | 32.1 | 2.3 | 20 |
| 1.5 | 0.42 | 8 | ||||||
| 2 | 0.56 | 7 | ||||||
| 20-110 | 1.8 | 0.5 | 16 | 0.37 | 2800 | 32.4 | 2.3 | 25 |
| 2.5 | 0.69 | 15 | ||||||
| 3.3 | 0.91 | 13.5 | ||||||
| 20-125 | 1.8 | 0.5 | 21 | 0.75 | 2800 | 28.1 | 2.3 | 35 |
| 2.5 | 0.69 | 20 | ||||||
| 3.3 | 0.91 | 18.6 | ||||||
| 20-160 | 1.8 | 0.5 | 33 | 1.5 | 2950 | 18.8 | 2.3 | 38 |
| 2.5 | 0.69 | 32 | ||||||
| 3.3 | 0.91 | 30 | ||||||
| 25-110 | 2.8 | 0.78 | 16 | 0.55 | 2950 | 41.2 | 2.3 | 31 |
| 4 | 1.11 | 15 | ||||||
| 5.2 | 1.44 | 13.5 | ||||||
| 25-125 | 2.8 | 0.78 | 20.5 | 0.75 | 2950 | 37.5 | 2.3 | 35 |
| 4 | 1.11 | 20 | ||||||
| 5.2 | 1.44 | 18 | ||||||
| 25-125A | 2.5 | 0.39 | 17 | 0.75 | 2950 | 36.6 | 2.3 | 35 |
| 3.6 | 1 | 16 | ||||||
| 4.6 | 1.28 | 14.5 | ||||||
| 25-160 | 2.8 | 0.78 | 33 | 1.5 | 2950 | 29.9 | 2.3 | 44 |
| 4 | 1.11 | 32 | ||||||
| 5.2 | 1.44 | 30 | ||||||
| 25-160A | 2.6 | 0.72 | 29 | 1.1 | 2950 | 29 | 2.3 | 40 |
| 3.7 | 1.03 | 28 | ||||||
| 4.9 | 1.36 | 26 | ||||||
| 32-100 | 3.5 | 0.97 | 14.5 | 0.55 | 2950 | 45.9 | 2.3 | 35 |
| 4.5 | 1.24 | 12.5 | ||||||
| 5.3 | 1.47 | 11 | ||||||
| 32-125 | 3.5 | 0.97 | 22 | 1.1 | 2950 | 42.2 | 2.3 | 38 |
| 5 | 1.39 | 20 | ||||||
| 6.5 | 1.8 | 18 | ||||||
| 32-125A | 3.1 | 0.86 | 20 | 0.75 | 2950 | 41.2 | 2.3 | 37 |
| 4.5 | 1.25 | 16 | ||||||
| 5.8 | 1.61 | 10 | ||||||
| 32-160 | 3.5 | 0.97 | 34 | 1.5 | 2950 | 32.8 | 2.3 | 49 |
| 4.5 | 1.25 | 32 | ||||||
| 6 | 1.67 | 26 | ||||||
| 32-160A | 3.5 | 0.97 | 26.5 | 1.1 | 2950 | 31.8 | 2.3 | 43 |
| 4.5 | 1.25 | 25 | ||||||
| 6 | 1.67 | 19 | ||||||
| 32-200 | 3.5 | 0.97 | 53 | 3 | 2950 | 23.8 | 2.3 | 68 |
| 4.5 | 1.25 | 50 | ||||||
| 5.5 | 1.53 | 45 | ||||||
| 32-200A | 3 | 1.08 | 43 | 2.2 | 2950 | 22.9 | 2.3 | 58 |
| 4 | 1.11 | 40 | ||||||
| 5 | 1.17 | 37 | ||||||
| … … | ||||||||
| 400-300 | 820 | 228 | 23 | 90 | 1480 | 78.2 | 6 | 1450 |
| 1080 | 300 | 20 | ||||||
| 1300 | 361 | 16 | ||||||
| 400-315 | 820 | 228 | 36.5 | 132 | 1480 | 81.1 | 6 | 1740 |
| 1080 | 300 | 32 | ||||||
| 1300 | 361 | 27 | ||||||
| 400-450 | 1500 | 416.7 | 23 | 160 | 980 | 80.6 | 6.5 | 2420 |
| 2000 | 555.6 | 20 | ||||||
| 2400 | 666.7 | 15 | ||||||
| 400-450A | 1400 | 388.9 | 20 | 132 | 980 | 79.3 | 6.5 | 1940 |
| 1860 | 516.7 | 17 | ||||||
| 2250 | 625 | 14 | ||||||
| 400-500 | 1500 | 416.7 | 34 | 250 | 980 | 82.8 | 6.5 | 2980 |
| 2000 | 555.6 | 32 | ||||||
| 2400 | 666.7 | 27 | ||||||
| 400-500A | 1400 | 388.9 | 30 | 200 | 980 | 81.9 | 6.5 | 2840 |
| 1860 | 516.7 | 28 | ||||||
| 2240 | 625 | 24 | ||||||
| 400-500B | 1300 | 361.1 | 26 | 160 | 980 | 80.9 | 6.5 | 2710 |
| 1750 | 486.4 | 24 | ||||||
| 2100 | 583.3 | 21 | ||||||
| 500-300 | 1000 | 277.8 | 23 | 110 | 1480 | 81.7 | 6 | 1800 |
| 1200 | 333 | 20 | ||||||
| 1450 | 403 | 16 | ||||||
| 500-315 | 1000 | 277.8 | 34.5 | 160 | 1480 | 80.9 | 6 | 2070 |
| 1200 | 333 | 32 | ||||||
| 1450 | 403 | 27 | ||||||
Parameter table above is only a part of whole. For more, please contact us directly.
4. FAQ:
5. Pictures:
Excellent product made of carefully selected high-quality materials:
Meticulous details & fine appearance:
Safe packing with standard plywood case:
Many kinds of pipeline pumps can be chosen:
