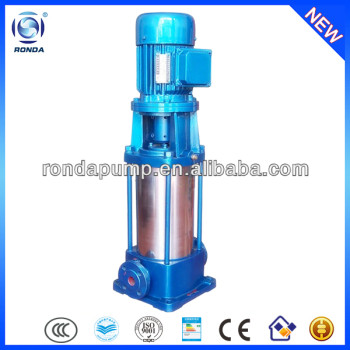

GDL high pressure pipeline centrifugal water pump

FOB Price

US $5000.01 - 40000 set

US $300.040001 - 999999 set

group name: CENTRIFUGAL WATER PUMP

Min Order: 1 set

brand name: RONDA

model: GDL

Nearest port for product export: Ningbo, Shanghai

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, DAF, DES

Acceptable payment methods: T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Thu, 26 Dec 2024 11:20:37 GMT

contact supplier

Paramtents

Theory Centrifugal Pump
Structure Single-stage Pump
Usage Water
Power Electric
Standard or Nonstandard Standard
Fuel Electric
Pressure High Pressure
Application Water

Packging & Delivery

Min Order1 set

Briefing

1.High pressure pipeline centrifugal water pump
2.Energy conversation
3.High quality material
4.Used to deliver water

Detailed

GDL high pressure pipeline centrifugal water pump

1. Introduction:

1. GDL high pressure pipeline centrifugal water pump has the advantages of energy conversation, small floor space, easy installation, stable performance, etc.

2. It gracefully satisfies the needs of water supply in high building, deep well mining or fire-fighting equipment.

3. With 304 stainless steel shell and wear-resistant axle seal, it is no leakage and long service life.

4. It's an ideal pump for the delivery of cold or hot water, or fluid similar to water.

5. Multi-stage pump is with higher head (discharge pressure) than regular single stage one.

6.Widely used in energy industry, metallurgy, water processing, chemical industry, spinning industry, papermaking, restaurant, hotels, bathroom, etc. Also works for low degree corrosive fluid.

2. Product details:

Working Principle:	Centrifugal, Multi-stage
Main applications:	Water
Driver:	Electric motor
Power Specs:	380/415V 3phase; 50hz/60hz
Max.permissible fluid temperature:	80°C(176°F)
Type of connection:	Flange
Installation position:	Horizontal
Casing/Inner parts material:	Cast iron /Cast iron
Shaft seal type:	Mechanical seal
Free passage:	0.1 mm
Maximum drive rating:	90KW(120HP)
Maximum caliber:	150mm(6inch)
Maximum discharge-side pressure:	2.0MPa(20bar)
Maximum head:	200m(656ft)
Flow rate range:	1.4-194m³/h(6.2-853.6US.GPM)

3. Performance data:

Model	Stage	Capacity	Head	Speed	Power	Efficiency	(NPSH)r
Model	Stage	(m³/h)	(m)	(r/min)	(KW)	(%)	(m)
25GDL2-12	3	1.4	36	2900	1.1	23	2.9
	4	2	48		1.1	30	2.9
	5	2.4	60		2	32	2.9
	6		72		2		2.9
	7		84		2		2.9
	8		96		2.2		2.9
	9		108		2		2.9
	10		120		3		2.9
	11		132		3		2.9
	12		144		3		2.9
	13		156		4		2.9
	14		168		4		2.9
	15		180		4		2.9
……
125GDL100-20	2	75	40	2900	18.5	65	4.5
	3	100	60		30	74	4.5
	4	130	80		37	72	4.5
	5		100		45		4.5
	6		120		55		4.5
	7		140		75		4.5
	8		160		75		4.5
	9		180		90		4.5
	10		200		90		4.5
150GDL160-20	2	108	40	2900	30	69	4.5
	3	160	60		37	78	4.5
	4	194	80		55	77	4.5
	5		100		75		4.5
	6		120		75		4.5
	7		140		90		4.5
