Sewage self priming pump
- FOB Price
US $5000.01 - 40000 set
US $60.040001 - 999999 set
- group name
- SEWAGE/SLURRY PUMP
- Min Order
- 1 set
- brand name
- RONDA
- model
- ZW
- Nearest port for product export
- Ningbo, Shanghai
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Thu, 26 Dec 2024 13:58:35 GMT
Paramtents
Theory Centrifugal Pump
Structure Single-stage Pump
Usage Sewage
Power Electric
Standard or Nonstandard Standard
Fuel Electric
Pressure Middle
Application Sewage
Frequency voltage can be changed or not Yes
Duty Heavy
Material by clients Yes
Working condition continuous
Working environment in or out door
Packging & Delivery
-
Min Order1 set
Briefing
Detailed
Self Priming Pump

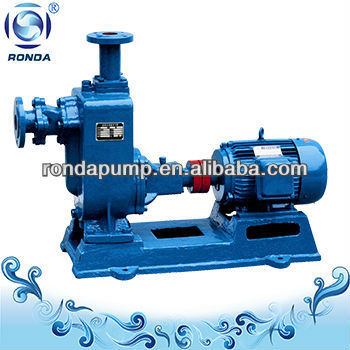

ZW Self-Priming Sewage Pump
ZW self-priming sewage epump is a centrifugal model sewage pump. This pump is widely used in sewage processing and other areas. This pump is easy to maintenance by easy demolition. Open impeller allow big solids and long fibers passed. Solids reaches 60% of caliber and fiber 5 times.
| Working Principle: | Centrifugal, Self-priming |
| Main applications: | Sewage with solids and fiber. |
| Driver: | Electric motor, Diesel Motor |
| Power Specs: | 380/415 V 3phase; 50hz/60hz, etc |
| Max. permissible fluid temperature: | 80°C(speical one reaches 200°C) |
| Type of connection: | Flange |
| Installation position: | Horizontal |
| Casing/Inner parts material: | Cast iron, Stainless steel/Cast iron, Stainless steel |
| Shaft seal type: | Mechanical seal |
| Free passage: | 12-180 mm(max) |
| Maximum gravity: | 1.28 |
| Maximum drive rating: | 55W (73.8hp) |
| Maximum caliber: | 12 inch (300mm) |
| Maximum dischrage head: | 60m |
| Maximum suction head: | 5.5m |
| Flow rate range: | 5-800 m³/h (83.3-13333.3l/m) |
Below specifications is based on 380v/50hz. For any other power standard, pls contact us directly.
| Model | Speed | Power | Capacity | Head | Efficiency | Max dimensions | ||
| r/min | kw | m3/h | m | % | Solids | Fiber length | ||
| 25ZW8-15 | 2900 | 1.5 | 8 | 15 | 55 | 15 | 120 | |
| 32ZW10-20 | 2900 | 2.2 | 10 | 20 | 55 | 20 | 150 | |
| 40ZW20-15 | 2900 | 2.2 | 20 | 15 | 55 | 25 | 220 | |
| 40ZW15-30 | 2900 | 3 | 15 | 30 | 60 | 25 | 230 | |
| 50ZW10-20 | 2900 | 2.2 | 10 | 20 | 58 | 30 | 230 | |
| 50ZW15-30 | 2900 | 3 | 15 | 30 | 60 | 30 | 250 | |
| 65ZW30-18 | 1450 | 4 | 30 | 18 | 60 | 40 | 380 | |
| 65ZW20-30 | 2900 | 5.5 | 20 | 30 | 60 | 40 | 350 | |
| 65ZW25-40 | 2900 | 25 | 40 | 55 | 40 | 40 | 380 | |
| 80ZW40-16 | 1450 | 4 | 40 | 16 | 62 | 48 | 400 | |
| 80ZW65-25 | 2900 | 7.5 | 65 | 25 | 62 | 48 | 400 | |
| 80ZW80-35 | 2900 | 15 | 80 | 35 | 62 | 48 | 400 | |
| 80ZW50-60 | 2900 | 22 | 50 | 60 | 55 | 48 | 400 | |
| 100ZW100-15 | 1450 | 7.5 | 100 | 15 | 65 | 60 | 500 | |
| 100ZW80-20 | 1450 | 7.5 | 80 | 20 | 65 | 60 | 500 | |
| 100ZW100-30 | 2900 | 22 | 100 | 30 | 60 | 60 | 450 | |
| 100ZW80-60 | 2900 | 37 | 80 | 60 | 58 | 60 | 450 | |
| 100ZW80-80 | 2900 | 45 | 80 | 80 | 55 | 60 | 450 | |
| 125ZW150-18 | 1450 | 15 | 150 | 18 | 60 | 80 | 600 | |
| 150ZW200-15 | 1450 | 15 | 200 | 15 | 63 | 90 | 750 | |
| 150ZW400-20 | 2900 | 55 | 400 | 20 | 60 | 90 | 750 | |
| 200ZW300-18 | 1450 | 37 | 300 | 18 | 65 | 120 | 1000 | |
| 200ZW400-22 | 1450 | 55 | 400 | 22 | 68 | 150 | 1200 | |
