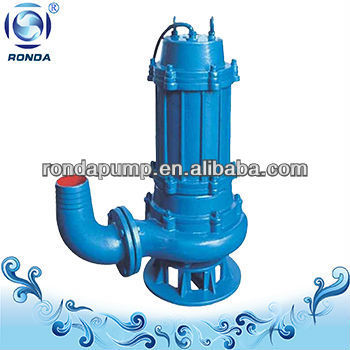

High efficiency submersible sewage pump

FOB Price

US $5000.01 - 40000 set

US $30.040001 - 999999 set

group name: SEWAGE/SLURRY PUMP

Min Order: 1 set

brand name: RONDA

model: QW

Nearest port for product export: Ningbo, Shanghai

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, DAF, DES

Acceptable payment methods: T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Thu, 26 Dec 2024 13:55:03 GMT

contact supplier

Paramtents

Theory Centrifugal Pump
Structure Single-stage Pump
Usage Dirty water
Power Electric
Standard or Nonstandard Standard
Fuel Electric
Pressure Middle
Application Submersible
Frequency, voltage can be changed or not Yes
Working condition continuous
Duty Heavy
Material by clients Yes
Working environment in or out door

Packging & Delivery

Min Order1 set

Briefing

Submersible sewage pump is most common sewage pump.This pump is widely used in dirty water processing.

Detailed

Submersible sewage pump QW series is the most common submersible sewage pump. QWP is stainless steel model. This pump has good sewage processing ability. Whole pump submerged. High efficiency. Big solids easy to pass and non clog. Solids size may reach 50% of the caliber and fiber 5 times. Best mechanical seal for 8000 hours continuous working with high efficiency.

Working Principle:	Whole submerged. Vertical
Main applications:	Sewage
Driver:	Electric motor
Power Specs:	380/415 V 3phase; 50hz/60hz
Max. permissible fluid temperature:	80°C
Type of connection:	Flange
Installation position:	Vertical
Casing/Inner parts material:	Cast iron, Stainless steel/Cast iron, Stainless steel
Shaft seal type:	Mechanical seal
Free passage:	50% of caliber
Maximum gravity:	1.28
Maximum drive rating:	280kW (376hp)
Maximum caliber:	20 inch (500mm)
Maximum dischrage head:	35m
Flow rate range:	7-2650 m³/h (117-44167 l/m)

Below specifications is based on 380v/50hz and only part of whole, for any other standard, pls contact us.

Model	Caliber	Capacity	Head	Power	Speed	Efficiency
Model	mm	m3/h	m	kw	rpm	%
25-8-22-1.1	25	8	22	1.1	2825	38.5
32-12-15-1.1	32	12	15	1.1	2825	40
40-15-15-1.5	40	15	15	1.5	2840	45.1
40-15-30-2.2	40	15	30	2.2	2840	48
50-20-7-0.75	50	20	7	0.75	1390	54
50-10-10-0.75	50	10	10	0.75	1390	56
50-20-15-1.5	50	20	15	1.5	2840	55
50-15-25-2.2	50	15	25	2.2	2840	56
50-18-30-3	50	18	30	3	2880	58
50-25-32-5.5	50	25	32	5.5	2900	53
50-20-40-7.5	50	20	40	7.5	2900	55
65-25-15-2.2	65	25	15	2.2	2840	52
65-37-13-3	65	37	13	3	2880	55
65-25-30-4	65	25	30	4	2890	58
65-30-40-7.5	65	30	40	7.5	2900	56
65-35-50-11	65	35	50	11	2930	60
65-35-60-15	65	35	60	15	2930	63
80-40-7-2.2	80	40	7	2.2	1420	52
80-43-13-3	80	43	13	3	2880	50
80-40-15-4	80	40	15	4	2890	57
80-65-25-7.5	80	65	25	7.5	2900	56
100-80-10-4	100	80	10	4	1440	62
100-100-10-5.5	100	110	10	5.5	1440	66


125-130-15-11	125	130	15	11	1460	62
125-130-20-15	125	130	20	15	1460	63
150-145-9-7.5	150	145	9	7.5	1440	63
150-180-15-15	150	180	15	15	1460	65
150-180-20-18.5	150	180	20	18.5	1470	75
150-180-25-22	150	180	25	22	1470	76
150-130-30-22	150	130	30	22	1470	75
150-180-30-30	150	180	30	30	1470	73
150-200-30-37	150	200	30	37	1480	70
200-300-7-11	200	300	7	11	970	73

200-400-30-55	200	400	30	55	1480	70
250-600-9-30	200	600	9	30	980	74
250-600-12-37	250	600	12	37	1480	78
250-600-15-45	250	600	15	45	1480	75
250-600-20-55	250	600	20	55	1480	73
250-600-25-75	250	600	25	75	1480	73
300-800-12-45	300	800	12	45	980	76

300-1000-25-110	300	950	25	110	980	82
350-1100-10-55	350	1000	10	55	980	84.5
350-1500-15-90	350	1500	15	90	980	82.5
350-1200-18-90	350	1200	18	90	980	83.1
350-1100-28-132	350	1100	28	132	740	83.2
350-1000-36-160	350	1000	36	160	740	78.5
400-1500-10-75	400	1500	10	75	980	82.1
400-2000-15-132	400	2000	15	132	740	85.5
400-1700-22-160	400	1700	22	160	740	82.1
400-1500-26-160	400	1500	26	160	740	83.5
400-1700-30-200	400	1700	30	200	740	83.5
400-1800-32-250	400	1800	32	250	740	82.1
500-2500-10-110	500	2500	10	110	740	82
500-2600-15-160	500	2600	15	160	740	83
500-2400-22-220	500	2400	22	220	740	84
500-2600-24-250	500	2600	24	250	740	82
