ZW heavy duty electric self-priming mobile water pumps
- FOB Price
US $1775.01 - 40000 set
US $90.040001 - 999999 set
- group name
- SEWAGE/SLURRY PUMP
- Min Order
- 1 set
- brand name
- RONDA
- model
- ZW
- Nearest port for product export
- Ningbo, Shanghai
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Fri, 27 Dec 2024 02:33:37 GMT
Paramtents
Theory Centrifugal Pump
Structure Centrifugal
Usage Sewage
Power Electric
Standard or Nonstandard Standard
Fuel Diesel Electric
Pressure Low Pressure
Application Sewage
Packging & Delivery
-
Min Order1 set
Briefing
2.Non-clog
3.Open impeller
4.High efficiency and stable performance
Detailed
ZW heavy duty electric self-priming mobile water pumps
1. Introduction:
1. ZW heavy duty electric self-priming mobile water pumps is special designed for sewage in waste water transfer and treatment.
2. Compared with the same domestic products, this pump features a simple structure, good self-suction performance.
3. The unique structure of open impeller makes sure the free pass of solids in sewage with max size of 60% of outlet DN and fiber 150% of impeller diameter.
4. It is an optimal choice of trash pump at home to handle solid particles, fiber, paste, mixed or suspended mediums etc.
2. Products details:
| Working Principle: | Centrifugal, Self-priming |
| Main applications: | Sewage with slilds |
| Driver: | Electric motor, diesel engine |
| Power Specs: | 380/415 V 3phase; 50hz/60hz |
| Max.permissible fluid temperature: | 80°C(176°F) |
| Type of connection: | Flange |
| Installation position: | Horizontal |
| Casing/Inner parts material: | Cast iron, Stainless steel/Cast iron, Stainless steel |
| Shaft seal type: | Mechanical seal |
| Maximum grain diameter: | 15-170mm |
| Maximum fiber length: | 120-2000mm |
| Maximum viscosity: | 1×104C.S.T |
| Maximum drive rating: | 55KW(75HP) |
| Maximum caliber: | 300mm(12nch) |
| Maximum discharge-side pressure: | 0.8MPa(8bar) |
| Maximum head: | 80m(262.4ft) |
| Flow rate range: | 8-800m3/h(35.2-3520US.GPM) |
3. Performance data:
| Model | Capacity | Power | Head | Speed | Suction | Max grain diameter | Max fiber length | Pressure |
| (m3/h) | (KW) | (m) | (r/min) | (m) | (mm) | (mm) | (MPa) | |
| 25ZW8-15 | 8 | 1.5 | 15 | 2900 | 5.5 | 15 | 120 | 0.1-0.18 |
| 32ZW10-20 | 10 | 2.2 | 20 | 2900 | 5.5 | 20 | 150 | 0.15-0.25 |
| 40ZW20-15 | 20 | 2.2 | 15 | 2900 | 5.5 | 25 | 230 | 0.1-0.18 |
| 40ZW15-30 | 15 | 3 | 30 | 2900 | 5.5 | 25 | 230 | 0.24-0.32 |
| 50ZW10-20 | 10 | 2.2 | 20 | 2900 | 5.5 | 30 | 250 | 0.15-0.25 |
| 50ZW20-15 | 20 | 2.2 | 15 | 2900 | 5.5 | 30 | 250 | 0.1-0.18 |
| 50ZW15-30 | 15 | 3 | 30 | 2900 | 5.5 | 30 | 250 | 0.24-0.32 |
| 65ZW30-18 | 30 | 4 | 18 | 2900 | 5.5 | 40 | 380 | 0.13-0.20 |
| 65ZW20-30 | 20 | 5.5 | 30 | 2900 | 5.5 | 40 | 380 | 0.24-0.32 |
| 65ZW25-40 | 25 | 7.5 | 40 | 2900 | 5.5 | 40 | 380 | 0.32-0.42 |
| 80ZW40-16(2) | 40 | 4 | 16 | 2900 | 5.5 | 50 | 400 | 0.11-0.18 |
| 80ZW40-16(4) | 40 | 4 | 16 | 1450 | 5.5 | 50 | 400 | 0.1-0.18 |
| 80ZW65-25 | 65 | 7.5 | 25 | 2900 | 5.5 | 50 | 400 | 0.18-0.28 |
| 80ZW80-35 | 80 | 15 | 35 | 2900 | 5.5 | 50 | 400 | 0.24-0.37 |
| 80ZW80-45 | 80 | 22 | 45 | 2900 | 5.5 | 50 | 400 | 0.38-0.48 |
| 80ZW50-60 | 50 | 22 | 60 | 2900 | 5.5 | 50 | 400 | 0.55-0.65 |
| 100ZW100-15 | 100 | 7.5 | 15 | 1450 | 5.5 | 60 | 500 | 0.1-0.18 |
| 100ZW80-20 | 80 | 7.5 | 20 | 1450 | 5.5 | 60 | 500 | 0.15-0.25 |
| 100ZW100-20 | 100 | 11 | 20 | 1450 | 5.5 | 60 | 500 | 0.15-0.25 |
| 100ZW100-30 | 100 | 22 | 30 | 2900 | 5.5 | 60 | 500 | 0.24-0.32 |
| 100ZW80-60 | 80 | 37 | 60 | 2900 | 5.5 | 60 | 500 | 0.55-0.65 |
| I00ZW80-80 | 80 | 45 | 80 | 2900 | 5.5 | 60 | 500 | 0.75-0.82 |
| 125ZW120-20 | 120 | 15 | 20 | 1450 | 5.5 | 80 | 750 | 0.13-0.22 |
| 150W200-15 | 200 | 15 | 15 | 1450 | 5.5 | 80 | 750 | 0.1-0.18 |
| 150ZW200-20 | 200 | 22 | 20 | 1450 | 5 | 80 | 750 | 0.15-0.25 |
| 150ZW200-28 | 200 | 30 | 28 | 1450 | 5 | 80 | 750 | 0.23-0.30 |
| 150ZW180-40 | 180 | 55 | 40 | 1450 | 5 | 80 | 750 | 0.32-0.42 |
| 200ZW280-14 | 280 | 22 | 14 | 1450 | 5 | 120 | 1000 | 0.1-0.17 |
| 200ZW300-18 | 300 | 37 | 18 | 1450 | 5 | 120 | 1000 | 0.13-0.20 |
| 200ZW300-25 | 300 | 45 | 25 | 1450 | 5 | 120 | 1000 | 0.18-0.28 |
| 200ZW280-28 | 280 | 55 | 28 | 1450 | 5 | 120 | 1000 | 0.21-0.31 |
| 250ZW400-22 | 400 | 55 | 22 | 1450 | 4.5 | 150 | 1600 | 0.17-0.25 |
| 300ZW800-14 | 800 | 55 | 14 | 1450 | 4.5 | 170 | 2000 | 0.1-0.17 |
4. FAQ:
5. Pictures:

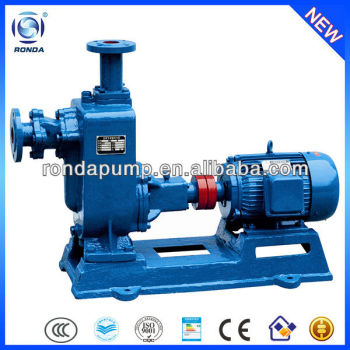

Excellent product made of carefully selected high-quality materials:
Safe packing with standard plywood case:
