ZW standard specification of centrifugal non clogging self priming sewage pumps
- FOB Price
US $1775.01 - 40000 set
US $90.040001 - 999999 set
- group name
- SEWAGE/SLURRY PUMP
- Min Order
- 1 set
- brand name
- RONDA
- model
- ZW
- Nearest port for product export
- Ningbo, Shanghai
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Fri, 27 Dec 2024 02:35:03 GMT
Paramtents
Theory Centrifugal Pump
Structure Centrifugal
Usage Sewage
Power Electric
Standard or Nonstandard Standard
Fuel Diesel Electric
Pressure Low Pressure
Application Sewage
Packging & Delivery
-
Min Order1 set
Briefing
2.Open impeller
3.High efficiency
Detailed

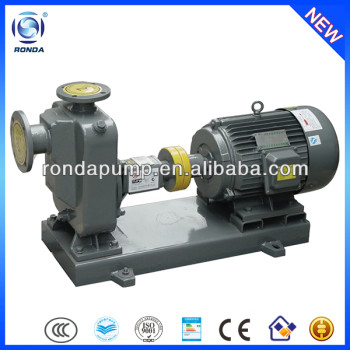

ZW standard specification of centrifugal non clogging self priming sewage pumps
1. Introduction:
1. ZW standard specification of centrifugal non clogging self priming sewage pumps is special designed for sewage in waste water transfer and treatment.
2. Compared with the same domestic products, this pump features a simple structure, good self-suction performance.
3. The unique structure of open impeller makes sure the free pass of solids in sewage with max size of 60% of outlet DN and fiber 150% of im peller diameter.
4. The pump is widely applicable for the lines of urban discharge projects, light industry, papermaking, textile, foodstuff, chemicals, electric power, petroleum, mines, aquiculture and so on.
2. Products details:
| Working Principle: | Centrifugal, Self-priming |
| Main applications: | Sewage with slilds |
| Driver: | Electric motor, diesel engine |
| Power Specs: | 380/415 V 3phase; 50hz/60hz |
| Max.permissible fluid temperature: | 80°C(176°F) |
| Type of connection: | Flange |
| Installation position: | Horizontal |
| Casing/Inner parts material: | Cast iron, Stainless steel/Cast iron, Stainless steel |
| Shaft seal type: | Mechanical seal |
| Maximum grain diameter: | 15-170mm |
| Maximum fiber length: | 120-2000mm |
| Maximum viscosity: | 1×104C.S.T |
| Maximum drive rating: | 55KW(75HP) |
| Maximum caliber: | 300mm(12nch) |
| Maximum discharge-side pressure: | 0.8MPa(8bar) |
| Maximum head: | 80m(262.4ft) |
| Flow rate range: | 8-800m3/h(35.2-3520US.GPM) |
3. Performance data:
| Model | Capacity | Power | Head | Speed | Suction | Max grain diameter | Max fiber length | Pressure |
| (m3/h) | (KW) | (m) | (r/min) | (m) | (mm) | (mm) | (MPa) | |
| 25ZW8-15 | 8 | 1.5 | 15 | 2900 | 5.5 | 15 | 120 | 0.1-0.18 |
| 32ZW10-20 | 10 | 2.2 | 20 | 2900 | 5.5 | 20 | 150 | 0.15-0.25 |
| 40ZW20-15 | 20 | 2.2 | 15 | 2900 | 5.5 | 25 | 230 | 0.1-0.18 |
| 40ZW15-30 | 15 | 3 | 30 | 2900 | 5.5 | 25 | 230 | 0.24-0.32 |
| 50ZW10-20 | 10 | 2.2 | 20 | 2900 | 5.5 | 30 | 250 | 0.15-0.25 |
| 50ZW20-15 | 20 | 2.2 | 15 | 2900 | 5.5 | 30 | 250 | 0.1-0.18 |
| 50ZW15-30 | 15 | 3 | 30 | 2900 | 5.5 | 30 | 250 | 0.24-0.32 |
| 65ZW30-18 | 30 | 4 | 18 | 2900 | 5.5 | 40 | 380 | 0.13-0.20 |
| 65ZW20-30 | 20 | 5.5 | 30 | 2900 | 5.5 | 40 | 380 | 0.24-0.32 |
| 65ZW25-40 | 25 | 7.5 | 40 | 2900 | 5.5 | 40 | 380 | 0.32-0.42 |
| 80ZW40-16(2) | 40 | 4 | 16 | 2900 | 5.5 | 50 | 400 | 0.11-0.18 |
| 80ZW40-16(4) | 40 | 4 | 16 | 1450 | 5.5 | 50 | 400 | 0.1-0.18 |
| 80ZW65-25 | 65 | 7.5 | 25 | 2900 | 5.5 | 50 | 400 | 0.18-0.28 |
| 80ZW80-35 | 80 | 15 | 35 | 2900 | 5.5 | 50 | 400 | 0.24-0.37 |
| 80ZW80-45 | 80 | 22 | 45 | 2900 | 5.5 | 50 | 400 | 0.38-0.48 |
| 80ZW50-60 | 50 | 22 | 60 | 2900 | 5.5 | 50 | 400 | 0.55-0.65 |
| 100ZW100-15 | 100 | 7.5 | 15 | 1450 | 5.5 | 60 | 500 | 0.1-0.18 |
| 100ZW80-20 | 80 | 7.5 | 20 | 1450 | 5.5 | 60 | 500 | 0.15-0.25 |
| 100ZW100-20 | 100 | 11 | 20 | 1450 | 5.5 | 60 | 500 | 0.15-0.25 |
| 100ZW100-30 | 100 | 22 | 30 | 2900 | 5.5 | 60 | 500 | 0.24-0.32 |
| 100ZW80-60 | 80 | 37 | 60 | 2900 | 5.5 | 60 | 500 | 0.55-0.65 |
| I00ZW80-80 | 80 | 45 | 80 | 2900 | 5.5 | 60 | 500 | 0.75-0.82 |
| 125ZW120-20 | 120 | 15 | 20 | 1450 | 5.5 | 80 | 750 | 0.13-0.22 |
| 150W200-15 | 200 | 15 | 15 | 1450 | 5.5 | 80 | 750 | 0.1-0.18 |
| 150ZW200-20 | 200 | 22 | 20 | 1450 | 5 | 80 | 750 | 0.15-0.25 |
| 150ZW200-28 | 200 | 30 | 28 | 1450 | 5 | 80 | 750 | 0.23-0.30 |
| 150ZW180-40 | 180 | 55 | 40 | 1450 | 5 | 80 | 750 | 0.32-0.42 |
| 200ZW280-14 | 280 | 22 | 14 | 1450 | 5 | 120 | 1000 | 0.1-0.17 |
| 200ZW300-18 | 300 | 37 | 18 | 1450 | 5 | 120 | 1000 | 0.13-0.20 |
| 200ZW300-25 | 300 | 45 | 25 | 1450 | 5 | 120 | 1000 | 0.18-0.28 |
| 200ZW280-28 | 280 | 55 | 28 | 1450 | 5 | 120 | 1000 | 0.21-0.31 |
| 250ZW400-22 | 400 | 55 | 22 | 1450 | 4.5 | 150 | 1600 | 0.17-0.25 |
| 300ZW800-14 | 800 | 55 | 14 | 1450 | 4.5 | 170 | 2000 | 0.1-0.17 |
4. FAQ:
5. Pictures:
Excellent product made of carefully selected high-quality materials:
