JYWQ JPWQ atuo-stirring submersible sewage pump

FOB Price

US $1750.01 - 40000 set

US $180.040001 - 999999 set

group name: SEWAGE/SLURRY PUMP

Min Order: 1 set

brand name: RONDA

model: JYWQ JPWQ

Nearest port for product export: Ningbo, Shanghai

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, DAF, DES

Acceptable payment methods: T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Fri, 27 Dec 2024 02:27:02 GMT

contact supplier

Paramtents

Theory Centrifugal Pump
Structure Centrifugal
Usage Sewage
Power Electric
Standard or Nonstandard Standard
Fuel Electric
Pressure Low Pressure
Application Sewage

Packging & Delivery

Min Order1 set

Briefing

1.Atuo-stirring submersible sewage pump
2.Non-blocking
3.Wearable sealing
4.Good safety,large passage

Detailed

JYWQ JPWQ atuo-stirring submersible sewage pump

1. Introduction:

1. JYWQ JPWQ atuo-stirring submersible sewage pump have an extra automatic dasher compared with normal submersible sewage pumps.

2. Pump could work for draining sewage, sludge & siltation with strong ability and high efficiency.

3. It has the features of large passage, non-blocking, winding-proof of sewage pumps.

4. It is mainly used to transport sewage, waste water, and city waste water with solid grain and serious long fibrin of municipal works, industrial, construction, hotel, hospital, civil defense, mine.

2. Product details:

Working Principle:	Whole submerget, auto-stirring
Main applications:	Sewage
Driver:	Electric motor
Power Specs:	380/415 V 3phase; 50hz/60hz
Max.permissible fluid temperature:	80°C(176°F)
Type of connection:	Flange
Installation position:	Vertical
Casing/Inner parts material:	Cast iron, Stainless steel
Shaft seal type:	Mechanical sealing
Maximum stirring diameter:	3000mm(120inch)
Maximum drive rating:	55KW(75HP)
Maximum caliber:	250mm(10inch)
Maximum discharge-side pressure:	0.4MPa(4bar)
Maximum head:	40m(131.2ft)
Flow rate range:	8-600m³/h(35.2-2640US.GPM)

3. Performance data:

Model	Outlet	Capacity	Head	Stirring diameter	Speed	Power	Efficiency
Model	(mm)	(m³/h)	(m)	( mm)	(r/min)	(KW)	(%)
40-10-10-1000-0.75	40	10	10	1000	2900	0.75	40
40-8-15-1000-1.1	40	8	15	1000	2900	1.1	40
40-8-20-1000-1.5	40	8	20	1000	2900	1.5	41
40-12-15-1000-1.5	40	12	15	1000	2900	1.5	41
50-12-15-1200-1.5	50	12	15	1200	2900	1.5	48
50-20-7-1200-1.1	50	20	7	1200	2900	1.1	62
50-10-10-1200-1.1	50	10	10	1200	2900	1.1	56
50-15-15-1200-2.2	50	15	15	1200	2900	2.2	51
50-25-10-1200-2.2	50	25	10	1200	2900	2.2	65
50-15-20-1200-2.2	50	15	20	1200	2900	2.2	56
50-20-15-1200-2.2	50	20	15	1200	2900	2.2	56
50-42-9-1200-3	50	42	9	1200	2900	3	56
50-17-25-1200-3	50	17	25	1200	2900	3	56
50-25-22-1200-4	50	25	22	1200	2900	4	62
50-40-15-1400-4	50	40	15	1400	2900	4	70
50-25-32-1600-5.5	50	25	32	1600	2900	5.5	52
50-40-30-1600-7.5	50	40	30	1600	2900	7.5	68
65-25-15-1400-3	65	25	15	1400	2900	3	65
65-37-13-1400-3	65	37	13	1400	2900	3	62
65-25-28-1400-4	65	25	28	1400	2900	4	60
80-40-7-1600-2.2	80	40	7	1600	2900	2.2	54
80-29-8-1600-2.2	80	29	8	1600	2900	2.2	54
80-43-13-1600-4	80	43	13	1600	2900	4	63
80-50-10-1600-3	80	50	10	1600	1450	3	76
80-40-15-1600-4	80	40	15	1600	2900	4	70
80-60-13-1600-4	80	60	13	1600	2900	4	70
80-35-25-1600-5.5	80	35	25	1600	2900	5.5	64
80-50-25-1600-7.5	80	50	25	1600	2900	7.5	70
80-50-30-1600-7.5	80	50	30	1600	2900	7.5	70
100-80-9-2000-4	100	80	9	2000	1450	4	62
100-110-10-2000-5.5	100	110	10	2000	1450	5.5	71
100-70-15-2000-5.5	100	70	15	2000	1450	5.5	71
100-100-15-2000-7.5	100	100	15	2000	1450	7.5	73
100-80-20-2000-7.5	100	80	20	2000	2900	7.5	71
100-50-35-2000-11	100	50	35	2000	2900	11	68
100-70-22-2000-7.5	100	70	22	2000	2900	7.5	70
100-100-22-2000-15	100	100	22	2000	1450	15	61
100-80-30-2000-15	100	80	30	2000	1450	15	67
150-150-10-2000-7.5	150	150	10	2000	1450	7.5	75
150-210-7-2500-7.5	150	210	7	2500	1450	7.5	78
150-250-6-2500-7.5	150	250	6	2500	1450	7.5	79
150-150-15-2500-11	150	150	15	2500	1450	11	79
150-200-10-2500-15	150	200	10	2500	1450	15	73
150-65-3200-18.5	150	65	40	3200	1450	18.5	58
150-180-22-2600-18.5	150	180	22	2600	1450	18.5	75
150-150-26-2600-18.5	150	150	26	2600	1450	18.5	72
150-110-30-2600-18.5	150	110	30	2600	1450	18.5	72
150-300-15-2600-22	150	300	15	2600	1450	22	76
150-130-30-2600-22	150	130	30	2600	1450	22	70
150-100-40-3000-30	150	100	40	3000	1450	30	64
200-300-7-3000-11	200	300	7	3000	1450	11	75
200-250-11-3000-15	200	250	11	3000	1450	15	72
200-300-10-3000-15	200	300	10	3000	1450	15	75
200-250-15-3000-18.5	200	250	15	3000	1450	18.5	72
200-400-10-3000-22	200	400	10	3000	1450	22	75
200-200-20-3000-22	200	200	20	3000	1450	22	73
200-250-22-3000-30	200	250	22	3000	1450	30	73
250-600-7-3000-22	250	600	7	3000	1450	22	78
250-600-9-3000-30	250	600	9	3000	1450	30	78
250-600-12-3000-37	250	600	12	3000	1450	37	80
250-600-15-3000-45	250	600	15	3000	1450	45	81
250-600-20-3000-55	250	600	20	3000	1450	55	81

4. FAQ:

JYWQ JPWQ atuo-stirring submersible sewage pump

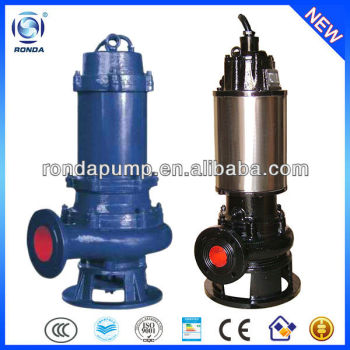

5. Pictures:

Excellent product made of carefully selected high-quality materials:

JYWQ JPWQ atuo-stirring submersible sewage pump

A lot of products in stock:

JYWQ JPWQ atuo-stirring submersible sewage pump
