Vertical Submersible slurry pump NL
- FOB Price
US $2,000.001 - 40,000 set
US $100.0040,001 - 999,999 set
- group name
- SEWAGE/SLURRY PUMP
- Min Order
- 1 set
- brand name
- RONDA
- model
- NL
- Nearest port for product export
- Ningbo, Shanghai
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Mon, 17 Mar 2014 16:42:12 GMT
Paramtents
Theory Centrifugal Pump
Structure Single-stage Pump
Usage Dirty water
Power Electric
Standard or Nonstandard Standard
Fuel Electric
Pressure Middle
Application Submersible
Working environment in or out door
Duty Heavy
Frequency, voltage can be changed or not Yes
Material by clients Yes
Working condition continous
Packging & Delivery
-
Min Order1 set
Briefing
Detailed

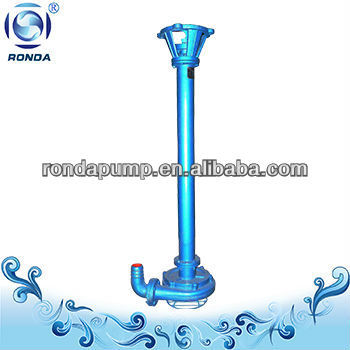

Submersible slurry pump
NL PNL Vertical Slurry Pump
NL and PNL slurry pump is half-submersible type. It can be used in rural or urban to pump slurry with solids. Or can be as a simple water pump or fire pump in rural. The submersible length of pump can be lengthened.
| Working Principle: | Submersible, impeller on the bottom |
| Main applications: | Slurry |
| Driver: | Electric motor |
| Power Specs: | 380/415 V 3phase; 220/240V 1phase; 50hz/60hz,etc |
| Max. permissible fluid temperature: | 80°C |
| Type of connection: | Flange |
| Installation position: | Vertical |
| Casing/Inner parts material: | Cast iron, Stainless steel/Cast iron, Stainless steel |
| Shaft seal type: | Mechanical seal |
| Free passage: | 50% of caliber |
| Maximum gravity: | 1.3 |
| Maximum drive rating: | 22kW (30hp) |
| Maximum caliber: | 6 inch (150mm) |
| Maximum dischrage head: | 20m |
| Flow rate range: | 20-180 m³/h (333.3-3000 l/m) |
Below specifications is based on 380v/50hz and only part of whole, for any other standard, pls contact us.
| Speed | Capacity | Head | Efficiency | Power | Pump length | Pump weight | |
| Model | n | Q | H | n | KW | mm | kg |
| r/min | m3/h | m | % | ||||
| NL50-8 | 1450 | 20-30 | 15-12 | 42 | 1.5 | 1310 | 63 |
| NL50A-8 | |||||||
| NL50-12 | 1450 | 25-38 | 15-13 | 41 | 3 | 1310 | 80 |
| NL50A-12 | |||||||
| NL76-9 | 1450 | 50-70 | 15-14 | 42 | 3 | 1350 | 90 |
| NL76A-9 | |||||||
| NL65-16 | 1450 | 50-60 | 15-15 | 42 | 5.5 | 1430 | 152 |
| NL65A-16 | |||||||
| NL80-12 | 1450 | 80-120 | 15-16 | 56 | 7.5 | 1430 | 145 |
| NL80A-12 | |||||||
| NL100-16 | 1450 | 80-100 | 15-17 | 61 | 15 | 1510 | 270 |
| NL100A-16 | |||||||
| NL150-12 | 1450 | 100-150 | 15-18 | 66 | 18.5 | 1690 | 350 |
| NL150A-12 | |||||||
| NL150-16 | 1450 | 120-180 | 15-19 | 68 | 22 | 1690 | 370 |
| NL150A-16 |
