PW PWF cast iron non clog centrifugal pulp pumps

FOB Price

US $1100.01 - 40000 set

US $200.040001 - 999999 set

group name: SEWAGE/SLURRY PUMP

Min Order: 1 set

brand name: RONDA

model: PW PWF

Nearest port for product export: Ningbo, Shanghai

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, DAF, DES

Acceptable payment methods: T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Thu, 26 Dec 2024 14:22:08 GMT

contact supplier

Paramtents

Theory Centrifugal Pump
Structure Single-stage Pump
Usage Sewage
Power Electric
Standard or Nonstandard Standard
Fuel Electric
Pressure Low Pressure
Application Sewage

Packging & Delivery

Min Order1 set

Briefing

1.Cast iron non clog centrifugal pulp pumps
2.Single-stage,end suction,non clog
3.Double seal
4.Reliable performance

Detailed

PW PWF cast iron non clog centrifugal pulp pumps

1. Introduction:

1. PW PWF cast iron non clog centrifugal pulp pumps is single-stage,end suction, non-clog centrifugal pump.

2. The flow components of this type pumps are made of the high quality wearing resistance grey cast iron or stainless steel.

3. The pump has reliable performance, stable running, non-clogging, easy maintenance, etc .

4. It is used to transport the acid, alkaline and other sewage and slurry. It is widely used in the petroleum, chemical industry, steel, paper making. It is also a pulp pump.

2. Product details:

Working Principle:	Centrifugal, Single-stage
Main applications:	Sewage, pulp
Driver:	Electric motor
Power Specs:	380/415V 3phase; 50hz/60hz
Max.permissible fluid temperature:	80°C(176°F)
Type of connection:	Flange
Installation position:	Horizontal
Casing/Inner parts material:	Grey cast iron,stainless steel / Grey cast iron,stainless steel
Shaft seal type:	Mechanical sealing
Free passage:	20% of caliber diameter
Maximum drive rating:	7.5KW(10HP)
Maximum caliber:	100mm(4inch)
Maximum discharge-side pressure:	0.18MPa(1.8bar)
Maximum head:	18m(59.0ft)
Flow rate range:	10-125m³/h(44-550US.GPM)

3. Performance data:

Model	Capacity		Head	Speed	Power(KW)		Efficiency	(NPSH)r
Model	(m³/h)	(L/s)	(m)	(r/min)	Shaft	Motor	(%)	(m)
50PWF-65	10	2.75	18	1440	2.35	4	20.5	5
	14.5	4	16		2.47		25.5
	19	5.25	14.5		2.58		29
80PWF-100	42	11.7	14	1440	3.5	5.5	45.5	4.5
	56	15.5	13.5		4.1		50
	72	20	12.5		4.5		54.5
100PWF-125	80	22.2	14	1440	5.5	7.5	50	4
	100	27.8	12.5		5.7		60
	125	34.7	10		5.44		62.5

4. FAQ:

PW PWF cast iron non clog centrifugal pulp pumps

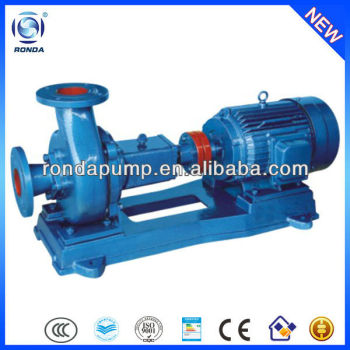

5. Pictures:

Excellent product made of carefully selected high-quality materials:

PW PWF cast iron non clog centrifugal pulp pumps
