RDF/RDFZ high quality stainless steel corrosive resisting chemical pump

FOB Price

US $800.01 - 40000 set

US $200.040001 - 999999 set

group name: CHEMICAL PUMP

Min Order: 1 set

brand name: RONDA

model: RDF/RDFZ

Nearest port for product export: Ningbo, Shanghai

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, DAF, DES

Acceptable payment methods: T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Fri, 27 Dec 2024 00:20:58 GMT

contact supplier

Paramtents

Theory Centrifugal Pump
Structure Single-stage Pump
Usage Water, chemical
Power Electric
Standard or Nonstandard Standard
Fuel Electric
Pressure Low Pressure
Application Water, chemical

Packging & Delivery

Min Order1 set

Briefing

1.High quality stainless steel corrosive resisting chemical pump
2.Compact structure
3.Work for water,chemcial
4.Widely used

Detailed

RDF/RDFZ high quality stainless steel corrosive resisting chemical pump

1. Introduction:

1. RDF/RDFZ high quality stainless steel corrosive resisting chemical pump ’s shaft is sealed with advanced cantilevered mechanical seal.

2. Pump is compact structure, easy to maintain, with low energy consumption and strong corrosion resistance ability.

3. For water or corrosive liquid with small soft particles or fiber (for direct connection ≤90°C/194°F, for the one with bearing bracket ≤ 105°C /221°F).

4. Widely used in the industries of petroleum, chemical, metallurgy, synthetic fibre, pharmaceutical, foodstuff and brewing, etc., as well as for the water supply and discharge in mines, factories and cities.

2. Product details:

Working Principle:	Centrifugal, Monoblock, Self-priming
Main applications:	Water, Chemical
Driver:	Electric motor
Power Specs:	380/415V 3phase; 220/240V 1phase; 50hz/60hz
Max.permissible fluid temperature:	90°C(194°F)/105°C(221°F)
Type of connection:	Flange, Thread
Installation position:	Horizontal
Casing/Inner parts material:	Stainless steel/ Stainless steel
Shaft seal type:	Mechanical seal
Maximum drive rating:	3KW(4HP)
Maximum caliber:	50mm(2inch)
Maximum discharge-side pressure:	0.3MPa(3bar)
Maximum head:	30m(98.4ft)
Flow rate range:	0.8-31m³/h(3.5-136.4US.GPM)

3. Performance data:

Model		Motor	Inlet	Outlet	Efficiency	Head(m)										NPSH
Model		power	(mm)	(mm)	(%)	Capacity(m³/h)										(m)
Three-phase	Single-phase	(KW)
380V/50Hz	220V/50Hz
25RDF-8	25RDF-8B	0.25	25	20	43	H	11	10	8	6	4	3	-	-	-	4.5
25RDF-8	25RDF-8B	0.25	25	20	43	Q	0.8	2.5	4	5.2	6.8	7.5	-	-	-	4.5
40RDF-13	40RDF-13B	0.55	40	25	45	H	15	14	13	12	10	8	6	5	-	3.5
40RDF-13	40RDF-13B	0.55	40	25	45	Q	3.5	5	6	7.5	9.5	11	12.5	13	-	3.5
50RDF-18	50RDF-18B	1.5	50	40	52	H	22	21	20	18	16	14	12	40	-	3.5
50RDF-18	50RDF-18B	1.5	50	40	52	Q	3	5.5	9	13	16	18	20	21	-	3.5
50RDF-22	50RDF-22B	2.2	50	40	55	H	27	26	24	22	20	18	16	14	12	3.5
50RDF-22	50RDF-22B	2.2	50	40	55	Q	7	10.5	16	19	22	23.8	26	27	28.5	3.5
50RDF-25		3	50	40	56	H	30	28	26	25	24	22	20	18	16	3.5
50RDF-25		3	50	40	56	Q	12.5	18.5	22	23	24.5	26	27.5	29.5	31	3.5

Model		Motor	Inlet	Outlet	Efficiency	Head(m)										NPSH
Model		power	(mm)	(mm)	(%)	Capacity(m³/h)										(m)
Three-phase	Single-phase	(KW)
25RDFZ-8	25RDFZ-8B	0.25	25	25	40	H	9	8	7	6	5	4	3	-	-	4
25RDFZ-8	25RDFZ-8B	0.25	25	25	40	Q	2.3	3	3.5	4.3	4.8	5.2	5.5	-	-	4
25RDFZ-13	25RDFZ-13B	0.55	25	25	40	H	16	15	14	13	12	10	8	6	4	5
25RDFZ-13	25RDFZ-13B	0.55	25	25	40	Q	3	4	4.8	6	6.5	7.5	8.5	9.5	10	5
40RDFZ-18	40RDFZ-18B	1.5	40	40	49	H	21	20	19	18	16	14	12	10	8	5
40RDFZ-18	40RDFZ-18B	1.5	40	40	49	Q	6	7	8.5	10	12	14	15.5	17.3	18.5	5
50RDFZ-22		3	50	50	50	H	28	26	25	24	22	20	18	16	14	5
50RDFZ-22		3	50	50	50	Q	8.5	11.5	13.5	14.5	16.5	19	20.5	22	23.8	5

4. FAQ:

RDF/RDFZ high quality stainless steel corrosive resisting chemical pump

5. Pictures:

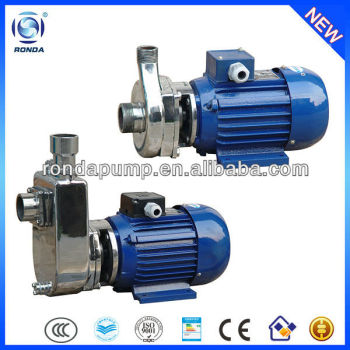

Excellent product made of carefully selected high-quality materials:

RDF/RDFZ high quality stainless steel corrosive resisting chemical pump

Safe packing with standard plywood case:

RDF/RDFZ high quality stainless steel corrosive resisting chemical pump
