FP portable monoblock motor plastic chemical pump
- FOB Price
US $5000.01 - 40000 set
US $100.040001 - 999999 set
- group name
- CHEMICAL PUMP
- Min Order
- 1 set
- brand name
- RONDA
- model
- FP
- Nearest port for product export
- Ningbo, Shanghai
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Sat, 23 Nov 2024 19:04:02 GMT
Paramtents
Theory Centrifugal Pump
Structure Single-stage Pump
Usage Chemical
Power Electric
Standard or Nonstandard Standard
Fuel Electric
Pressure Low Pressure
Application Chemical
Packging & Delivery
-
Min Order1 set
Briefing
2.Transport corrosion liquid
3.High quality material
4.Widely used
Detailed

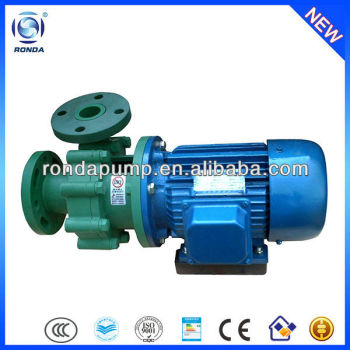

FP portable monoblock motor plastic chemical pump
1. Introduction:
1. FP portable monoblock motor plastic chemical pump is made of RPP polypropylene and ABS engineering plastic. The material for principal axis is stainless steel.
2. It is mainly used for transporting acid, alkali and salt etc corrosion liquid.
3. Products are with small volume, light weight, simple frame, easy use, high efficiency and low price.
4. The pump internal body is smooth, impeller is closed type, pump is with mechanical seals and acid-resistant rubber seal ring. The shaft is made by whole stainless steel for connection sleeve type.
5. Widely used in chemical industry, foodstuff, pharmacy, electroplate, papermaking, environment protection, water treatment etc.
2. Product details:
| Working Principle: | Centrifugal |
| Main applications: | Chemical |
| Driver: | Electric motor |
| Power Specs: | 380/415V 3phase;50hz/60hz |
| Max.permissible fluid temperature: | 80°C(176°F) |
| Type of connection: | Flange |
| Installation position: | Horizontal |
| Casing parts material: | RPP or ABS plastic |
| Shaft seal type: | Mechanical seal |
| Free passage: | 0.1mm |
| Maximum drive rating: | 7.5KW(10HP) |
| Maximum caliber: | 80mm(3inch) |
| Maximum discharge-side pressure: | 0.32MPa(3.2bar) |
| Maximum head: | 32m(105.0ft) |
| Flow rate range: | 3-50m3/h(13.2-220US.GPM) |
3. Performance data:
| Model | Inlet | Outlet | Capacity | Head | Suction | Speed | Voltage | Motor power |
| (mm) | (mm) | (m3/h) | (m) | (m) | (r/min) | (V) | (KW) | |
| FS/FP20-15-100(105) | 20 | 15 | 3 | 7 | 6 | 2900 | 380 | 0.37 |
| FS/FP32-25-100(104) | 32 | 25 | 4 | 7 | 6 | 2900 | 380 | 0.55 |
| FS/FP32-25-105(103) | 32 | 25 | 6.3 | 8 | 6 | 2900 | 380 | 0.75 |
| FS/FP40-32-125(102) | 40 | 32 | 12.5 | 20 | 6 | 2900 | 380 | 1.5 |
| FS/FP50-40-130(101.5) | 50 | 40 | 13 | 22 | 6 | 2900 | 380 | 2.2 |
| FS/FP65-50-150 (101) | 65 | 50 | 25 | 25 | 6 | 2900 | 380 | 4 |
| 50FP-22 | 50 | 40 | 13 | 22 | 6 | 2900 | 380 | 2.2 |
| 65FP-25 | 65 | 50 | 20 | 25 | 6 | 2900 | 380 | 4 |
| 80FP-28 | 80 | 65 | 50 | 28 | 4 | 2900 | 380 | 5.5 |
| 80FP-32 | 80 | 65 | 50 | 32 | 4 | 2900 | 380 | 7.5 |
4. FAQ:
5. Pictures:
Excellent product made of carefully selected high-quality materials:
Meticulous details & fine appearance:
Safe packing with standard plywood case:
