Centrifugal metal lined with PVDF pump

FOB Price

US $5000.01 - 40000 set

US $150.040001 - 999999 set

group name: CHEMICAL PUMP

Min Order: 1 set

brand name: RONDA

model: IHF

Nearest port for product export: Ningbo, Shanghai

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, DAF, DES

Acceptable payment methods: T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Sat, 23 Nov 2024 21:51:56 GMT

contact supplier

Paramtents

Theory Centrifugal Pump
Structure Single-stage Pump
Usage Chemical
Power Electric
Standard or Nonstandard Standard
Fuel Electric
Pressure Middle
Application Chemical
Voltage, frequency can be changed or not Yes
Material by clients Yes
Working environment in or out door
Working condition continuous
Duty Heavy

Packging & Delivery

Min Order1 set

Briefing

PVDF pump IHF is a single stage centrifugal pump made of metal lined rubber. It can pump all sorts of chemical.

Detailed

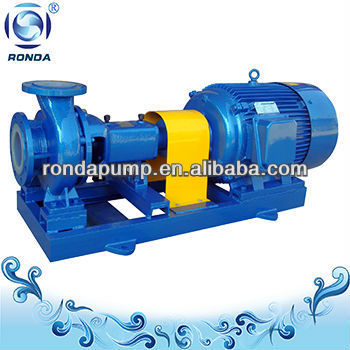

IHF Metal Lined Rubber PVDF Pump

IHF chemical pump is made of metal lined with rubber PTFE, PVDF. The pump is the most common centrifugal chemical pump which being used most widely. High IP and insulation, good efficiency, stable working performance. Generally it works for chemical plants for high corrosion.

Working Principle:	Centrifugal
Main applications:	Chemical
Driver:	Electric motor, diesel motor.
Power Specs:	380/415 V 3phase; 50hz/60hz
Max. permissible fluid temperature:	120°C
Type of connection:	Flange
Installation position:	Horizontal
Casing/Inner parts material:	Stainless Steel lined with PVDF, PTFE/Stainless steel, Bronze
Shaft seal type:	Mechanical seal
Free passage:	1 mm
Maximum viscosity:	5X10³CST
Maximum drive rating:	110kW (148hp)
Maximum caliber:	8 inch (200mm)
Maximum head:	125m
Flow rate range:	6.3-200 m³/h (105-3333l/m)

Below specifications is based on 380v/50hz. For any other power standard, pls contact us.

Model	Speed 2900r/min					Rapid 1450r/min
	Capacity Q	Head H	NPSHr	Efficiency	Power	Capacity Q	Head H	NPSHr	Efficiency	Power
	(m³/h)	(m)	(m)	(%)	(KW)	(m³/h)	(m)	(m)	(%)	(KW)
IHF50-32-125	12.5	20	2	50	1.38	6.3	5	2	45	0.19
IHF50-32-125A	11.4	16.5	2	50	1.02	5.7	4.2	2	44	0.15
IHF50-32-160	12.5	32	2	46	2.37	6.3	8	2	40	0.34
IHF50-32-160A	11.4	26.6	2	45	1.8	5.7	6.7	2	39	0.27
IHF50-32-200	12.5	50	2	39	4.36	6.3	12.5	2	33	0.65
IHF50-32-200A	11.7	43.7	2	38	3.7	5.9	10.9	2	32	0.55
IHF50-32-200B	11	38.7	2	37	3.1	5.5	9.7	2	31	0.47
IHF65-50-125	25	20	2	62	2.2	12.5	5	2	55	0.31
IHF65-50-125A	22.8	16.6	2	61	1.69	11.4	4.2	2	54	0.24
IHF65-50-160	25	32	2	57	3.82	12.5	8	2	51	0.53
IHF65-50-160A	22.8	26.6	2	56	2.95	11.4	6.7	2	50	0.42
IHF65-40-200	25	50	2	52	6.55	12.5	12.5	2	46	0.93
IHF65-40-200A	23.4	43.7	2	51	5.46	11.7	10.9	2	45	0.77
IHF65-40-200B	22	38.7	2	50	4.64	11	9.7	2	44	0.66
IHF85-65-125	50	20	3	68	3.95	25	5	2.5	64	0.53
IHF85-65-125A	45.6	16.6	3	68	3	22.8	4.2	2.5	63	0.41
IHF85-65-160	50	32	2.3	67	6.5	25	8	2	62	0.88
IHF85-65-160A	45.6	26.6	2.3	66	5	22.8	6.7	2	61	0.68
IHF85-65-200	50	50	2.5	63	10.8	25	12.5	2	57	1.49
IHF85-65-200A	46.8	43.7	2.5	62	9	23.4	10.9	2	56	1.24
IHF85-65-200B	44	38.7	2.5	61	7.6	22	9.7	2	55	1.06
IHF100-80-125	100	20	3.2	73	7.46	50	5	2	69	1
IHF100-80-125A	91.2	16.6	3.2	72	5.7	45.6	4.2	2	68	0.8
IHF100-80-160	100	32	3.2	73	11.9	50	8	3.4	69	1.58
IHF100-80-160A	91.2	26.6	3.2	72	9.2	45.6	6.7	3.4	68	1.22
IHF100-65-200	100	50	3.2	72	18.9	50	12.5	2.5	68	2.5
IHF100-65-200A	93.6	43.7	3.2	71	15.7	46.8	10.9	2.5	67	2.1
IHF100-65-200B	88	38.7	3.2	70	13.2	44	9.7	2.5	66	1.76
IHF100-65-250	100	80	4	45	31.6	50	20	4.5	5.5	4.3
IHF125-65-250A	93.5	70	4.5	37	26.2
