12 / 24v dc electric diaphragm plastic water pump
- FOB Price
US $50.01 - 40000 set
US $10.040001 - 999999 set
- group name
- DC PUMP/BOOSTER PUMP
- Min Order
- 1 set
- brand name
- RONDA
- model
- DP-DC
- Nearest port for product export
- Ningbo, Shanghai
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Fri, 27 Dec 2024 16:27:30 GMT
Paramtents
Theory Rotary Pump
Structure Diaphragm Pump
Usage Water, chemical
Power Electric
Standard or Nonstandard Standard
Fuel Electric
Pressure Low Pressure
Application Water, chemical
Packging & Delivery
-
Min Order1 set
Briefing
2.Excellent self-priming ability
3.Convey water and chemical
4.Widely used
Detailed

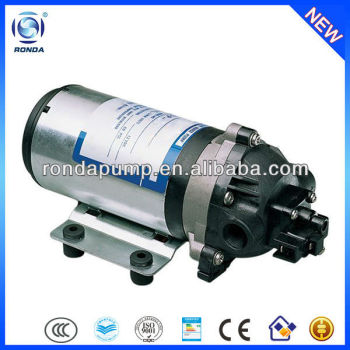

12 / 24v dc electric diaphragm plastic water pump
1. Introduction:
1. 12 / 24v dc electric diaphragm plastic water pump is applied to convey water and chemical, medium temperature can reach 60 °C(140°F).
2. It is low noise, corrosion resistance, high pressure, excellent self-priming 5 m(16.4ft) and easy dismantling.
3. Works with 12V or 24V. Safe low voltage, ensures personal safety.
4. Built-in pressure switch to protect pump running from being damaged and built-in relief valve control the normal operation of the pump.
5. Widely used in household water booster and car wash, sea water desalination for ship, also for water purification system, filter, spray equipment, general industrial equipment, chemical metering, hygienic, pollution control, printing.
2. Product details:
| Working Principle: | Diaphragm, DC12V/24V |
| Main applications: | Chemical, water |
| Max.permissible fluid temperature: | 60°C(140°F) |
| Casing parts material: | Nylon, glass fiber reinforce |
| Maximum current: | 7A |
| Maximum drive rating: | 40W(0.054HP) |
| Maximum speed: | 1300r/min |
| Maximum discharge-side pressure: | 130psi(9bar) |
| Maximum suction: | 5m(16.4ft) |
| Flow rate range: | 1-12L/min(0.26-3.17US.GPM) |
3. Performance data:
| Model | Voltage | Current | Capacity | Speed | Pressure | Suction | Pressure switch | Power | |||||
| (V) | (A) | (L/min) | (US.GPM) | (r/min) | (psi) | (Bar) | (m) | (ft) | (psi) | (Bar) | (W) | (HP) | |
| DP-35 | 24 | 4.8 | 12 | 3.17 | 1300 | 35 | 2.4 | 5 | 16.4 | 35 | 2.4 | 40 | 0.05 |
| 12 | 7 | 9.5 | 2.51 | 1200 | 35 | 2.4 | 5 | 16.4 | 35 | 2.4 | 40 | 0.05 | |
| DP-60 | 24 | 3 | 5 | 1.32 | 1200 | 60 | 4.1 | 5 | 16.4 | 60 | 4.1 | 40 | 0.05 |
| 12 | 6 | 5 | 1.32 | 1200 | 60 | 4.1 | 5 | 16.4 | 60 | 4.1 | 40 | 0.05 | |
| DP-60A | 12 | 3.5 | 3 | 0.79 | 375 | 60 | 4.1 | 5 | 16.4 | - | - | 20 | 0.03 |
| DP-100 | 24 | 1.1 | 1.2 | 0.32 | 375 | 100 | 6.9 | 5 | 16.4 | 100 | 6.9 | 10 | 0.01 |
| DP-100A | 24 | 1.1 | 1.2 | 0.32 | 375 | 100 | 6.9 | 5 | 16.4 | - | - | 10 | 0.01 |
| DP-125 | 24 | 1 | 1 | 0.26 | 375 | 125 | 8.6 | 5 | 16.4 | 125 | 8.6 | 10 | 0.01 |
| DP-130 | 24 | 1.2 | 1.7 | 0.45 | 470 | 130 | 9 | 5 | 16.4 | - | - | 15 | 0.02 |
| 12 | 2.2 | 1.7 | 0.45 | 470 | 130 | 9 | 5 | 16.4 | - | - | 15 | 0.02 | |
| DP-130B | 12 | 2.2 | 1.7 | 0.45 | 470 | 130 | 9 | 5 | 16.4 | 125 | 9 | 15 | 0.02 |
4. FAQ:
5. Pictures:
Excellent product made of carefully selected high-quality materials:
Meticulous details & fine appearance:
Safe packing with paper carton:
Many kinds of models can be chosen:
